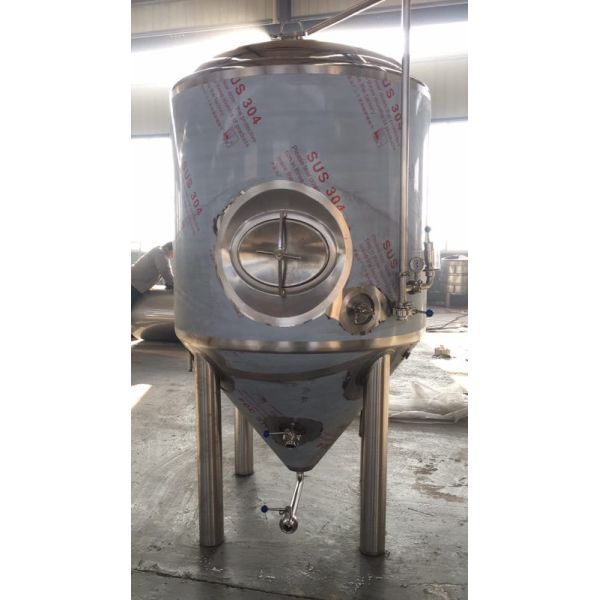

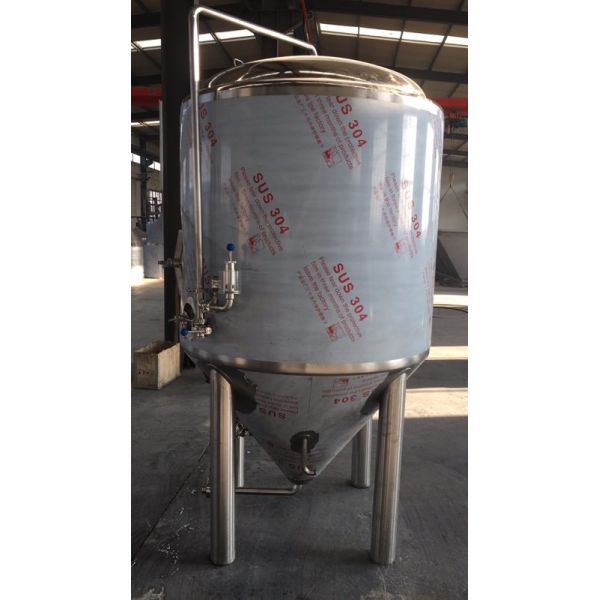

Europe compliance 1000L side manhole fermentation tanks din32 food grade
Europe compliance 1000L side manhole fermentation tanks din32 food grade
Europe compliance 1000L side manhole fermentation tanks din32 food grade
Europe compliance 1000L side manhole fermentation tanks din32 food grade
Specifications
Brand Name :
SLET
Model Number :
1000L
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
3100-5500 USD
Payment Terms :
T/T
Supply Ability :
20 WORKING DAYS AFTER THE DEPOSIT
Delivery Time :
20 WORKING DAYS AFTER THE DEPOSIT
Packaging Details :
Iron frame
Material :
SS304
Connection :
DIN32
Manway :
side
Port :
Dry hopping, temp, sample valve
Guage :
Pressure gauge, bunging valve
Custom :
Level, CARNONATION STONE
Description

din32 food grade Europe compliance 1000L side manhole fermentation tanks

1000l Fermentation tank techncial data sheet

Food grade SS304, din32 couplers

Useful capacity:1000L.(+25% head space)

Inner:SS304.TH=3.0mm Outer:SS304.TH=2.0mm

100% TIG welding with pure argon gas shield

Interior Finish: Overall polishing to 0.6μm without dead corner

Insulation: Polyurethane; TH=80mm

Glycol Jacket for cooling

Dished head and 75 degree cone bottom

Side Manhole: φ330*430mm.

CO2 blow-off arm with butterfly valve

Full sanitary sampling valve

Bunging valve 2 bar on CIP arm

Shockproof pressure gauge on CIP arm

Dry hopping port(φ100mm) with solid end cap

4 completely SUS304 heavy duty legs with leveling pad

Thermo well for high accuracy temperature sensor

Testing pressure 3bar keep 48 hours;

Working pressure 2 bar

Europe compliance 1000L side manhole fermentation tanks din32 food gradeEurope compliance 1000L side manhole fermentation tanks din32 food gradeEurope compliance 1000L side manhole fermentation tanks din32 food gradeEurope compliance 1000L side manhole fermentation tanks din32 food grade

Brewery

Brewery System Capacity / Volume
SL-Home brewery series 30L, 50L,100L pilot/home brewery system
SL-Commercial brewery series 100L--1000L, 3BBL--10BBL pub/restaurant,micro brewery plant
SL-Microbrewery series 200L, 300L, 500L,1000L
MT-Pub, Hotel, Bar Brewery System series 300l, 500L, 600l, 800L,1000l
SL-Large brewery plant 1000L--5000L, 10BBL---40BBL brewery plant
SL-Brewhouse

Two/Three/Four/Five Vessels,

Electric/Stream/ Directly Fire heating source
SL-Fermentation 100L~10000L conical fermenters, dimple plate jacket
SL-Bright Beer Tank/Maturation Tank 100L~10000L serving tanks, BBTs, dimple plate jacket
SL-Turnkey Brewery stainless steel beer kegs, Beer Tower, Bottling & Kegging System, bottle filling System, and etc.
