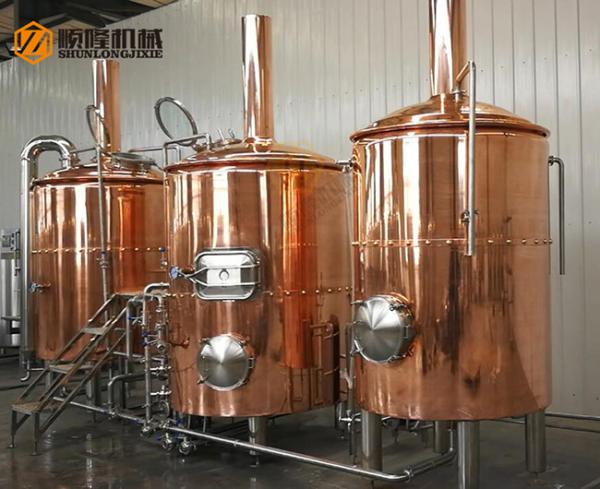

Three Vessles Beer Brewing Kit 2000L Brewhouse With 8 Units Of Fermenters
Three Vessles Beer Brewing Kit 2000L Brewhouse With 8 Units Of Fermenters
Three Vessles Beer Brewing Kit 2000L Brewhouse With 8 Units Of Fermenters
Three Vessles Beer Brewing Kit 2000L Brewhouse With 8 Units Of Fermenters
Three Vessles Beer Brewing Kit 2000L Brewhouse With 8 Units Of Fermenters
Three Vessles Beer Brewing Kit 2000L Brewhouse With 8 Units Of Fermenters
Three Vessles Beer Brewing Kit 2000L Brewhouse With 8 Units Of Fermenters
Three Vessles Beer Brewing Kit 2000L Brewhouse With 8 Units Of Fermenters
Specifications
Brand Name :
SLET
Model Number :
SL-2000
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 110000- 170000 Per set
Payment Terms :
T/T
Supply Ability :
5 sets per month
Delivery Time :
40 working days after the deposit
Packaging Details :
PE paper & iron frame
Material :
SS304 / 316
Heating :
gas / electricity / steam
Control :
automatic / Semi-automatic
Exhausting :
Indoor or outside
Brewhouse :
kettle, lauter, Mash, whirlpool in one unit or 4 seperate

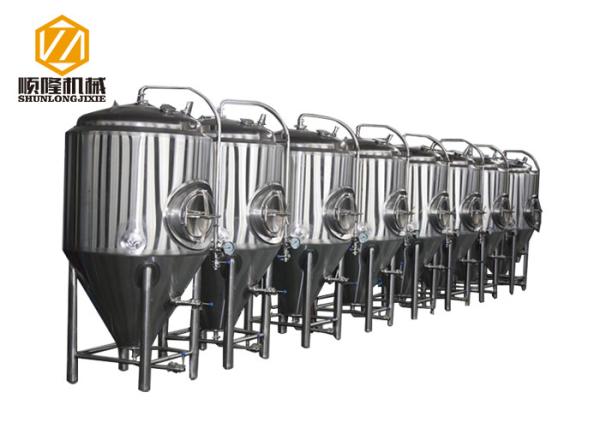

Fermenters :
jacketed and insulated tanks
Inner tank process :
pickling & passivation
Description

three vessles brewing kit 2000L brewhouse with 8 units of fermenters

Product Description
Three Vessles Beer Brewing Kit 2000L Brewhouse With 8 Units Of Fermenters

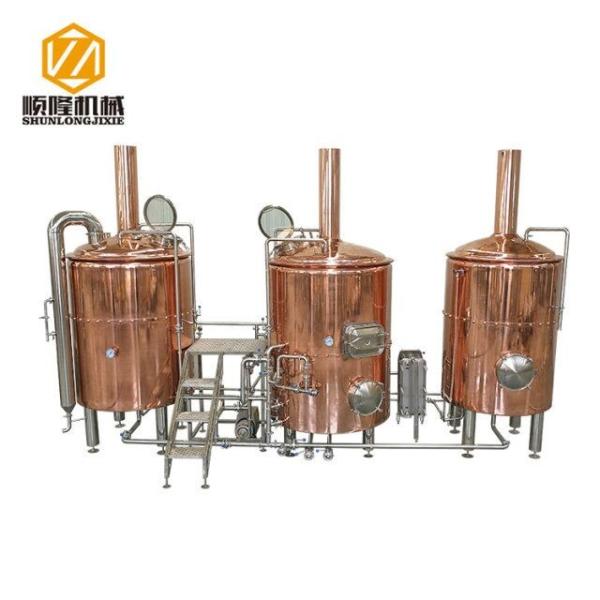

2000L Brewhouse Specification

Cooling way: Ice water belt cooling, two stages cooling.

Cooling media: glycol water or alcohol water.

Structure: Inside and outside are all stainless steel 304 processing. And the inner polished into 0.4µm, stainless steel cooling water jacket, with 2.0mm thickness.

The inner tank thickness 3.0mm, cone bottom 3.0mm.Cladding 2.0mm.

Insulation: Polyurethane-thickness: 100mm.

Equip with: Cone 75° resist compression design, dripping temperature drop; Side manhole: 330*430mm.

Sampling method: 1 piece of aseptic sampling valve.

Quick blind plate design at the bottom, two inlet and outlet, one is 38mm diameter, sewage, another one is 32mm diameter, using for beer outlet.

The cylinder and cone bottom. Cooling media inlet and outlet pipe is stainless steel 304. Mechanical valves, rotary washing spray balls.

Fermentation tank pressure: Design pressure 0.3MPa; Working pressure 0.15Mpa.

Fermentation heat exchange area: 4㎡.

Safety valve:Ф25

Equip with adjusting anchor; 4 support legs add braced.

Cooling control: single tank, single control.

1. Brewhouse: two vessels, three vessels, four vessels brewhouse

2. Heating medium: steam heating

3. Insulation material: rock wool. Insulation thickness: 100mm

4. Mash tank; hydrator, mixer, steam heating jacket

5. Lauter tun: rake, agitator, false bottom, hydrator

6. Brewkettle, steam heating jacket, inner steam heating deivce

7. Whirlpool tun: whirlpool entry

Three Vessles Beer Brewing Kit 2000L Brewhouse With 8 Units Of Fermenters

Product advantages :

1- we support installation and debugging, technical guidance on site

2- engineer will teach how to brewing and running the production line, test the beer’s quaity

3- design drawing for free

4- competitive and low price of raw material

5- high quality of the beer equipment

6- competitive price

7- highly automatic or manual operation

8- material: SS304 or red copper

II Configuration

Item Capacity Material Heating method Mixed mode
2-vessel 100L 304 stailess steel(food grade) Steam &electricity &fire [Mash+Lauter(upper)+Whirlpool(lower)]+Kettle
200L
250L [Mash+Lauter(upper)+HLT(lower)]+Kettle+Whirlpool
500L
3BBL [Mash+Lauter(upper)+Whirlpool(lower)]+Kettle
3.5BBL [Mash+Lauter(upper)+HLT(lower)]+Kettle+Whirlpool
5BBL [Mash+Lauter(upper)+Whirlpool(lower)]+Kettle
7BBL [Mash+Lauter(upper)+HLT(lower)]+Kettle+Whirlpool

Three Vessles Beer Brewing Kit 2000L Brewhouse With 8 Units Of Fermenters

Beer brewing system’s analysis

item SLET-0.1 SLET -0.2 SLET -0.3 SLET -0.5 SLET -1.0 SLET -2.0
Production capacity 100L/day 200L/day 300L/day 500L/day 1000L/day 2000L/day
floor space 15m2 25m2 35m2 50m2 80m2 120m2
Total power 12kw 12kw 12kw 15/36kw 22/72kw 31/144kw
Maximum hourly water consumption 0.2m3/h 0.4m3/h 0.5m3/h 1.0m3/h 1.5m3/h 2.0m3/h
Total water used 0.5m3/d 1.m3/d 1.5m3/d 2.5m3/d 5m3/d 10m3/d
Consumption of malt 20kg 40kg 60kg 100kg 200kg 400kg
Consumption of hops 60g 120g 180g 300g 600g 1.2kg
Yeast 100g/1L 200g/2L 300g/3L 500g/5L 1kg/10L 2kg/20L
Maximum steam 0.017t/hour 0.017t/hour 0.05t/hour 0.10t/hour 0.20t/hour

Shun Long Servie

Pre-sale service:

1. Make the equipment details specifications to customers

2. We can supply the OEM process, according to the drawings, the samples to customized the beer equipment

3. Layout plan in CAD drawings of beer machine.

4. The competitive price and the timely delivery.

After-sale service:

1. Provide the required customs declaration files, timely tracking freight

2. The equipment main configurationgs for 3 years warranty time, such as the valves and so on.

3. Professional engineers for installation, commissioning, maintenance.

4. Directed by executable remote installation(with no experience in beer, equipment installation experience, can also perform operations, please make this clear before custom equipment, we have successful cases)

If you are interested in our machines, please don't hesitate to contact me.

We can meet you what you want, looking forward to your inquiry. Let's go together in the process of cooperation to the good prospects.
