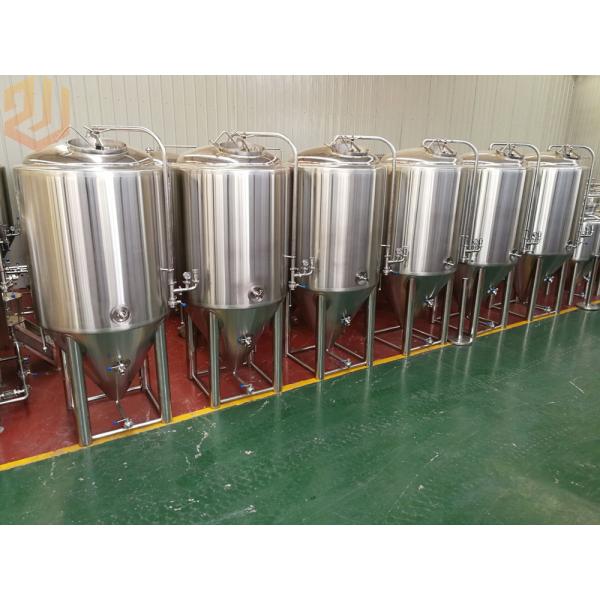

Efficiency Stainless Steel Fermentation Tank Servicing Tank For Micro Brewery , Brewpub
Efficiency Stainless Steel Fermentation Tank Servicing Tank For Micro Brewery , Brewpub
Efficiency Stainless Steel Fermentation Tank Servicing Tank For Micro Brewery , Brewpub
Efficiency Stainless Steel Fermentation Tank Servicing Tank For Micro Brewery , Brewpub
Specifications
Brand Name :
SLET
Model Number :
1000L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 2500- 4500 Per set
Payment Terms :
T/T
Supply Ability :
18 sets per month
Delivery Time :
25 working days after the deposit
Packaging Details :
PE paper & iron frame
Material :
SS304 / 316
Heating :
gas / electricity / steam
Control :
automatic / Semi-automatic
Exhausting :
Steam condenser
Fermenters :
jacketed and insulated tanks
Inner tank process :
pickling & passivation
Description

1000L stainless steel brite tank of carbonation stone servicing tank

Product Description
Output/Brew 1000L
Manhole top / side
Storage time 12-20 days
Temp control temp control gauge
Cooling Source glycol from chiller and glycol tank
L*W*H 1080*1080*2680mm
Working pressure 2 bar
Desigh Pressure 5 Bar

Note: 1hl=100liter; 1Barrel (BBL) =117Liter;


Efficiency Stainless Steel Fermentation Tank Servicing Tank For Micro Brewery , Brewpub

Fermenting system details

1. Inner-jacket is 3.0mm, External-jacket is 2.0mm, dish head is 3.0mm.
2. Equip with Sterile sampling valve, clean and sanitary, do not pollute the beer.
3. Equip with Racking arm, it can taste the beer from different place in the fermentation tanks.
4. Equip with Mechanical relief value, clean and sanitation, It will have some pressure changes as the time went by, and easy to observe.

Product advantages :

1- we support installation and debugging, technical guidance on site

2- engineer will teach how to brewing and running the production line, test the beer’s quaity

3- design drawing for free

4- competitive and low price of raw material

5- high quality of the beer equipment

6- competitive price

7- highly automatic or manual operation

8- material: SS304 or red copper

Efficiency Stainless Steel Fermentation Tank Servicing Tank For Micro Brewery , Brewpub

Fermenter available from 1 Barrel to 100 Barrels with an average 25% Head Space. All tank have a

Dish top , Cylinder body & 60 /70° Cone Bottom . Certified stainless steel material for all tanks,

with 100% TIG welded joints and seams with sanitary interior polish. Dimple Plate jacket for

Glycol cooling & high efficient Polyurethane foam insulated. All tanks use Tri-clamp connections,

are designed for up to 14.7 PSI and tested at 30 PSI. We can custom fabricate any tank to meet

your brewery’s space and height restrictions.

Beer brewing system’s analysis

item SLET-0.1 SLET -0.2 SLET -0.3 SLET -0.5 SLET -1.0 SLET -2.0
Production capacity 100L/day 200L/day 300L/day 500L/day 1000L/day 2000L/day
floor space 15m2 25m2 35m2 50m2 80m2 120m2
Total power 12kw 12kw 12kw 15/36kw 22/72kw 31/144kw
Maximum hourly water consumption 0.2m3/h 0.4m3/h 0.5m3/h 1.0m3/h 1.5m3/h 2.0m3/h
Total water used 0.5m3/d 1.m3/d 1.5m3/d 2.5m3/d 5m3/d 10m3/d
Consumption of malt 20kg 40kg 60kg 100kg 200kg 400kg
Consumption of hops 60g 120g 180g 300g 600g 1.2kg
Yeast 100g/1L 200g/2L 300g/3L 500g/5L 1kg/10L 2kg/20L
Maximum steam 0.017t/hour 0.017t/hour 0.05t/hour 0.10t/hour 0.20t/hour

Efficiency Stainless Steel Fermentation Tank Servicing Tank For Micro Brewery , Brewpub

After-sale service:

1. Provide the required customs declaration files, timely tracking freight

2. The equipment main configurationgs for 3 years warranty time, such as the valves and so on.

3. Professional engineers for installation, commissioning, maintenance.

4. Directed by executable remote installation(with no experience in beer, equipment installation experience, can also perform operations, please make this clear before custom equipment, we have successful cases)
