12HL Large Scale Brewing Equipment 3 Phases Stainless Steel CE Certificated
12HL Large Scale Brewing Equipment 3 Phases Stainless Steel CE Certificated
12HL Large Scale Brewing Equipment 3 Phases Stainless Steel CE Certificated
12HL Large Scale Brewing Equipment 3 Phases Stainless Steel CE Certificated
Specifications
Brand Name :
SLET
Model Number :
SL-1200
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 60,000- 260,000 Per set
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
30 working days after the deposit
Packaging Details :
PE paper & iron frame
Material :
SS304 / 316 / red copper
Heating :
electricity / steam / gas
Control :
Semi-automatic/ automatic
Exhausting :
Indoor or outside
Insulation :
rock wool & pu foam
Capacity :
100l-10, 000l
Description

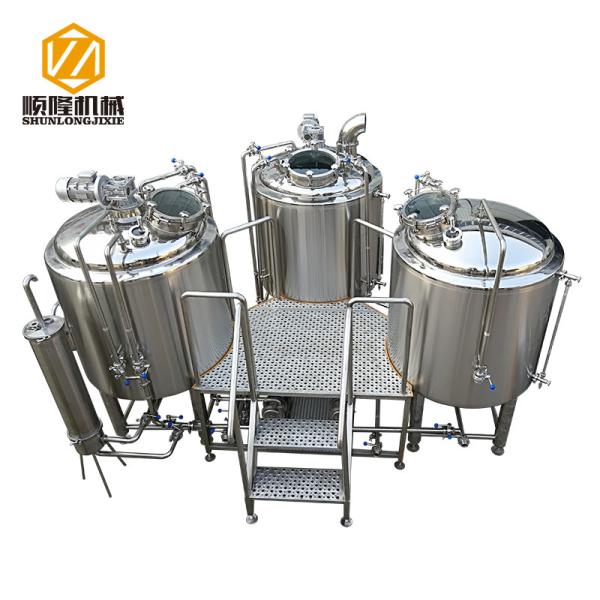

1200l three vessels stainless steel steam large beer brewing equipment with CE

Product Description

The 1200l beer equipment included the Malt miller, 1200l 3 vessel brewhouse unit, 10bbl and 20bbl fermentation tanks, Glycol cooling unit, Controlling unit and CIP cart. Available to brew various of beer, ale, lager, stout, pilson, IPA, malt barley etc.

The brewhouse based on three vessel structure: Mash tun + Lauter tun + kettle/whirlpool tun + HLT. Now both of the Infusion mashing and Decoction mashing are available. And this brewery system also included the Glass manhole, and Glass hydrator. Please learn more details as below.

Output/Brew
1200l beer equipment
Brews/Week
3～20
Output/Week
60～240HL
Area Request
>70M2
Brewmaster
1
Material
Interior Shell: SUS304 TH=3mm
Exterior Shell:SUS304 TH=2mm /red copper
Heating Source
Electric/Steam /Direct fire for optional
Electric Supply
3phase/380(220, 415,440…)v/50 (60)Hz

12HL Large Scale Brewing Equipment 3 Phases Stainless Steel CE Certificated

1200L professional beer equipment

Here is the technical parameter of 1200l brewery, please check for reference.

Beer Brewery System 1200L
Items Equipments Specifications Quantity
Milling System Malt miller 200Kg/H 1
Brewhouse System Mash tun & Lautering tun 1200L 1
Brew kettle & whirlpool 1200L 1
Hot liquid tank 1200L
Plate heat exchanger 10M2 1
Pump 3M³/H 1
Fermentation System Fermentation tank 1200L/2400L 6
Yeast adding tank 50L 1
Wort oxygenator 1
Cooling System Glycol water tank 2000L 1
Refrigerator/Cooling Compressor 5Hp 2
Pump 3M³/H 1
Washing System Alkali tank 100L 1
Sterilization tank 100L 1
Pump 3M³/H 1
Filter System Kieselguhr filter machine 1
Bright beer tank 1200L 1
Bottling System Convey Belt
Bottle Filling Machine
Bottle Capping Machine
Labling Machine
Controlling System Control box Siemens PLC System 1
Spare parts Including pipes, valves, connections, gauges….

12HL Large Scale Brewing Equipment 3 Phases Stainless Steel CE Certificated

Conical fermentation tanks

Fermenters are also called CCT’s (Cylindrical Conical Tanks), FV’s (Fermentation Vessel), primary fermentor or unitanks as they are used both for fermenting and lagering. Fermenting is the process during which the yeast transforms the wort into beer.

Tank Capacity
1200l or 2400l (+25% Head space minimum)
Interior Shell
SUS304 full welded; TH=3mm
Exterior Shell
SUS304 full welded; TH=2mm
Insulation
Polyurethane; TH=80mm
Glycol Jacket
Dimpled plate on cone and side
Head and Bottom
Dished head and 60 degree cone bottom
Sampling valve
Full sanitary perlick style sampling valve
Safe valve
Bunging valve 2 bar on CIP arm
Pressure gauge
Shockproof pressure gauge with two gauges on CIP arm
Beer outlet
Rotating racking arm and port on cone with butterfly valve
Hopping port
Dry hopping port with solid end cap
Leg
4pcs completely SUS304 heavy duty legs with leveling pad and legs support

SHUN LONG service

1. You can enjoy our free consultation service any time
2. You can let us help you plan and design your brewery project if you don't know how to do it quite well
3. You will be free of charge for our debugging the brewery equipment to get it work perfectly
4. You will be trained how to maintain and operate the brew system personally if you are not good at it
5. We provide 36 months complete warrant for main parts and life-time maintenance service;
6. All spare parts and wearing parts are attached with the machinery for free;
8. Professional technical team for design the special beer brewery brewing system and offer various of drawings accordingly.
