5HL Beer Production Equipment Large SS / Copper German Style For IPA
5HL Beer Production Equipment Large SS / Copper German Style For IPA
5HL Beer Production Equipment Large SS / Copper German Style For IPA
5HL Beer Production Equipment Large SS / Copper German Style For IPA
Specifications
Brand Name :
SLET
Model Number :
SL-500
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 75,000-100,000 PER Set
Payment Terms :
T/T
Supply Ability :
30 Sets per Month
Delivery Time :
30 working days after the deposit arrival
Packaging Details :
Iron frame & PE pater
Material :
SS 304
Fermenters :
8-12 sets
Control :
PLC
Heating :
Steam
Description

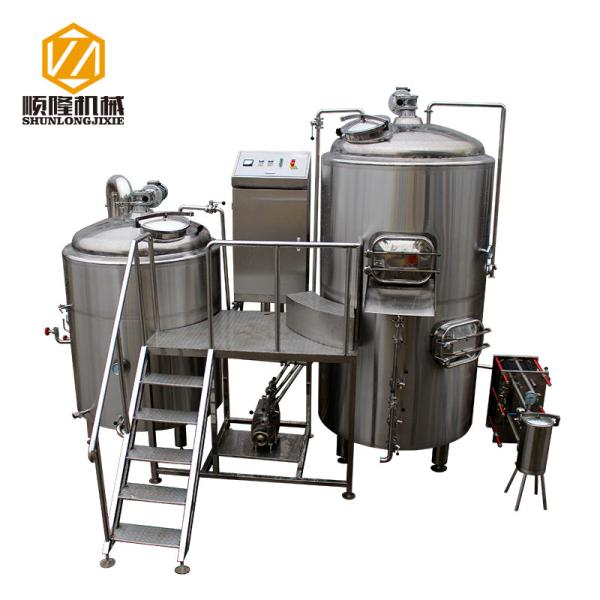

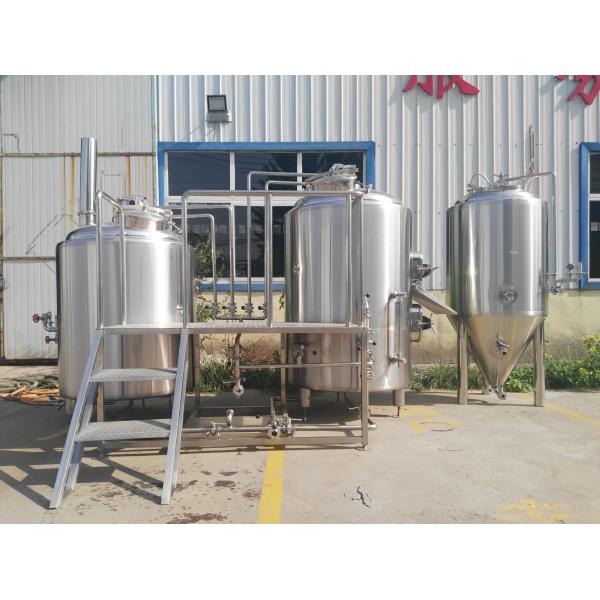

German style stainless steel / red copper beer brewing equipment of 5HL for IPA, Lager

Product details

* CE certificate and UL certificate
All our products can pass CE certificate. If you need, we can also apply the UL certificate for you.

* Powerful technology supporting
Providing drawing of every tank and drawing the layout of the whole project according with
customer’s workshop

* Good abrasion resistance material
Inner-Jacket(SUS304)thickness: 3.0mm
External-Jacket thickness: 2.0mm
Seal head thickness: 3.0mm
* High quality insulation effect
Polyurethane thickness: 80mm
* Beautiful weld and polish technology
All argon gas protection welding. Polishing precision up to Ra0.6µm.
* World’s top brands’ electronic components
For example, we use Siemens PLC and touch screen, Schneider button of circuit breaker, Airtac electromagnetic valves and other pneumatic parts, etc.
* Good aftersales service

Beer brewing plant produced by us is a set of technological equipment for the production of "live" and filtered beer. Brew master make their beer attractive to consumers by unique brewing process and distinctive beer taste. If desired, they can be placed directly in places of consumption of beer: restaurants, pub, bars, hotels, tourist and shopping centers. Interpreter may be faced with polished brass, copper besides stainless steel. Also, the microbrewery is placed behind a glass partition that allows visitors to observe the process of making beer. This is an excellent design solution interior and a powerful marketing tool.

Details In form
Product Name
500L beer machine large micro beer brewing equipment brewery tanks
Appearance
Stainless steel or Copper clading
Color
Mirro SUS, Luxury red copper
Standard
1BBL-100BBL
Thickness of Tanks
3mm for interior shell/2mm for exterior shell
Heating method
Electric/Steam/Direct fire
Inner Polishing Precision
0.6 Micrometer
Plants Type
Turnkey or Customerized


Analysis of the brewery

Model Items SL-0.1 SL-0.2 SL-0.3 SL-0.5 SL-1.0 SL-2.0
Capacity 100L/Day 200L/Day 300L/Day 500L/Day 1000L/Day 2000L/Day
Area Request 15M2 25M2 40M2 50M2 85M2 130M2
Installed Power 10Kw 15Kw 22Kw 35Kw 45/15Kw 70/15Kw
Water Consumption 0.6M3/Day 0.8M3/Day 1M3/Day 1.5M3/Day 3M3/Day 5M3

Shun Long Advantage
1. The unite can meet the wort production requirements of self- made beer bar and can complete the whole process from grinding of raw material, material feeding, saccharification, wort filtration, boiling, settling and cooling to the final oxygenation.
2. The whole equipment are made of high quality stainless steel which meets the international and national hygiene and safety standards.
3. There are two heating methods: steam heating and electrical heating
4. Saccharification filtration tank is equipped with variable frequency mixer which can achieve the exchange of rotating speed from 50r/min and meet the requirements of rotating speed for saccharification mixing and filtration tank mixing.
5. Operation and control are achieved by automatic control or semiautomatic control with computer industrial control system.
6. Input and output of material and self- circulation are connected by sanitation material pump and hose and the cleaning adopts CIP cleaning tanker and hose connection to achieve self-circulation cleaning.
7. Connection type of pipelines for requirements is quick assembly which is convenient for cleaning, maintenance and repair during production.
8. Reasonable design, delicate, process, nice appearance, durable service, easy for operation, repair and maintenance.

Shun Long Service

Pre-service
Our market team can serve you in 24 hours, so please feel free to contact at your convinent.
Our dedicated engineers can supply 2D, 3D drawing for you if you needed.
If you need to inspect our factory, we can book the hotel and make the invitation letter for you.
Our market team with our engineer with more than 10 years experiences together can satisfy you with
any technology problem;
Customize machine can be offered(voltage,material,dimension,heating source and so on)
After-service:
When shippment, we will supply a whole set of parts for backup.
If there is any parts damaged, we are surely can send the part to you in 24 hours.
Main machine is 3 years warranty, auxiliary machine is 12 months warranty,
electrical components is 18 months warranty, life long service.
