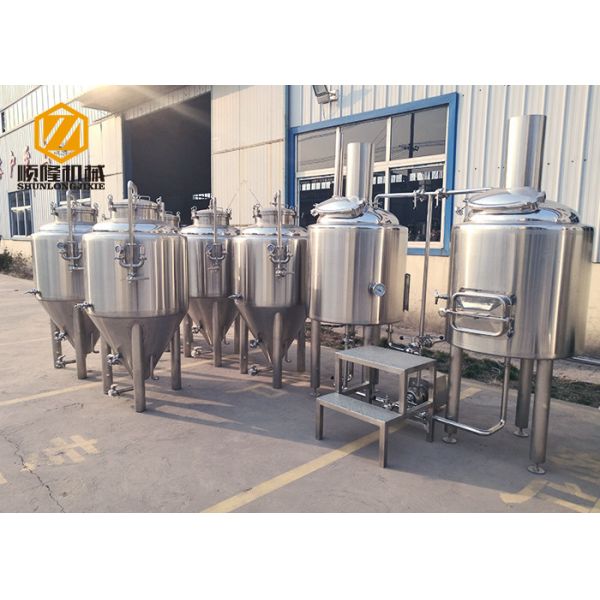

200l Small Stainless steel Brewery Equipment for Brewpub beer brewing system

Product details

• Brewhouse Combination Diversification
• Decoction, infusion, multi-step infusion mashing can be realized.
• Electric, Steam, Gas directly fire heating source for optional
• 15 days free installation and training service offered by profession engineer.
• Mirror polishing and wire drawing SUS 304 for optional, thickness: 3-4mm
• Rational layout, Humanized design and convenient operation

Product characters

• 8-12 fermentation tanks/bright tanks
• malt Miller
• Chiller and Glycol tanks
• CIP Cart
• Control box and UL/CSA/CE Rated Controls and Components
• Complete engineering support and onsite installation
• Mash/lauter tun - grist hydrator, false bottom, rake, sparging
• Kettle/whirlpool tun – steam/ electric/ direct gas fired heating system, tangential entry
• Pumps with ABB motor
• integrated stainless steel 304 working platform
• Plate heat exchanger – 304 or 316 plates
• wort grant, hops back
• Pipelines and valves
• Hot liquor tanks and pumps

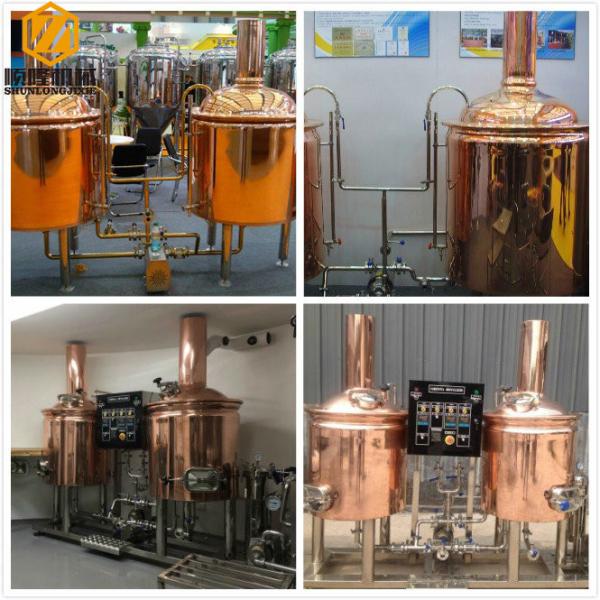

300L CONFIGURATION

1. 300L Brewhouse Unit
Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
Hot water tank and cold water tank for optional in special combinations
Infusion or decoction brewing methods are designed exactly
Stainless steel or copper cladding are popular
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
All pipings and fittings

2. Malt Milling Unit
Particle adjustable rolling crusher
Flexible or steel auger for optional

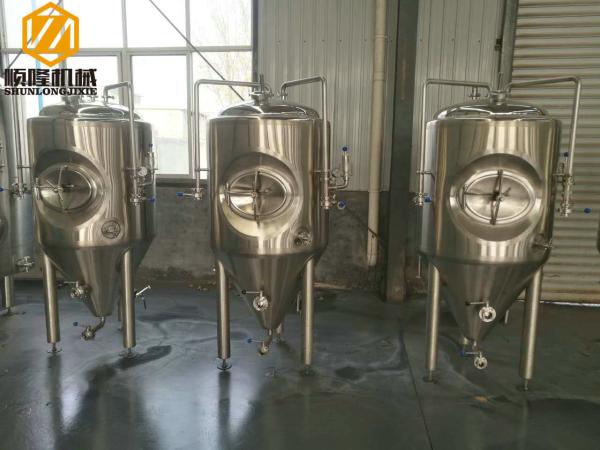

3. 300L or 600L Fermentation Unit
Standard stainless steel conical cylindrical fermentation tanks
Single size as brewhouse is common used in restaurant
Tanks quantity is exactly calculated by fermentation cycle for various beers
All manhole, valves, pressure gauges, fittings etc are included

4. Beer Filter Unit(optional)
In restaurant or bar, beers are always served as craft beer without filtration

5. 300L or 600L Bright Tank Unit
Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation
Single size as fermenter is common used in restaurant or bar
Tanks quantity is exactly calculated for various beers and the function
All manhole, valves, stone, gauges, fittings etc are included

6. Cooling Unit
Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
Efficiency chillers or refrigerators with fryonto supply cooling energy
Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
All pipes, fitting, insulation materials are included

7. Controlling Unit
Electrical controlling cabinet with temperature, on-off controlling for brewhouse
Electrical controlling cabinet with temperature, on-off controlling for cooling parts
Temperature controller, thermocouple, solenoid valves etc are included
PLC with touch screen panel for special request

8. Beer Dispense
Beer dispensing columns and faucets for directly beer service
Keg filling and rinsing machine
Manually bottling machines for self consumption

9. Other Facilities
Portable CIP system for cleaning the tanks
Steam boiler for brewhouse heating

Small brewery equipment:

Small Brewery suggestions

Learn more details about Shun Long equipment

1. Inner are of international standards of quality 304 stainless steel material, high-pressure polyurethane foam insulation, the jacket in accordance with customer requirements, can be polished stainless steel, matt, carbon steel, the form of spraying.

2. The application of international standardized fermented beer production technology, a wide range of temperature control application technology, mirror polishing inside the tank, up to ≤0.8um≤0.6um≤0.2um polishing quality standards, fully meet automatic cleaning and disinfection of the controlled system requirements.

3. Fermentor cooling jacket at the same time meet the needs of the country the world’s technical standards, the provision of Maitreya paneles, arched passages spinulosa Watt Jacket channel heat exchangers and other methods to meet different cooling media and the pressure of the heat exchange technology needs

Shun LONG Equipment range

Shunlong Equipment Technology Co., Ltd. is a beer equipment manufacturer, and fermentation equipment manufacturers of Shandong. Professionally design, production, manufacture, installation, commissioning all kinds of beer equipment and facilities, including medium-sized beer saccharification, fermentation equipment, yeast expansion propagation, filter / filter press system, CIP cleaning system, high concentration dilution system, micro-brewed beer equipmentand equipment and filling equipment.

We mainly have the following kinds of equipment:50L/D,100L/D, 200L/D, 300L/D, 400l/D,500L/D,600L/D,800L/D, 1000L/D, 1200L/D,1500L/D,1800L/D,2000L/D, 2300L/D,2500L/D,3000L/D,5000L/Detc. We can produce the equipment according to clients’ requirments. Our equipment is mainly applied in hotels, bars, barbecue, small and medium sized breweries and so on. As for the price, different products and specifications means various prices

Shun Long Service

Pre-sale service:

1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.

After-sale service:

1. We provide long-term after-sale service.

2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. 3. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.

4. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
