Economical Beer Craft Brewing Equipment Low Noise 1.5mm Dimple Plate Cooling Jacket
Economical Beer Craft Brewing Equipment Low Noise 1.5mm Dimple Plate Cooling Jacket
Economical Beer Craft Brewing Equipment Low Noise 1.5mm Dimple Plate Cooling Jacket
Economical Beer Craft Brewing Equipment Low Noise 1.5mm Dimple Plate Cooling Jacket
Specifications
Brand Name :
SLET
Model Number :
SL-200
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 25,000- 50,000 Per set
Payment Terms :
T/T
Supply Ability :
30 sets per month
Delivery Time :
25 working days after the deposit
Packaging Details :
PE paper & iron frame
Heating :
electricity / steam / gas
Control :
Semi-automatic / automatic
Brewhouse :
unit tank, 2 vessels, 3 vessels, 4 vessels, etc
Fermenters :
Conical cyliner tank cone angle 60 degree
Material :
SS304
Exhausting :
Indoor or outdoor
Description

Quality economical beer brewing kit turn your kitchen into a craft brewery

Product Description

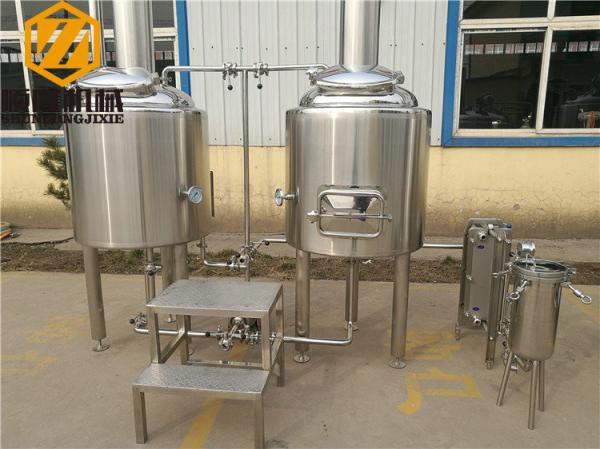

200L Beer brewing kit
Unit Item Capacity Technical parameter
Grinding System Mill 200KG/H Double Roller, Noise<60db
Heating System Boiler 50KG/H Electric, Gas, Oil Type/CE certification
Brewhouse System Mash/Lauter tun 200L

Mashing Process: Decoction.Infusion.Multi-step infusion
Heating source: Steam, Electric, Gas
SUS304/Red copper

Interior: 2.5-3mm

Exteior: 3-4mm
Brew Kettle/
Whirlpool Tank		 200L
Hot Water Tank 300L
Heat exchanger 3m2 Stainless steel plate
Fermentation System Fermentation Tank 200L/500L Top manway / Side manway
Drying hop port to brew IPA
Dimple Plate Cooling jacket
Carbonation port to fill CO2
Yeast Adding Tank 2L SUS304 Stainless Steel

Characters

i Brew house

  • Inner SUS304 Stainless Steel thickness: 3.0mm

  • 360° CIP spraying ball

  • Steam heating, dimplate plate steam jacket thickness: 3mm

  • Equipped with: Grain rake and agitator

  • Temperature measurement: Temperature Probe PT100

  • Food grade centrifugal pump VFD

  • Mash infusion process

  • External SUS 304 Stainless Steel thickness: 2.0mm

  • Insulation: Polyurethane thickness: 80mm.

  • Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination

  • Equipment with tangent tube

  • Easy to clean and detachable sparging ball

ii Fermentation tank

  • Inner SUS304 Stainless Steel thickness: 3.0mm

  • External SUS 304 Stainless Steel thickness: 2.0mm

  • Insulation:Polyurethane thickness: 100mm.

  • Dimple plate cooling jacket, thickness:1.5mm

  • Dry hopping port

  • Stringent tank and Jacket leakage test by water and pressured gas, Tank design pressure is 0.3Mpa

  • Cone 60° resist compression design, dripping temperature drop

  • Carbonation port and stone for special request

  • Temperature display: PT100

  • Tri clamp discharge arm with butterfly valve

  • 360° CIP spraying ball

Cooling Unit

1. Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing

2. Efficiency chillers or refrigerators with fryon to supply cooling energy

3. Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger

4. All pipes, fitting, insulation materials are included

Control Unit

1. Mashing Pump on/off excluded VFD

2. Temperature display and Auto/Manu heating Control for brewhouse tanks

3. Auto/Manu Glycol Water Pump control

4. Auto/Manu Chiller control

5. Temperature display and Auto/Manu Control for FVs and BBTs

6. Temperature display and Control for GWT and CLT

7. Temperature controller, thermocouple, solenoid valves etc are included

8. PLC S7200 Siemens

Others

Portable CIP system for cleaning the tanks

Steam boiler for brewhouse heating

Water treatment for brew water

Oil free air compressor

Brewery COST

production capacity 100L 200L 300L 500L 1000L 2000L
Floor space ≥15m² ≥25m² ≥35m² ≥50m² ≥80m² ≥120m²
Total power 12kw 12kw 12kw 15/36kw 22/72kw 31/144kw

Consumption of

water(Max)

 0.2m³/h 0.4m³/h 0.5m³/h 1.0m³/h 1.5m³/h 2.0m³/h

Total water

consumption per day

 0.5m³/h 1.0m³/h 1.5m³/h 2.5m³/h 5.0m³/h 10m³/h
Consumption of malt 20kg 40kg 60kg 100kg 200kg 400kg
Consumption of hops 60g 120g 180g 300g 600g 1.2kg
Yeast 100g/1L 200g/2L 300g/3L 500g/5L 1kg/10L 2kg/20L
Steam 0.017t/hr 0.017t/hr 0.05t/hr 0.10t/hr 0.20t/hr

Jinan Shun Long Service

Before-Sales Service

1. Layout Design for new build brewery

Our experienced engineer( more than ten years) will provide the detailed layout according to your brewery, if needed, we will fly to your brewery at our cost.

2. Exist Brewery Expansion

Expansion of the brew house, beer tanks, or other parts, we will design and manufacture as per your exist brewery.

3. Effective business communication

Our sales team are young and rich of experience, we are full of passion, all of us have been in this business line for more than 8 years, and they are graduated from UK, Russia etc.

4. Brewing consultant

We also bult a good relation with Shandong university and other institutes who are expert in beer brewing, we are capable to provide the most advanced brewing technology.

After-Sales Service

1. Guarantee: 3 years

2. Installation: We shall send 1-2 enginees to your place for installtion and commission work in 20-30 ds.

3. We provide easy damage parts and life long technical support and after sales for free.
