Steam / Gas Heated Brewhouse Beer Brewing Machine Semi Automatic Control
Steam / Gas Heated Brewhouse Beer Brewing Machine Semi Automatic Control
Steam / Gas Heated Brewhouse Beer Brewing Machine Semi Automatic Control
Steam / Gas Heated Brewhouse Beer Brewing Machine Semi Automatic Control
Steam / Gas Heated Brewhouse Beer Brewing Machine Semi Automatic Control
Steam / Gas Heated Brewhouse Beer Brewing Machine Semi Automatic Control
Specifications
Brand Name :
SLET
Model Number :
SL-1000L
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 38500- 45000 Per set
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
45 working days after the deposit
Packaging Details :
Iron frame
Material :
SS304
Heating :
Steam Heating
Control :
Semi-automatic
Exhausting :
Indoor or outside
Fermenters :
jacketed and insulated tanks
Insulation :
PU 100mm
Description

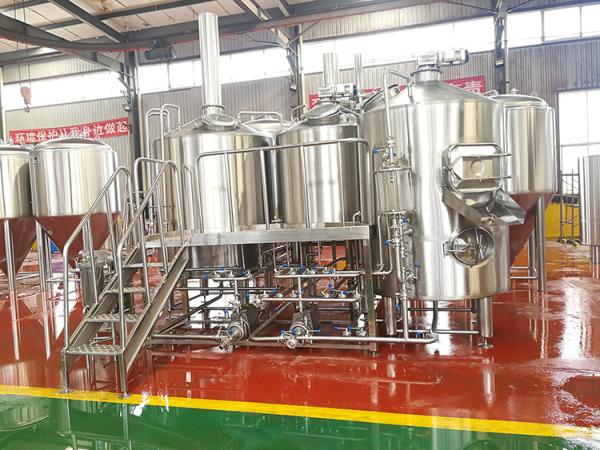

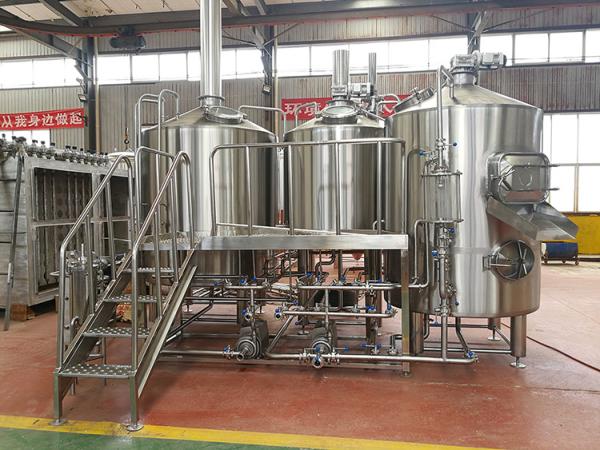

1000L Micro brewery Equipment Steam / Gas Heated

1000L Beer Brewing Equipment is designed for brewing the craft beer with commercial purposes for nanobrewery, microbrewery, brewpub, taproom and restaurant.

The brewers will find it easy to brew an outstanding full-bodied beers like Ale, Lager, Stout, IPA, etc. by using our brewery equipment under guidance. And we also have different shades of beer fermentation process at room temperature, to achieve the dream of the brewer.
My compan offers the complete turn-key micro brewery equipment solutions consisting of malt milling, heating, controlling, installation, training and beer recipes.

Steam / Gas Heated Brewhouse Beer Brewing Machine Semi Automatic Control

Steam / Gas Heated Brewhouse Beer Brewing Machine Semi Automatic Control

  • 1000KG Malt mill

  • 1000L SS304 brewhouse, steam heating suggested

  • 10m2 Plate heat exchanger

  • Wort aerator

  • Stainless steel work platform

  • Hop back tank with glass sight

  • 1000L/2000L fermentation tanks

  • 3000l glycol tank+ chiller

  • Mobile CIP system

  • Control manual control suggested

  • PLC avaiable

Steam / Gas Heated Brewhouse Beer Brewing Machine Semi Automatic Control

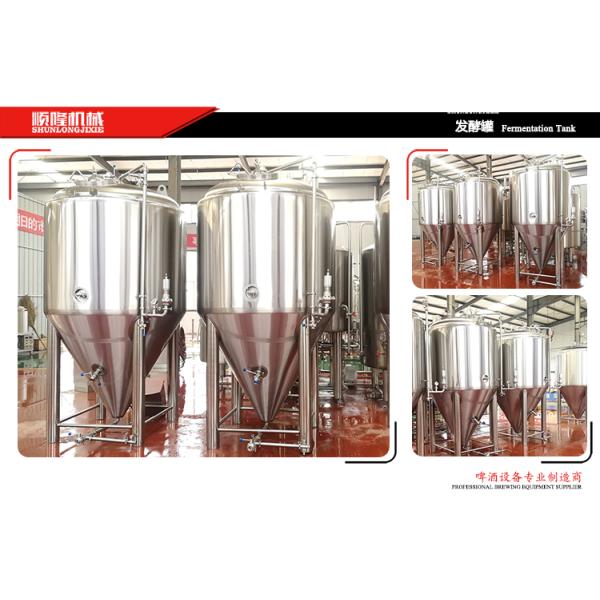

Fermenter Details:
1 - Top Manway or Side Manway
2 - Racking Port with Tri-Clover Butterfly Valve
3 - Discharge Port with Tri-Clover Butterfly Valve
4 - 2 Tri-Clover Outlets with Butterfly Valves
5 - CIP Arm and Spray Ball/Sample Valve/Safety ValvePressure Gauge
6 - Thermowell



Brewery Costs and output

production capacity 100L 200L 300L 500L 1000L 2000L
Floor space ≥15m² ≥25m² ≥35m² ≥50m² ≥80m² ≥120m²
Total power 12kw 12kw 12kw 15/36kw 22/72kw 31/144kw

Consumption of

water(Max)

 0.2m³/h 0.4m³/h 0.5m³/h 1.0m³/h 1.5m³/h 2.0m³/h

Total water

consumption per day

 0.5m³/h 1.0m³/h 1.5m³/h 2.5m³/h 5.0m³/h 10m³/h
Consumption of malt 20kg 40kg 60kg 100kg 200kg 400kg
Consumption of hops 60g 120g 180g 300g 600g 1.2kg
Yeast 100g/1L 200g/2L 300g/3L 500g/5L 1kg/10L 2kg/20L
Steam 0.017t/hr 0.017t/hr 0.05t/hr 0.10t/hr 0.20t/hr

Steam / Gas Heated Brewhouse Beer Brewing Machine Semi Automatic Control

TERMS

Trade term: FOB Qingdao

Packing: Iron frame+wood box, suitable for long shipping transportation

Payment, 50% in advance as depsoit, the balance before the delivery

Delivery, 45 working days after the deposit arrival

Warranty: 3 years for main body, 6 months for electrical componets andparts

Our Service
Steam / Gas Heated Brewhouse Beer Brewing Machine Semi Automatic Control
Before-Sales
1. Layout Design for new build brewery
Our experienced engineer( more than ten years) will provide the detailed layout according to your brewery, if needed, we will fly to your brewery at our cost.
2. Exist Brewery Expansion
Expansion of the brew house, beer tanks, or other parts, we will design and manufacture as per your exist brewery.
3. Effective business communication
Our sales team are young and rich of experience, we are full of passion, all of us have been in this business line for more than 8 years, and they are graduated from UK, Russia etc.
4. Brewing consultant
We also bult a good relation with Shandong university and other institutes who are expert in beer brewing, we are capable to provide the most advanced brewing technology.

After-Sales Service
1. Guarantee: 3 years
2. Installation: Our engineers team will provide you the perfect installtion and commissioning service. Almost of them have been to 5 countries even more.
Steam / Gas Heated Brewhouse Beer Brewing Machine Semi Automatic Control
