FTTH FTTB FTTX SC UPC Adapter Single Multi Mode Female To Male
FTTH FTTB FTTX SC UPC Adapter Single Multi Mode Female To Male
FTTH FTTB FTTX SC UPC Adapter Single Multi Mode Female To Male
FTTH FTTB FTTX SC UPC Adapter Single Multi Mode Female To Male
FTTH FTTB FTTX SC UPC Adapter Single Multi Mode Female To Male
FTTH FTTB FTTX SC UPC Adapter Single Multi Mode Female To Male
FTTH FTTB FTTX SC UPC Adapter Single Multi Mode Female To Male
FTTH FTTB FTTX SC UPC Adapter Single Multi Mode Female To Male
FTTH FTTB FTTX SC UPC Adapter Single Multi Mode Female To Male
FTTH FTTB FTTX SC UPC Adapter Single Multi Mode Female To Male
Specifications
Brand Name :
Begate or Customization
Model Number :
FC UPC Male-SC UPC Female Adapter
Certification :
CE/RoHS/ISO9001
Place of Origin :
Shenzhen, China
MOQ :
We are the factory. No MOQ, 1piece is ok.
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability :
100000 Piece/Pieces per Day
Delivery Time :
Samples within 3 days, bulk orders within 15 working days
Packaging Details :
1.Small Blister tray(50 price) 2. Plastic bag 3.Carton Box
Product Name :
FC UPC Male-SC UPC Female Adapter
Color :
Blue,Green,Other,Customized,OEM
Application :
FTTH FTTB FTTX Network,CATV,to make patch cord,Telecommunication
Return loss :
> 55db,≥50dB,max.50dB (SC/APC),≤-40dB,more than 55db
Insertion loss :
IL<0.2db,no more than 0.3db,≤ 0.3dB,>5,≤0.2 dB
Connector type :
SC,SC/APC,12 and 24 fiber connector,LC,MT based Multi-fiber Connector
Material :
Metal, Zinc Alloy, PVC,Plastic
Storage temperature :
-40℃~+75℃,- 45~+85℃,Storage Temperature,-40~85℃
Description

FTTH FTTB FTTX SC UPC Adapter Single Multi Mode Female To Male

FC UPC Male-SC UPC Female Adapter Single/Multi Mode Female To Male SM 9/125 Hybrid

Product Introduction of Fiber Optic Adapter:

Female to male Conversion adapters adopt embedded optical fiber connectors and optical fiber ferrule-matching Sleeve joint technology. The products can hybrid a type of fiber optic connector (male) into another type of optical fiber connector (male). It keeps the advantages of small size, light signal stability, and easy-to-use characteristics, widely used in optical fiber equipment instrument testing and rescue project construction field.
This FC(Female) to SC(Male) type fiber optic Conversion adapter, Converting FC connector to SC Connector. Variable FC interface conversion SC interface. Provided a simple and reliable solution for connecting two different optic fiber transmission joints.

A fiber optic adapter is also called a fiber optic coupler. It is used to provide a cable-to-cable fiber connection. People sometimes also name them to be mating sleeves and hybrid adaptors. Mating sleeves mean this fiber optic adapter is used to connect the same type of fiber optic connectors, while hybrid adaptors are the fiber optic cable adaptor types used to connect different kinds of fiber optic connectors.

Product Information of Fiber Optic Adapter:

1.

Product Name SC/FC/LC/ST Fiber Adapter
Type SC/UPC FC/UPCSM Duplex
Material ABS
Color Blue or OEM
Insertion Loss ≤0.2db
Return Loss ≥50db
Packing 20 Pcs/Blister Box

2.

Product Type SC FC ST LC Adapter
Modus Single mode Multi mode
Insertion Verlies <0.2dB <0.3dB
Return Loss >45dB
Mating Durability (500times) Additional Loss≤0.1dB
Return Loss Variability
Temperature Stability(-40°C~80°C) Additional Loss≤0.2dB
Return Loss Variability
Bedrijfstemperatuur -40 °C ~ + 75 °C
Opslag Temperatuur -40 °C ~ + 80 °C


Features of Fiber Optic Adapter

1. Fiber optic adapter FC/LC/SC/ST UPC / APC
2. Apply for CATV, LAN, Telecom network, test equipment, SC connectors
3. Multimode or Single Mode, OM3, OM4 available
4. Simplex / Duplex
5. Ceramic sleeve, ABS housing
6. Insertion Loss≤ 0.2dB, Return Loss≥ 45dB (UPC), ≥ 60dB (APC)
7. Operating temp.: -40° C~+85° C
8. Standard plugging force: 2~6N
9. Durability > 1000 times
10. Color: Blue (pc/SM), Green (APC), Beige (pc/MM), Acid blue (OM3), Purple(OM4)

Applications of Fiber Optic Adapter

1. Telecom network
2. Optical test equipment
3. Local area networks
4. Wide area networks
5. Data processing Networks
6. Optic fiber communication
7. LAN
8. Optic fiber CATV
9. Testing and others

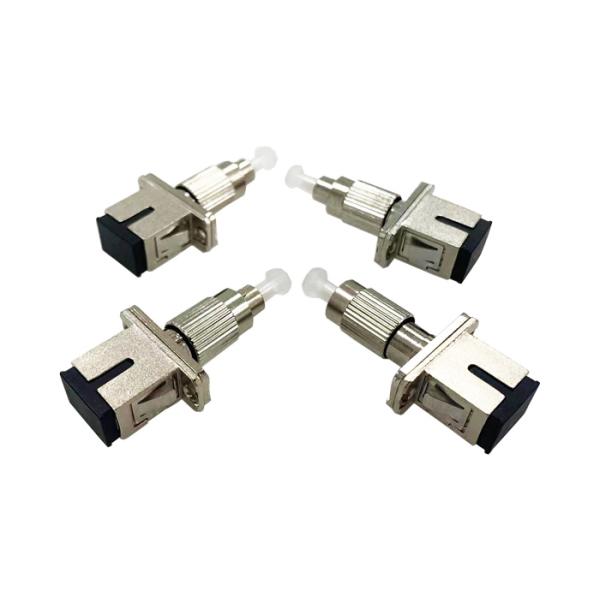

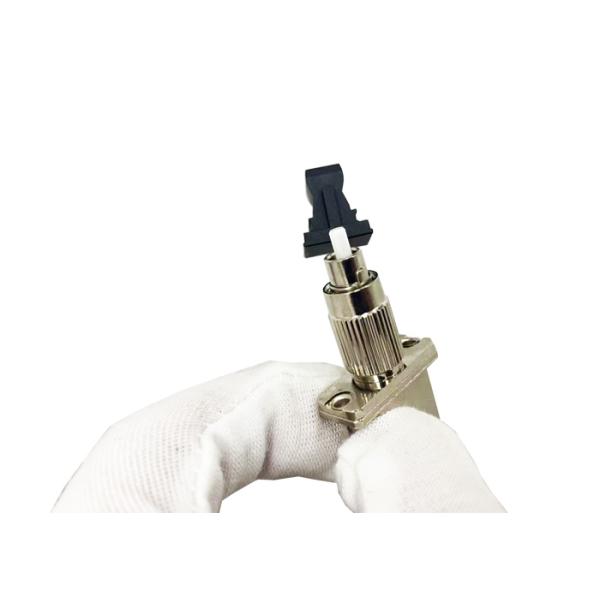

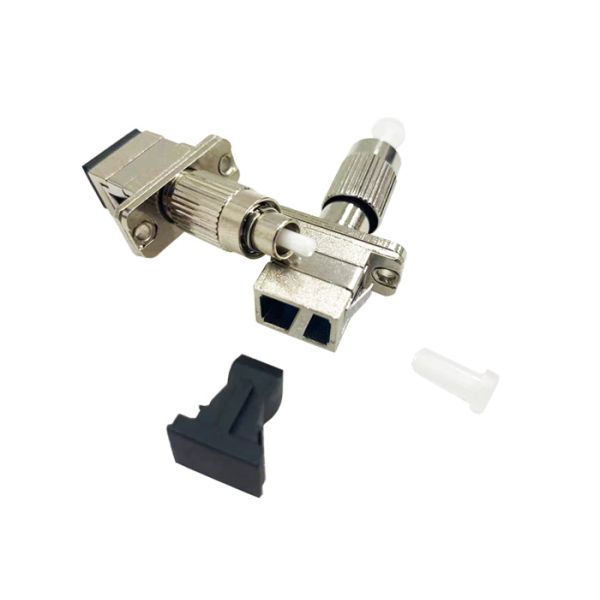

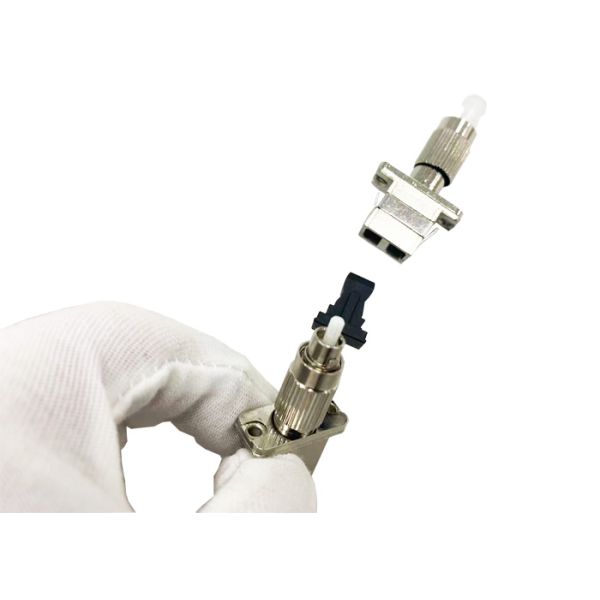

Product Details:

FTTH FTTB FTTX SC UPC Adapter Single Multi Mode Female To Male
FTTH FTTB FTTX SC UPC Adapter Single Multi Mode Female To Male
FTTH FTTB FTTX SC UPC Adapter Single Multi Mode Female To Male
FTTH FTTB FTTX SC UPC Adapter Single Multi Mode Female To Male

All Types:

FTTH FTTB FTTX SC UPC Adapter Single Multi Mode Female To Male

Every cooperation is a kind of trust, Begates cares about the issues that our customers care about.

While ensuring product quality, we provide customers with safe packaging, so that the goods can be delivered to customers in good condition.

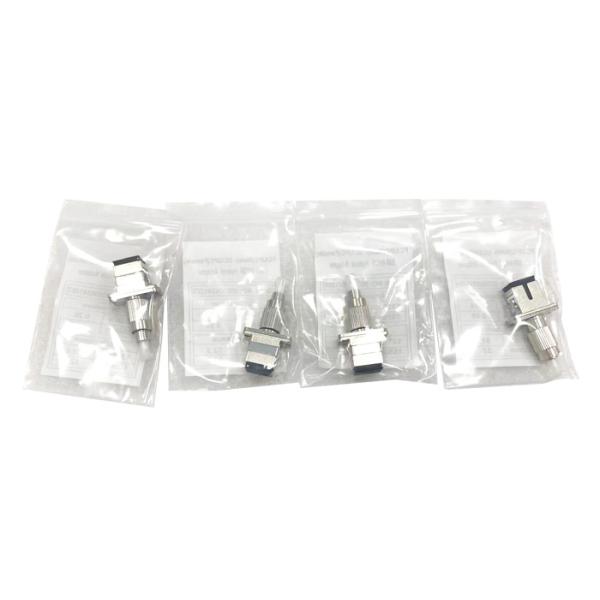

Packaging of Fiber Optic Adapter:

FTTH FTTB FTTX SC UPC Adapter Single Multi Mode Female To Male


FAQ:

Q: Are you trading company or manufacturer ?

A: We are factory

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantit

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.


The competitive advantage of product line:

ODM and OEM Are Welcome.
FTTH FTTB FTTX SC UPC Adapter Single Multi Mode Female To Male
