12 / 24 Core Multimode OM3 OM4 MPO MTP Cassettes Male To LC Duplex Fiber Cassettes
12 / 24 Core Multimode OM3 OM4 MPO MTP Cassettes Male To LC Duplex Fiber Cassettes
12 / 24 Core Multimode OM3 OM4 MPO MTP Cassettes Male To LC Duplex Fiber Cassettes
12 / 24 Core Multimode OM3 OM4 MPO MTP Cassettes Male To LC Duplex Fiber Cassettes
12 / 24 Core Multimode OM3 OM4 MPO MTP Cassettes Male To LC Duplex Fiber Cassettes
12 / 24 Core Multimode OM3 OM4 MPO MTP Cassettes Male To LC Duplex Fiber Cassettes
12 / 24 Core Multimode OM3 OM4 MPO MTP Cassettes Male To LC Duplex Fiber Cassettes
12 / 24 Core Multimode OM3 OM4 MPO MTP Cassettes Male To LC Duplex Fiber Cassettes
Specifications
Brand Name :
Begate, OEM&ODM
Model Number :
12 Core Fiber OM3 OM4 MPO MTP Cassettes
Certification :
CE,ROHS,ISO9001,IEC
Place of Origin :
Shenzhen, China
MOQ :
No MOQ, 1piece is ok.
Price :
Negotiable
Payment Terms :
L/C, Pay Pal, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 pieces/day
Delivery Time :
Samples within 3 days, bulk orders within 12 working days
Packaging Details :
1. 1piece/small gift box; 2. Out Carton
Product name :
12 Core Fiber OM3 OM4 MPO MTP Cassettes
Material of Cassette Body :
Aluminium (AL5052)
Front Connector Type :
LC UPC Duplex (Magenta) (Aqua)
Color :
Magenta, Aqua Blue, Black
Fiber Mode :
Multimode, Singlemode
Application :
Data center Network
Polarity :
Type A
Fiber Count :
12 24 Core
Description

12Core 24Core Multimode OM3 OM4 MPO MTP Cassettes Male To LC Duplex Fiber Cassettes

Product Outline Presentation of OM3 OM4 MPO MTP Cassettes:

  • 12 or 24 port Fiber MPO/PC or MPO/APC (Male or Female) to LC (Duplex or Quad), Singlemode or Multimode (OM1/OM2/OM3/OM4) Cassette
  • A 12 or 24 Fiber MTP/MPO cassette that has an LGX footprint and allows for the break-out to 12 or 24 LC connectors. The cassette uses an angled polish LC connector with low insertion loss.
  • Inside the cassette is a fan out/breakout cable assembly, making use of optic fiber in a ribbon configuration to 12 or 24 LC connections which then couple with 12 or 24 LC patch cables on the front of the cassette, and an MTP/MPO 12 or 24 connectors on the rear of the cassette. The cassette can be installed in either a vertical or a horizontal MPO cassette holder.
  • Our MTP/MPO cassettes are all made with high-quality fiber optic cable and are available in various fiber modes: Single-mode (9/125um), Multimode OM1 (62.5/125um), Multimode OM2/OM3/OM4 (50/125um). These cassettes also have many common fiber optic connector ports available, including LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST fiber optic connectors. All MTP/MPO cassettes can be made with either Male or Female MTP/MPO connectors to suit your needs.
  • The front panel is equipped with a 12-port duplex adapter, and the rear panel is equipped with a 1-port MPO adapter.
  • Plug-and-play modular architecture enables rapid deployment of data center fiber infrastructure and improved
  • troubleshooting, reconfiguration, reconfiguration, and migration of fiber optic cables.
  • 100% terminated in the factory and strictly tested for connection to ensure minimum insertion loss, fully meeting the demanding high-speed network.
  • Module box attenuation:
  • Multimode: standard loss ≤0.8dB; low loss: ≤0.5dB
  • Single mode: standard loss ≤0.7dB; low loss: ≤0.35dB
  • Operating temperature range: -20 ° C ~ + ° C60
  • MPO-LC fan-outs to deliver optical performance and reliability,
  • Low-loss MPO Elite and LC or SC premium versions are offered to feature, low insertion loss for demanding power budget high-speed networks.

Features of OM3 OM4 MPO MTP Cassettes:

  • SM and MM (OM3/OM4) Versions.
  • Can be used in 19'', 23'' standard distribution frame
  • There are mark in the front of each port, and can be easily identified.
  • Quick and easy installed ,flexible in configuration and easy to management.
  • Field connections with guaranteed quality and simplifies fiber routing.
  • Modular system management, easy reconfiguration for moves, adds and changes.
  • Customized fiber polarity in the module.
  • High-density and small desing, Easy and fast installation
  • High-quality engineering plastics and Aluminum alloy or cold-rolled sheet material
  • Available in 12/24/48 fiber versions.
  • Standard size, light weight and reasonable structure
  • Splice tray inside changeable
  • 8 core fiber available
  • Fanout Length: 0.5M or 1M
  • Small volume, easy management
  • 24 Fibre ferrule MPO/MTP® interface
  • Premium LC Low Loss terminations;
  • Standard and Elite low loss MPO/ MTP® connectors
  • Color coeed housings available to differentiate fiber type, polish type and/or connector grade.
  • MPO faceplate can be upgraded easily.
  • The front panel is equipped with LC , MTRJ or SC adapter, rear panel assembles the MPO adapter.

Advantages of OM3 OM4 MPO MTP Cassettes:

  • Able to hold MTP (MPO) loaded cassettes
  • Customize design available
  • Silkscreen printing on the front aperture for fiber identification
  • Comprehensive accessory kit for cable entry and fiber management
  • 1RU suitable 2-4pcs KNC standard adapter plates at different size
  • Versatile panel with extendable double slide rails for smooth sliding

Application of OM3 OM4 MPO MTP Cassettes:

  • High Density Fiber Management.
  • High fiber density card edge access
  • Telecommunications subscriber loop
  • Fiber to the home (FTTH)
  • Data center infrastructure
  • Storage Area Networks( SAN) fiber channels
  • 40G and 100G network applications
  • Array trunk cable
  • 12,24,48,96Port optional
  • Suitable for SC, FC, ST,LC adapter, duplex and simplex both available.
  • Smart Design to supply firm protect for optic cable terminal connection and optic fiber adapter installation
  • Provide termination, protection, connection, management of fiber optic cable
  • Optical fiber test equipment
  • Optical fiber sensor
  • Industry and military application
  • Storage area network - fibre channel
  • Parallel optics

12 / 24 Core Multimode OM3 OM4 MPO MTP Cassettes Male To LC Duplex Fiber Cassettes

Technical Specificaiton of OM3 OM4 MPO MTP Cassettes:

1.

Name MTP MOP cassette
Adapter SC/LC/MPO
Port 12 24 port
Mode Single mode,multimode
Material High-quality ABS,cold-rolled sheet
Standard Standard 19" Rack
Detail 1.Material: ABS+PC
2.2pcs MPOadapter(PEI)
3.12pcs LCadapter (PC)
4.2pcs Single mode MPO female-LC low loss patch cord
5.Fiber core bending resistance G657A1
6.low loss MPOplug loss ≤0.5dB
7.low loss LC plug loss ≤0.3dB
Splice tray ABS PC
OEM ODM 1pcs with your logo

2.

Type Single Mode Single Mode Multi Mode
(APC Polish) (UPC Polish) (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Maximum Insertion Loss Elite Standard Elite Standard Elite Standard
Low Loss Low Loss Low Loss
≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃ ~ +80℃ -40℃ ~ +80℃ -40℃ ~ +80℃
Test Wavelength 1310nm 1310nm 1310nm

Detail of OM3 OM4 MPO MTP Cassettes:

12 / 24 Core Multimode OM3 OM4 MPO MTP Cassettes Male To LC Duplex Fiber Cassettes12 / 24 Core Multimode OM3 OM4 MPO MTP Cassettes Male To LC Duplex Fiber Cassettes

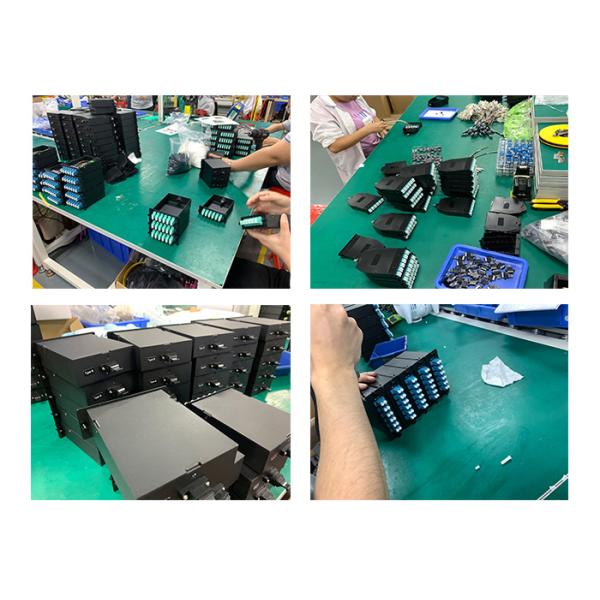

Factory Workshop:

12 / 24 Core Multimode OM3 OM4 MPO MTP Cassettes Male To LC Duplex Fiber Cassettes

FAQ:

Q1. What's the payment terms?
TT, WesternUnion, Escrow(secure payment), Trade assurance,Cash, etc.

Q2. Could you offer samples?
Yes, samples are accepted.You need place sample order to us, and we will reduce from bulk order.

Q3. What's the delivery time for sample order?
Normally about 3days after confirmation.

Q4. What's the delivery time for bulk order?
Normally 5-10 days depends on products and order quantities.

Q5. Could you do design for us?
Yes, we provide customized service and can do artworks including printing, logo etc. for you.

Q6: Do you accept OEM or ODM?
A: Yes,we're factory. any your customized requirements we can do our best to help you realize.
