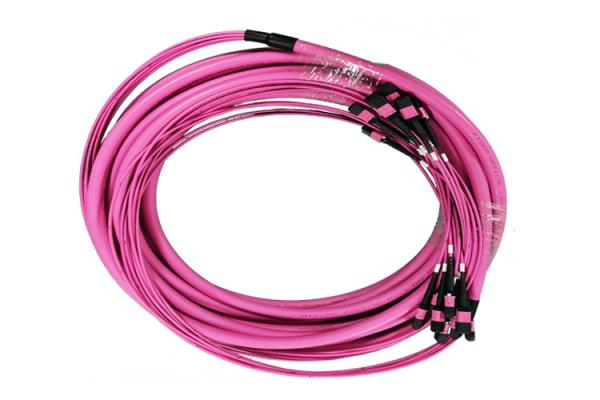

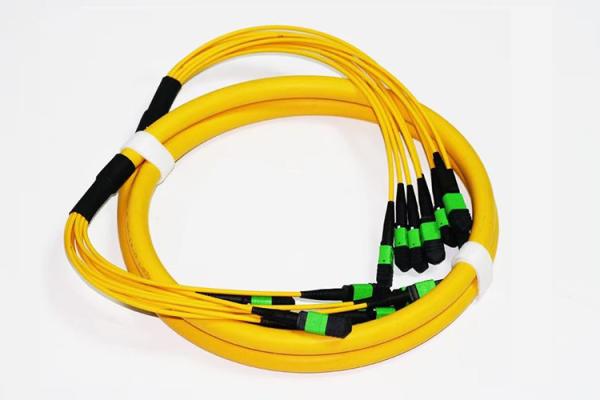

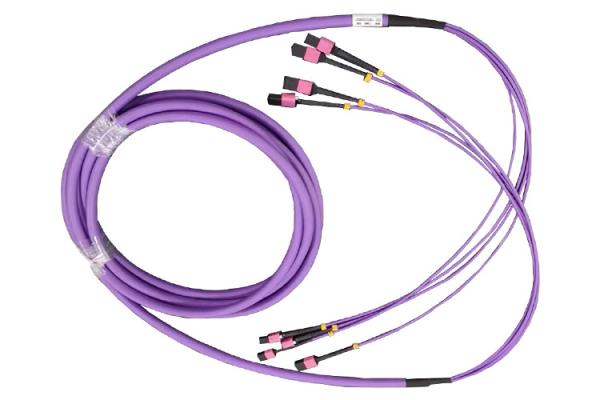

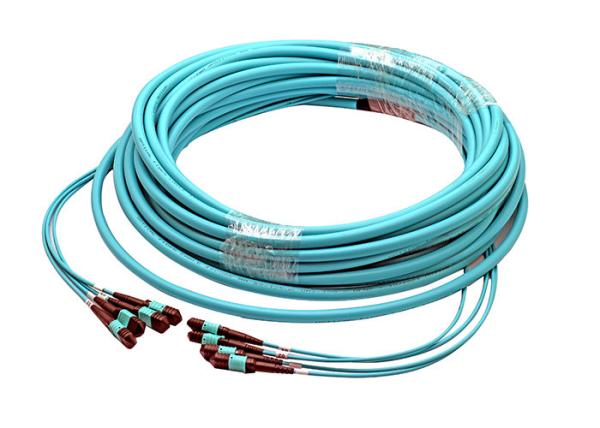

12F 24F 48F 72F 144F SM MM 100% Tested MPO MTP To MPO MTP Trunk Cable
12F 24F 48F 72F 144F SM MM 100% Tested MPO MTP To MPO MTP Trunk Cable
12F 24F 48F 72F 144F SM MM 100% Tested MPO MTP To MPO MTP Trunk Cable
12F 24F 48F 72F 144F SM MM 100% Tested MPO MTP To MPO MTP Trunk Cable
12F 24F 48F 72F 144F SM MM 100% Tested MPO MTP To MPO MTP Trunk Cable
12F 24F 48F 72F 144F SM MM 100% Tested MPO MTP To MPO MTP Trunk Cable
12F 24F 48F 72F 144F SM MM 100% Tested MPO MTP To MPO MTP Trunk Cable
12F 24F 48F 72F 144F SM MM 100% Tested MPO MTP To MPO MTP Trunk Cable
Specifications
Brand Name :
OEM and ODM
Model Number :
MPO MTP To MPO MTP Trunk Cable
Certification :
CE,ROHS,ISO9001,IEC and TIA
Place of Origin :
Made in China
MOQ :
We are the professional manufacturer , NO MOQ, 1 piece can be provided.
Price :
USD 99.99/ piece ~ USD 1999.99 / piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal , Cash
Supply Ability :
3000 pieces / day
Delivery Time :
Samples within 3 days, bulk orders within 15 working days
Packaging Details :
1 piece wrapped with plastic film and then put into carton. For long length , will use spool packaging.
Fiber mode :
Multimode（PC) OM4 OM3 ; Single Mode (APC) OS2
Fiber count :
4F, 6F, 8F, 12F, 24F, 48F, 96F,144F
Housing color :
Purple, Yellow, Magenta, Aqua blue
Operating wavelength :
850nm, 1300nm
Cable Jacket Ratings :
OFNR, OFNP, LSZH
Polarity :
Customized
Connector Ferrule :
12F/16F/ 24F/32F/48F
Connector Brand :
US Conec MTP, Senko MPO, Nissin MPO, Sanwa MPO, FURUKAWA MPO
Operating Temperature :
-20°C to +70°C
Storage Temperature :
-40°C to +85°C
Description

12F 24F 48F 72F 144F SM MM 100% Tested MPO MTP To MPO MTP Trunk Cable

Overview of MPO MTP To MPO MTP Trunk Cable

Begate MTP / MPO series of trunk cable solutions provide an efficient way to install a large amount of cables quickly. Our MPO MTP To MPO MTP Trunk Cables are especially suitable for the areas that require high density, rapid deployment and high performance.

Our high performance factory tested assemblies trunk cables are pre-terminated with 12-fiber MTP / MPO connectors and offered in customer–specified lengths and configurations. Options of 12-Fiber, 24-Fiber, 32-Fiber, 36-Fiber, 48-Fiber, 72-Fiber, 96- Fiber and 144-fiber, terminated with round Mini-core cable to fit for each installation needs.

Features of MPO MTP TO MPO MTP Trunk Cable

  1. MTP and MPO are available
  2. High performance in IL&RL
  3. 100% pre-terminated tested
  4. Pulling eye design easy for cabling
  5. Suitable for MTP/MPO application
  6. Jacket material LSZH, OFNR, OFNP available
  7. Compliance with Telcordia GR-1435-CORE Compliant
  8. Compliance with UL 94-V0 compliant and RoHS compliant
  9. Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

Technical specification of MPO MTP To MPO MTP Trunk Cable

Optical Properties Single Mode Multimode
Insertion Loss(dB) Low loss≤ 0.35 (Typical:≤ 0.25 )
Standard Loss≤0.75 (Typical:≤ 0.4 )		 Low loss≤ 0.35 (Typical:≤ 0.2 ) Standard Loss≤ 0.6 (Typical:≤ 0.35 )
Return Loss (dB) PC≥50; APC≥60 PC≥20; APC≥40
Durability ≤0.2 dB typical change, 50 matings
Wavelength(nm) Singlemode: 1310/1550, Multimode: 850/1300
Fiber Attenuation (dB/km) Singlemode: ≤0.35 at 1310nm, ≤0.2 at 1550nm
Multimode: ≤2.3 at 850nm, ≤0.6 at 1300nm
Transmission Distance OM4: 150m at 40/100G, 550m at 10G
OM3: 100m at 40/100G, 300m at 10G

Application MPO MTP To MPO MTP Trunk Cable

  1. Data communication network.
  2. Optical System Access network.
  3. Storage area networking fiber channel.
  4. High density architectures.
  5. Data centers
  6. Parallel transmission network
  7. 10G/40G/100G/400G net work transmission
  8. Fiber network deployment

This is not a definitive list of applications for this product. It represents some of the more common uses.

Cable specification of MPO MTP TO MPO MTP Trunk Cable

Fiber Count OD(mm) Nominal Weight(kg/km) Max.Tension(N) Max.Crushing Resistane(N/100)
Short term long Term Short term long Term
12 3.0±0.1 8.1 150 80 500 150
24 3.0±0.1 8.5 160 80 500 150
24 9.0±0.5 72 500 180 1000 300
36 9.0±0.5 78 500 180 1000 300
48 9.0±0.5 79 600 200 1000 300
60~72 11.2±0.5 126 1000 300 1000 300
96 13.5±0.5 178 1000 300 1000 300
144 17.5±0.5 285 1000 300 1000 300

Assembling line of of MPO MTP TO MPO MTP Trunk Cable

12F 24F 48F 72F 144F SM MM 100% Tested MPO MTP To MPO MTP Trunk Cable


100% factory tested with traceable test data


12F 24F 48F 72F 144F SM MM 100% Tested MPO MTP To MPO MTP Trunk Cable

How would you describe the MPO MTP TO MPO MTP Trunk Cable you want?

Trunk Assembly, Fiber count-Fiber, MTP Female (no pin) , Singlemode, Mini-Core Riser (OFNR), A-End Furcation Length xxx mm, B-End Furcation Length xxx mm, Overall Length xxx Meters, No Pulling Eye.


Custom MPO MTP trunk cables including custom lengths, jacket colors and other options are available upon request.
To find out more information, please call us or email us.

12F 24F 48F 72F 144F SM MM 100% Tested MPO MTP To MPO MTP Trunk Cable
