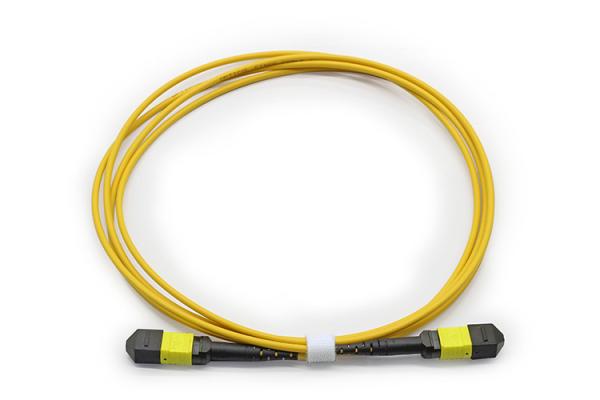

8 Cores 12 Cores 24 Cores MPO MTP Fiber Optic Patchcord OS2 Yellow TypeB LSZH
Begate can supply MPO fiber optic patch cables which are highly demanded in fiber optic communication systems with high density optical fibers. The connector type and the length of MPO MTP fiber patch cord can be decided by customers. Our product conforms to Telcordia GR-326, IEC and RoHS standards.
Specifiction of MPO MTP Fiber Optic Patchcord
| Item | Parameter |
| Matched Connector Type | MPO |
| Fiber Type | Singlemode(APC) |
| Operating Bandwidth Range | 1,250~1,650nm |
| Testing Wavelength | 1310nm,1550nm |
| Typical Insertion loss | ≤0.20dB |
| Maximum Insertion loss | ≤0.35dB |
| Return Loss | ≥50.0dB |
| Applicable cable type | MTP: ribbon or bundle cable |
| Repeatability | ≤0.10dB |
| Exchangeability | ≤0.20 |
| Durability | 1,000 Mating, loss≤0.20dB |
| Tensile Force | ≥120N(except 0.9mm cable)or customized |
| Operating Temperature | -2 0℃~ + 70℃ |
| Storage Temperature | -40 ℃~ + 85℃ |
Features of MPO MTP Fiber Optic Patchcord
1. High quality ferrule and accurate alignment by PIN and PIN hole
2. Low insertion loss and high return loss
3. High interchangeability and durability
4. MPO fiber optic patch cord comes in many types and design blueprint can be provided quickly.
5. Compliant with Telcordia GR-326-CORE, IEC and RoHS standards
6. MTP is optional.
Application of MPO MTP Fiber Optic Patchcord
1. Wiring of local area network between different enterprise buildings
2. Connection of optical links in optical active devices
3. Wiring in communication base station and distribution case
4. Production and testing of optical devices
5. Optical fiber communication system, CATV and telecommunication network
6. LANs and WANs
7. FTTx
Ordering information of MPO MTP Fiber Optic Patchcord
| Product Type | Connector A | Connector B | Fiber Count | Fiber Type | Length | Polarity | Jacket |
| MT=MPO / MTP Trunk Cable Assemblies | MPO / M = MTP / UPC 8 Fiber Male | LC = LC / UPC | 8 = 8 Fiber | OS1 = 9um Single Mode OS1 | 1M = 1 meter | A = Type A ( Straight Through) | PVC |
| MF=MPO / MTP Fan - out / Harness Fiber Optic Cable | MPO / F = MTP / UPC 8 Fiber Female | LCA= LC / APC | 12 = 12 Fiber | OS2 = 9um Single Mode OS2 | 2M = 2 meter | B = Type B (Cross) | LSZH |
| MC=MPO / MTP Fiber Optic Cassette | MPO / A / M = MTP / APC 8 Fiber Male | SC = SC /UPC | 24 = 24 Fiber | OM1 = 62.5um Multi Mode OM1 | 3M = 3 meter | C = Type C (Cross Pair) | OFNP |
| ML=MPO / MTP Loopback | MPO / A / F = MTP / APC 8 Fiber Female | SCA = SC / APC | 48 = 48 Fiber | OM2 = 50um Multimode OM2 | xx m = xx meter | ||
| MP=MPO Fiber Optic Cassette Rack Mount Holders | MPO / M = MTP / UPC 12 Fiber Male | FC = FC / UPC | 72 = 72 Fiber | OM3 = 50um Multimode 10G OM3 | |||
| MPO / F = MTP / UPC 12 Fiber Female | FCA = FC / APC | 96 = 96 Fiber | OM4 = 50um Multimode 10G OM4 | ||||
| MPO / A / M = MTP / APC 12 Fiber Male | DLC = Dulpex LC / UPC | 144 = 144 Fiber | |||||
| MPO / A / F = MTP / APC 12 Fiber Female | DLCA = Duplex LC / APC | ||||||
| MPO 24 / M = MTP / UPC 24 Fiber Female | |||||||
| MPO 24 / F = MTP / UPC 24 Fiber Female | |||||||
| MPO 24 / A / M = MTP / APC 24 Fiber Male | |||||||
| MPO 24 / A / F = MTP / APC 24 Fiber Female |

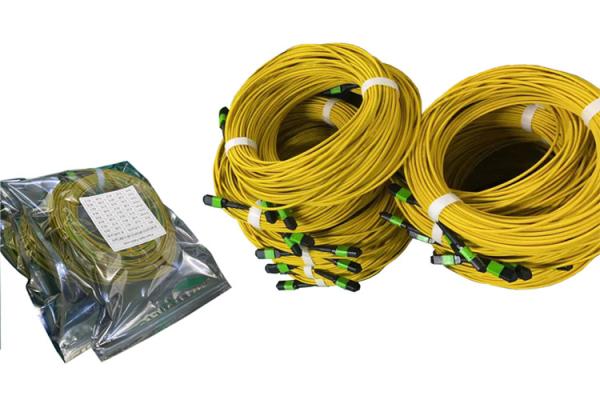

Begate production line of MPO MTP Fiber Optic Patchcord
