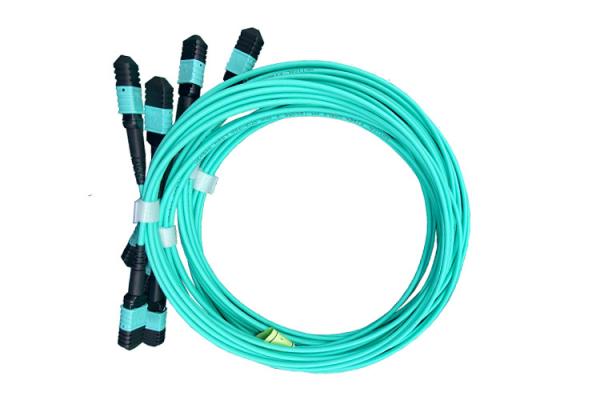

MPO Multi Mode 8F 12F 24F OM3 Type A LSZH 3.0mm Mpo Cable
MPO Multi Mode 8F 12F 24F OM3 Type A LSZH 3.0mm Mpo Cable
MPO Multi Mode 8F 12F 24F OM3 Type A LSZH 3.0mm Mpo Cable
MPO Multi Mode 8F 12F 24F OM3 Type A LSZH 3.0mm Mpo Cable
MPO Multi Mode 8F 12F 24F OM3 Type A LSZH 3.0mm Mpo Cable
MPO Multi Mode 8F 12F 24F OM3 Type A LSZH 3.0mm Mpo Cable
Specifications
Brand Name :
OEM and ODM
Model Number :
MPO MM Type A
Certification :
CE,ROHS,ISO9001,IEC and TIA
Place of Origin :
Made In China
MOQ :
We are the professional manufacturer, 1 piece is OKAY
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000pieces/day
Delivery Time :
Samples within 3 days, bulk orders within 5-7working days
Packaging Details :
1piece/PE bag; 100pcs/carton
Material :
PVC , LSZH , PVC , LSZH , OFNR , OFNP
No. of cores :
8F, 12F, 24F
Type of cable :
OM3 -150 , OM3 - 300
Color :
Aqua blue
Tensile strength :
≥200N
Working wave length :
850nm ~ 1300 nm
Description

MPO Multi Mode 8F 12F 24F OM3 Type A LSZH 3.0mm Mpo Cable

MPO Cable Overview

MTP MPO Assemblies that specially dsigned for laser optimized 40G/100G structured cabling system that employs parallel optics transmission. For 40G Ethernet, 4Tx and 4 Rx fibers are transmitted at 10G for an aggregate of 40G by utilizing a 12-fiber MTP MPO connector.
Likewise, a 100G Ethernet is to use 10 Tx and 10 Rx fibers that are transmitted at 10G for an aggregated of 100G by using a 24-fiber MTP MPO connector. Alternatively, 100G can use 2pcs of 12-fiber MTP MPO connector. However, the single port 24fiber connector is the preferred approach.

MPO Cable characteristic

1. Most cost effective solution for getting 40G/100G transmissions for short reach systems.
2. Pre-terminated 8-fiber, 12-fiber or 24-fiber MTP MPO solutions offered in customized configurations.
3. Specifically terminated with unique fiber channeling to cater for 40G/100G Ethernet.
4. High Density solution within tiniest physical space.
5. To support high bandwidth applications.

MPO Cable Specification


Unique Fiber Channeling for 40G/100G Ethernent
40G on 12-fiber MTP® Connector
Channel #1~4 for Rx
Channel #9~12 for Tx
Channel #5~8 unused

100G on 24-fiber MTP® Connector
Channel #2~11 for Rx
Channel #14~23 for Tx
Channel #1,12,13,24 unused

100G on 2pcs of 12-fiber MTP® Connector
Channel #2~11 for Tx to the firstly connector
Channel #2~11 for Rx to the second connector
Channel #1 & #12 unused for both end connector
Cable Structure
8F 12F or 24F Mini-fibers Cable

Cable Jacket Colors
Aqua - Multimode (OM3)
Heather Voilet - Multimode (OM4)

Connector Type Option
Pinned MTP® MPO (Male Type)
Non-pinned MTP® MPO (Female Type)

Available Fiber Mode Options
Multimode (OM3 & OM4)

Jacket Material Options
Riser (OFNR)
Low Smoke Zero Halogen (LSZH)
Plenum (OFNP)
PVC

MPO cable structure photo

MPO Multi Mode 8F 12F 24F OM3 Type A LSZH 3.0mm Mpo Cable

MPO Multi Mode 8F 12F 24F OM3 Type A LSZH 3.0mm Mpo Cable

MPO Multi Mode 8F 12F 24F OM3 Type A LSZH 3.0mm Mpo Cable

MPO cable Optical Performance

Content Standard MPO MTP connector Elite MPO MPT Connector
Fiber Mode Multimode Multimode
@850nm
 @850nm
Insertion Loss
≤0.60dB
 ≤0.35dB

Typical 0.25dB
Typical 0.10dB
Return Loss
≥20dB
≥20dB

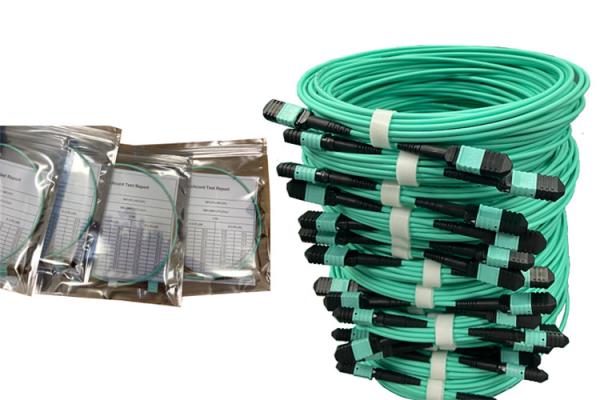

MPO cable production line
MPO Multi Mode 8F 12F 24F OM3 Type A LSZH 3.0mm Mpo Cable
Customized optical performance is available upon request, please contact BEGATE team for more details.
MPO Cable series optional products

MPO Multi Mode 8F 12F 24F OM3 Type A LSZH 3.0mm Mpo Cable

① MPO/MTP Trunk Cable
② MPO/MTP Harnesses Cables
③ MPO/MTP Fan out 0.9mm Patch Cords
④ IP-Series MPO/MTP Assembly
⑤ High Density Patch Cords
⑥ MPO/MTP Loopback
⑦ MT Patch Cords
⑧ MPO/MTP Cassettes
⑨ MPO/MTP Fiber Optic Patch Panel

Why choose Begate to buy MPO cable?

1. Own factory. We can save your money (Factory-sale),
2. Strong R&D ability
3. Strictly quality control with Reliable quality (2years warranty),
4. Fast delivery(within 7days)
5. No MOQ (1piece okay)
6. Credit supports.
7. Customization(Print your logo).
8. Free sample
9. One-stop procurement of products in the telecommunication industry can be achieved.
10. High efficient and professional sales and aftersales services, care bout partners benefits and win-win situation.

Fast talking to this sales for MPO cable

MPO Multi Mode 8F 12F 24F OM3 Type A LSZH 3.0mm Mpo Cable

Thank you very much for browsing our website and welcome your inquiry. Any more questions? please feel free to contact us now.

We will serve you wholeheartedly. Welcome to you back again.
