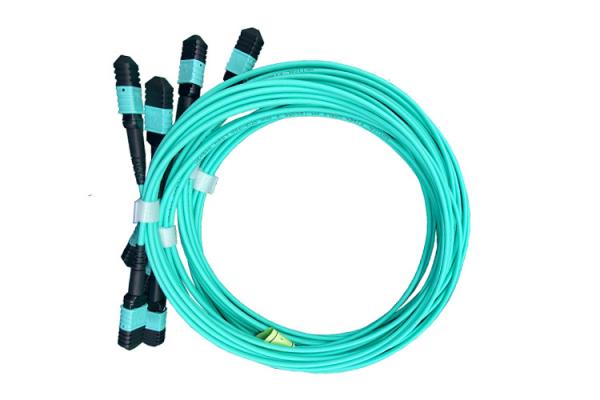

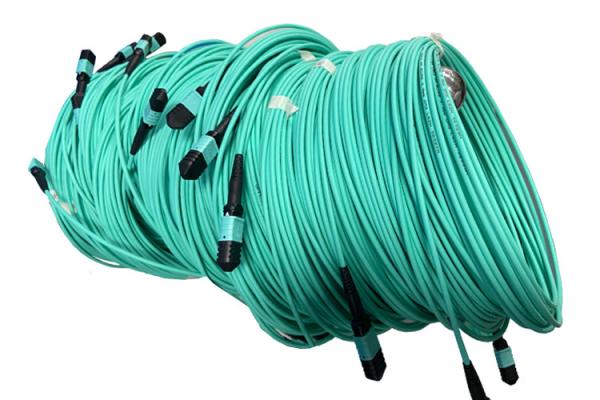

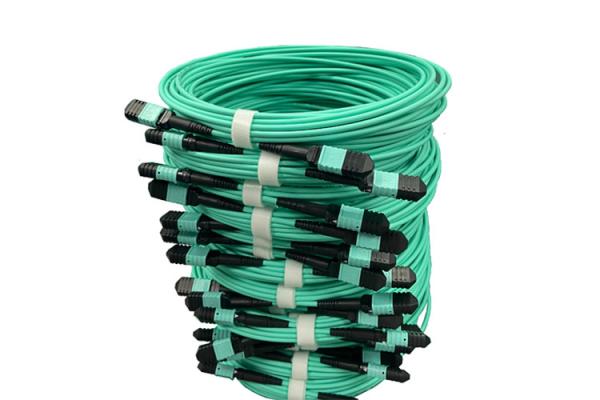

8F 12F 24F MPO Cable 3.0mm LSZH 3m OM3 Type B MPO Connector
8F 12F 24F MPO Cable 3.0mm LSZH 3m OM3 Type B MPO Connector
8F 12F 24F MPO Cable 3.0mm LSZH 3m OM3 Type B MPO Connector
8F 12F 24F MPO Cable 3.0mm LSZH 3m OM3 Type B MPO Connector
8F 12F 24F MPO Cable 3.0mm LSZH 3m OM3 Type B MPO Connector
8F 12F 24F MPO Cable 3.0mm LSZH 3m OM3 Type B MPO Connector
Specifications
Brand Name :
OEM and ODM
Model Number :
8F 12F 24F MPO Cable OM3 TypeB
Certification :
CE,ROHS,ISO9001,IEC and TIA
Place of Origin :
Made in China
MOQ :
1piece is okay. We are the professional manufacturer
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
3000pieces/day
Delivery Time :
Samples within 3 days, bulk orders within 12 working days
Packaging Details :
1piece / PE bag, 100piece / Carton
Connector type :
MPO Female or MPO Male
Endface :
PC or APC
Fiber count :
8F , 12F , 24F
Fiber Mode :
SM ( OS1 , OS2) , MM ( OM1 , OM2 , OM3 , OM4 , OM5 )
Cable Diameter :
2.0mm or 3.0mm or 4.0mm
Polarity :
Type A or Type B
Cable Jacket Material :
PVC , LSZH , OFNR , OFNP
Are you the factory? :
Yes, we are. Welcome to visit!
Description

8F 12F 24F MPO Cable 3.0mm LSZH 3m OM3 Type B MPO Connector

Features of MPO MTP Muilti fiber cable with MPO Connector

  1. Compliant with IEC and TIA requirements
  2. Optical performance 100% factory tested and endface geometry polishing controlled.
  3. Multi-fiber termination of 2F, 4F, 8F, 12F, 16F and 32F.
  4. Precision Multi-fiber Ferrule.
  5. Push-pull latching.
  6. Male and Female connector type.
  7. Rapid configuration and networking, reduce installation time.

MPO connector fiber optic performance

MPO/MTP Connector Standard SM Ferrule Low Loss(Elite) SM Ferrule Standard MM Ferrule Low Loss(Elite) MM Ferrule
Insertion Loss Typical (dB) 0.35 0.2 0.35 0.2
Maximum(dB) 0.75 0.35 0.6 0.35
Return Loss ≥60 for APC (8°Polish) ≥20 for PC
Male / Female Male:With Pins, Female:without pins

MPO connector fiber optic Geometric parameter of end face

Item Specification
SM MM
RX (mm) Min2000
RY (mm) Min5
Fiber Height(nm) 1000~3000
Max. Diff. Height All(nm) MAX: 500
Max. Diff. Height Adj.(nm) MAX: 300
X Axis Angle(°) -0.15 ~ 0.15 -0.20 ~ 0.20
Y Axis Angle(°) APC: 7.80 ~ 8.20 -0.20 ~ 0.20
Core Dip (nm) N/A -100 ~ 200

Structure of 8F 12F 24F MPO Cable 3.0mm LSZH 3m OM3 Type B MPO Connector

8F 12F 24F MPO Cable 3.0mm LSZH 3m OM3 Type B MPO Connector
8F 12F 24F MPO Cable 3.0mm LSZH 3m OM3 Type B MPO Connector
8F 12F 24F MPO Cable 3.0mm LSZH 3m OM3 Type B MPO Connector
100% pre-terminated and tested MPO cable MPO connector in Begate
8F 12F 24F MPO Cable 3.0mm LSZH 3m OM3 Type B MPO Connector
MPO cable MPO connector ordering information

  1. Connector Type1#: MPO-Female, MPO-male
  2. Endface1#:PC,APC
  3. Fiber Count: 2F, 4F, 8F, 12F, 24F 48F,72F,96F,144F, and customize
  4. Connector Type2#:MPO-Female, MPO-male, FC, SC, ST, MU, LC, E2000
  5. Endface2#:UPC,APC
  6. Fiber Mode: SM(OS1,OS2), MM(OM1,OM2,OM3,OM4)
  7. Cable Diamter:2.0mm, 3.0mm,4.0mm and customize
  8. Length:1m 2m 3m and customize
  9. Cable type:PVC ,LSZH, OFNR, OFNP

MPO cable MPO connector related series products

8F 12F 24F MPO Cable 3.0mm LSZH 3m OM3 Type B MPO Connector

  1. MPO/MTP Trunk Cable
  2. MPO/MTP Harnesses Cables
  3. MPO/MTP Fan out 0.9mm Patch Cords
  4. IP-Series MPO/MTP Assembly
  5. High Density Patch Cords
  6. MPO/MTP Loopback
  7. MT Patch Cords
  8. MPO/MTP Cassettes
  9. MPO/MTP Fiber Optic Patch Panel

FAQ

Q1: Are you a manufacturer?
A: Yes, we are a manufacturer who has 3 factories and welcome to visit!


Q2: What is your MOQ?
A: We are the factory. No MOQ, One piece is available.


Q3:Can you provide the OEM service?
A: Sure, we have the complete production line, we could do the production as your request.


Q4. Can I have a sample order for this product?
A: Yes, for patchcord, FREE SAMPLE is avaible to test and check quality. Mixed samples are acceptable.


Q5: How long is your delivery time?
A: Generally it is 2-5days if the goods are in stock. or it is 7-15 days if the goods are out of stock. The lead time mainly depends on quantity.


Q6: Can I negotiate the prices?
A:Yes, special discounts are available. The more quantities, the cheaper prices.


Q7: How much will the shipping charges be?
A:It depends on the size of your shipment and the method of shipping. We will offer the charge to you as per you requested.

Any more questions upon our products, and our company? please feel free to contact us at any time.

Thank you very much for browsing our website and welcome your inquiry. Any more questions? please feel free to contact us now.

We will serve you wholeheartedly.
