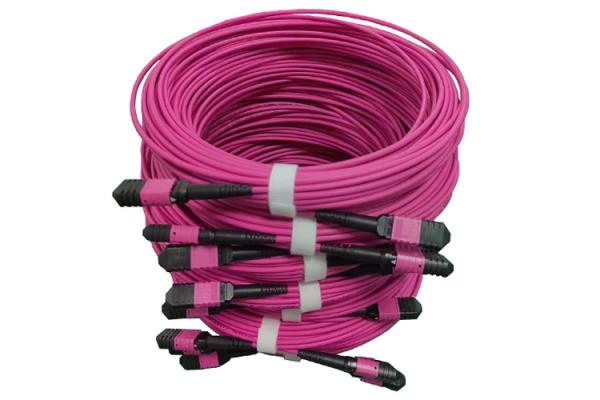

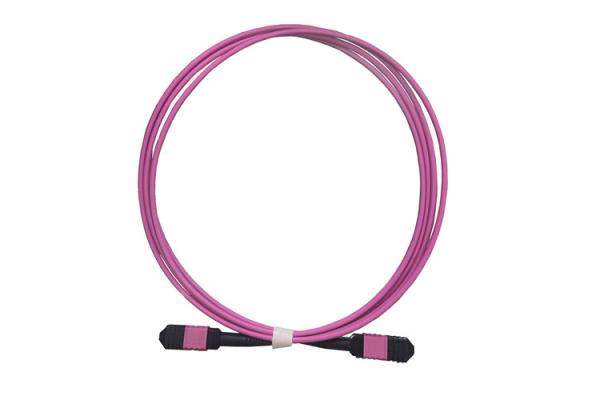

OM4 8Cores 12cores Female Elite MPO Patch Cable For QSFP Transceivers
OM4 8Cores 12cores Female Elite MPO Patch Cable For QSFP Transceivers
OM4 8Cores 12cores Female Elite MPO Patch Cable For QSFP Transceivers
OM4 8Cores 12cores Female Elite MPO Patch Cable For QSFP Transceivers
OM4 8Cores 12cores Female Elite MPO Patch Cable For QSFP Transceivers
OM4 8Cores 12cores Female Elite MPO Patch Cable For QSFP Transceivers
Specifications
Brand Name :
OEM and ODM
Model Number :
OM4 MM 8F Elite loss LSZH Type B
Certification :
CE, ROHS, ISO9001, IEC and TIA
Place of Origin :
Made in China
MOQ :
Professional manufacturer, 1 piece is available
Price :
USD 10.99 ~ USD 39.99 / piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram , Paypal , Cash
Supply Ability :
3000 pieces / day
Delivery Time :
Samples within 3 days, bulk orders within 12 working days
Packaging Details :
1piece / PE bag, 100piece / Carton
No. of cores :
8 cores , 12 cores , 24 cores
Jacket material :
LSZH , OFNR , OFNP available
Test Wavelength :
MM @ 850 / 1330nm
Standard Conformance :
GR-326 , GR - 1435
Warranty :
3 years
Optional connector brand :
China brand , Usconec , Senko , Nissin etc
Description

OM4 Multimode 8 Cores 12 Cores Female MPO Patch Cable For QSFP+Transceivers

BEGATE Offers MPO MTP - 8 / 12 Fiber Cable Assembly. It is a product designed for data center cable infrastructure with critical loss requirements. This cable assembly can be designed with 8 and 12 fiber cores in the MPO MTP connectors on both sides.

Features of MPO Patch cable

  1. 100% tested, high quality and reliability
  2. Ultra Low insertion loss
  3. Support OM3, OM4, SM optic fiber
  4. Special specification available upon custom request
  5. Male and Female connector type.
  6. Rapid configuration and networking, reduce installation time

Specification of Elit MPO MTP Patch cable

Insertion Loss (dB) SM Ultra Low Loss MM Ultra Low Loss
≤0.2 ≤0.2
Return Loss (dB) ≥60 ≥20
Durability (dB) ≤0.2 500 times mating
Tensile Strength (kgf) 10
Working Temperature (°C) -20 ～ +70
Measurement Wavelength (nm) 1310 850
Geometry Parameters
Item X-axis Y-axis
Min Max Min Max
Radius of Curvature (mm) 500 – 50 –
Polishing Angle 0-0.2 0+0.2 8-0.2 8+0.2
Item Min Max
Fiber Height (nm) 1000 3000
Max Fiber Height Error (nm) 600
Adjacent Fiber Height Error (nm) -300 300
Avg. Fiber Height Error (nm) -300 300
Central Concave (nm) 300

Structure diagram of 8 Cores 12cores MPO MTP Patch Cable

OM4 8Cores 12cores Female Elite MPO Patch Cable For QSFP Transceivers

OM4 8Cores 12cores Female Elite MPO Patch Cable For QSFP Transceivers

MPO MTP Patch Cable production line

OM4 8Cores 12cores Female Elite MPO Patch Cable For QSFP Transceivers

Begate MPO MTP Patch Cable are 100% tested, high quality and reliability

OM4 8Cores 12cores Female Elite MPO Patch Cable For QSFP Transceivers

Packaging and shipping of Begate MPO MTP Patch cable

Every cooperation is a kind of trust, Begates cares about the issues that our customers care about.

While ensuring product quality, we provide customers with safe packaging, so that the goods can be delivered to customers in good condition.

OM4 8Cores 12cores Female Elite MPO Patch Cable For QSFP Transceivers

Question: How long is shipping take typically?

Reply: The delivery time depends on the goods quantities. If light weight, by express (DHL, FEDEX, TNT, UPS, Special line) will take about 10-15days, if large quantities with big volume, and goods are not in urgently needed, by ocean transportation will be more cost effective, it will take around 30-60days.

Thank you very much for browsing our website and welcome your inquiry. Any more questions? please feel free to contact us now.

We will serve you wholeheartedly.
