19″ 1U 144 Fibers MPO To LC Loaded Patch Panels For Cabling Constructions
19″ 1U 144 Fibers MPO To LC Loaded Patch Panels For Cabling Constructions
19″ 1U 144 Fibers MPO To LC Loaded Patch Panels For Cabling Constructions
19″ 1U 144 Fibers MPO To LC Loaded Patch Panels For Cabling Constructions
19″ 1U 144 Fibers MPO To LC Loaded Patch Panels For Cabling Constructions
19″ 1U 144 Fibers MPO To LC Loaded Patch Panels For Cabling Constructions
Specifications
Brand Name :
OEM and ODM
Model Number :
1U 144F
Certification :
CE,ROHS,ISO9001,IEC and TIA
Place of Origin :
Made in China
MOQ :
NO MOQ, 1 piece is ok.
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal , Cash
Supply Ability :
500 pieces / day
Delivery Time :
Samples within 3 days, bulk orders within 15 working days
Packaging Details :
1piece / gift box; 3pieces / carton
Fiber Capacity :
144 fibers with LC adapters.
Material :
Cold Rolled Steel Sheet
Thickness :
1.2mm and 1.5mm
Features :
Modular, 12 modules MPO/MTP to LC.
Accessories :
Cable management and labels included.
Service Life :
20 years
Description

MPO / MTP Patch Panel 19″ 1U 144 fibers MPO to LC loaded for Cabling Constructions


Overview of 1U 144 Fibers MPO to LC loaded for cabling constructions

Ultra High Density (UHD) Patch Panel is specially designed to accommodate high density cabling in high end data centers and telecommunication central office environments. Designed to accommodates LC duplex adapters allows for smooth patching and easy LC port access. The 19" 1RU 144 fiber MPO Ultra High Density Panel contains factory controlled and tested MPO - LC Fiber Hydra Cable to deliver optical performance and reliability. Low loss MTP/MPO-LC Fiber Hydra Cable versions are offered featuring signicantly improved low-insertion losses for demanding low power budgets and high speed networks.

Features of 1U 144 Fibers MPO to LC loaded for cabling constructions

  1. Compact 1 U size saves space and makes the panel compatible with copper racking system
  2. Ultra high density 1U panel can scale up to 144 discrete LC front ports and up to 12 MTP/MPO rear interfaces
  3. Rapid deployment - Factory pre-populated panel saves installation time
  4. Easy installation
  5. MTP/MPO components feature superior optical and mechanical properties
  6. Factory terminated and tested

Application of 1U 144 Fibers MPO to LC loaded for cabling constructions

  1. Data centers, pre-terminated installations
  2. Telecommunication networks
  3. Storage area networking fiber channel
  4. High density architectures
  5. Machine Room Cabling Management

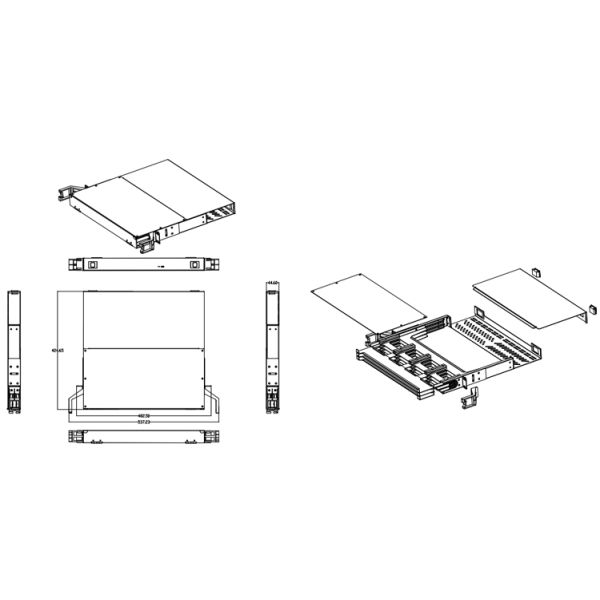

Technical specification of 1U 144 Fibers MPO to LC loaded for cabling constructions

19″ 1U 144 Fibers MPO To LC Loaded Patch Panels For Cabling Constructions

Optical Parameters
Insertion Loss (dB)SM StandardSM EliteMM StandardMM Elite
≤0.7≤0.35≤0.7≤0.35
Return Loss (dB)≥60≥20
Durability (dB)≤0.2 500 times mating
Tensile Strength (kgf)10
Working Temperature (°C)-20 ～ +70
Measurement Wavelength (nm)1310850
Geometry Parameters
ItemX-axisY-axis
MinMaxMinMax
Radius of Curvature (mm)500–50–
Polishing Angle0-0.20+0.28-0.28+0.2
ItemMinMax
Fiber Height (nm)10003000
Max Fiber Height Error (nm)600
Adjacent Fiber Height Error (nm)-300300
Avg. Fiber Height Error (nm)-300300
Central Concave (nm)300

LC/SC/FC Fiber Connector
Fiber ModeSingle Mode MM Multimode
Connector PolishingPCAPCPC
Insertion Loss(dB)≤0.3
Return Loss (dB)≥50≥60≥35
Repeatability (dB)≤0.2 1000 times mating
Working Temperature (℃)-40 ～+85
Measurement Wavelengths (nm)1310 850


Any more questions ?

Our informative and experienced representatives are ready to assist you with any questions that you might have, regarding your fiber optic network. We offer a superior selection of quality products as well as competitive pricing to help get your project completed and under budget.
