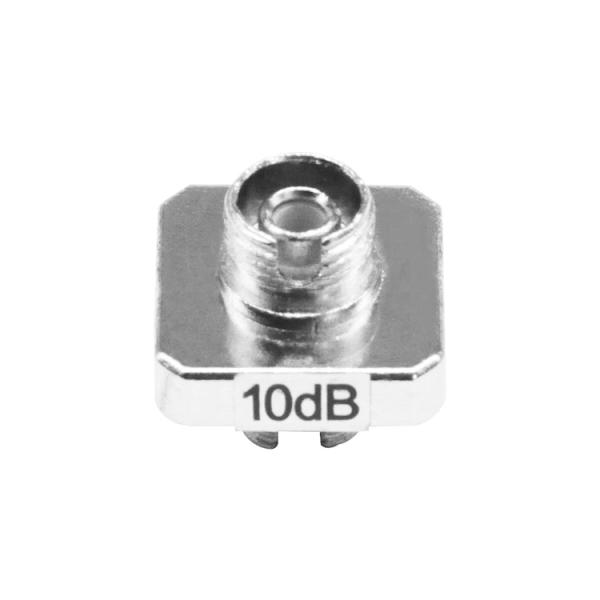

10db FC Female To FC Female Fiber Optic Attenuator With Communication Equipment

Product Introduction of Fiber Optic Attenuator:

Attenuator optic attenuator is a precise device that can provide different attenuation for needing.They are used in the transmit line of fiber.There are two kinds of attenuator,alterable and fixable .The attenuation form 1dB to 65dB.
Optic attenuator is a precise device that provide the attenuation form 1dB to 65dB.It is design under the international standard and accord with the standard of IEC.It is largely used in the area of optic communication.
Fixable attenuator can be adjusted in need of the project.It is used in many fiber transmissions.There are three kinds of these products,FC/SC/ST convertor,high return lossof FC/SC type,high return loss of online type.

Features of Fiber Optic Attenuator:

♦ Accored with the standard of IEC
♦ Low excess loss
♦ High precission of the attenuation
♦ Small bulk and light weight
♦ High stability and reliablity
♦ Precise attenuation values
♦ Low PDL & insertion loss
♦ Precisional reflection polishing
♦ The flexible case for easy portability
♦ Accurate size armed with elegant dust cap, better ensure the handy installation and protection from out-service.
♦ Durable metal shell for permanent protection
♦ Shaped with metal material, our attenuators perfectly protect the core insert from external damage.

Applications of Fibre Optic Attenuator:

♦ Optic fiber communication
♦ LAN
♦ Optic fiber CATV
♦ Testing and others

Technique Parameters of Fiber Optic Attenuator:

Details of Fiber Optic Attenuator:

Other Types:

Optical fiber attenuators are classified into the following four types according to the interface:

♦ SC fiber attenuator: applies to the SC fiber interface, which is similar to the RJ-45 interface, but the SC interface is flatter and the contact plate inside is a copper column.Fixed the attenuation power of the optical fiber attenuator is fixed, such as 1dB, 5dB, or 10dB. For example, the attenuation power of a -3 db optical fiber attenuator is 3dB. Such fiber attenuators are commonly used in telecommunications networks, fiber optic test equipment, local area network (LAN) and cable television (CATV) systems. Fixed fiber attenuator can be divided into line type and connector type.

♦ LC optical fiber attenuator: Applied to LC optical fiber interface, can be used to connect SFP module, adopts modular jack (RJ) latch mechanism, easy to operate, often used in routers;The connector optical fiber attenuator has the same appearance as the optical connector. The only difference is that the two ends of the connector optical fiber attenuator are male connector ports and female connector ports. The optical fiber attenuator either uses air gaps to achieve attenuation, or attenuates the optical fiber by mixing metal ions to achieve attenuation.

♦ FC fiber attenuator: Used for FC fiber interfaces. The outer layer is wrapped with a metal jacket and fastened by turnbuckle. Generally used in ODF side, mostly used for distribution frame;The attenuation power of the adjustable fiber attenuator is not static, but changes with the change of conditions. The change span is 0.5dB, 20dB, 50dB, etc., and some even reach the accuracy of 0.1dB and 0.01dB. Tunable fiber attenuators are generally used to accurately test and measure optical fibers, and are also widely used in Erbium-doped fiber amplifiers. Their function is to balance the optical signal power in different channels.

♦ ST fiber attenuator: Applied to the ST fiber interface. It is usually used on the fiber distribution frame. The enclosure is round and fastened by turnbuckles.
