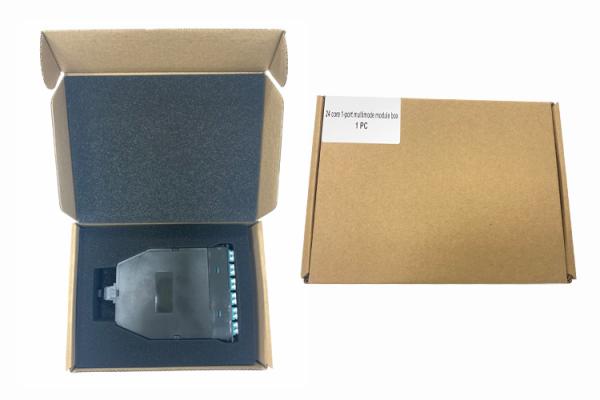

MPO MTP to LC DX 50/125 Multimode OM4 Fiber Optic Cassette Type A

Overview of MPO MTP Cassette

MPO MTP Fiber modules provide a quick and efficient way to deploy up to 24 LC or 12 SC fiber ports in a single module. These factory terminated and tested ports are protected within the housing for reliably high performance and simply connected via 12-strand MPO MTP ports. Modules are available in OM3 ,OM4 & SM fibre. Modular fiber cassettes are enclosed units that contain 12 or 24–fiber factory terminated fan-outs inside.These cassettes serve to “transition” small diameter ribbon cables terminated with a MPO MTP connector to the more common LC or SC interface used on the transceiver terminal equipment. The fan-outs typically incorporate SC, LC connectors plugged into adapters on the front side of the cassette and a MTP connector plugged into a MPO MTP adapter mounted at the rear of the cassette. One or more MPO MTP fan-out assemblies may be installed inside the cassette to connect up to two 12-fiber ribbon cables for a total of 24 fibers. Alignment pins are pre-installed in the MPO MTP connector located inside the cassette.

Features of MPO MTP Cassette

1. Easy to use, convenient plug and play installation
2. Enhanced cabling manageability
3. Pre-terminated fiber MPO adapter at the rear, choices of SC, ST, LC adapters at the front panel
4. Pre-terminated with factory-terminated & factory-tested MPO/MTP hydra assembly inside cassette modules
5. High density cassette solution
6. The MPO fiber cassette itself is a combination unit for the fan-out MPO fiber patch cables with the metal closure, it is very compact size. There are 2 configurations of the MPO cassette (same size closure), typically it is with LC or SC connectors, there are 1 MPO to 12LC/SC or 1MPO to 24LC, all these connectors can be single mode or multimode, UPC or APC.

Application of MPO MTP Cassette

1. CATV, metro test equipment
2. Telecommunication networks
3. Local area networks (LAN)
4. Wide area networks (WAN)
5. Premise installations

Technical specification of MPO MTP Cassette

Diagram structure of MPO MTP Cassette

Begate MPO/MTP® Fiber Optic Cassette Module are designed for secure transition between MPO/MTP® and LC or SC discrete connectors.It’s suitable for high-density back plane and data center cabling which offers excellent benefits in terms on-site installation time and space saving. We provide MPO/MTP® Fiber Optic CassetteModulekit that include pre-terminated fanout fiber cable and empty cassette module for different application. MPO/MTP® Cassette box are built with highest quality components. It provides a quick,reliably,high performance andefficient way to deploy up to 24 LC or 12 SC fiber ports in a single module. The Cassette Modules can be mountedin1U, 2U, 3U or 4U 19” multi-slot MPO Panel.

Production line of MPO MTP Cassette

We are dedicated to providing customers with the outstanding, standards-compliant products and services.
Begate has passed ISO9001 quality system verification, and our products are approved by CE, RoHS. Compliant with IEC and TIA requirement. We established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

Please Note: Each fiber patch cable is 100% optically inspected and tested for insertion loss before you receive it.
