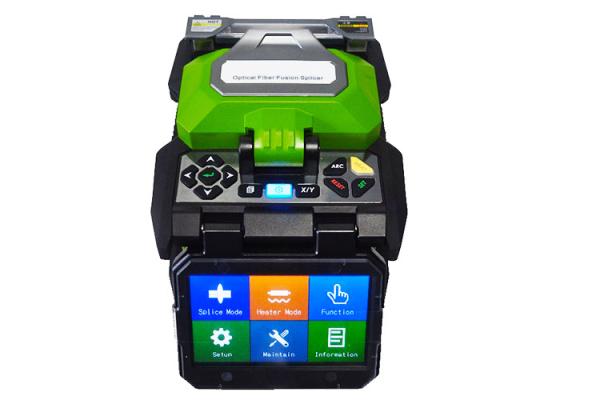

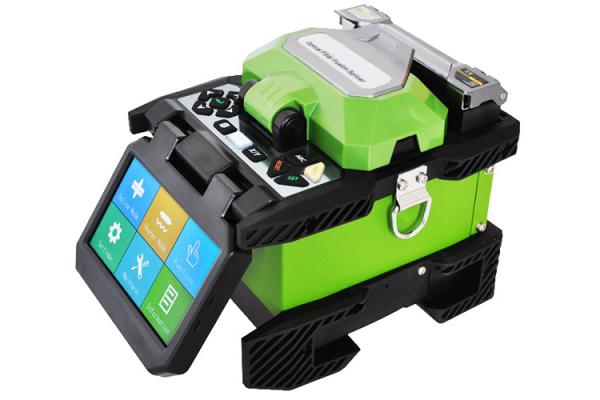

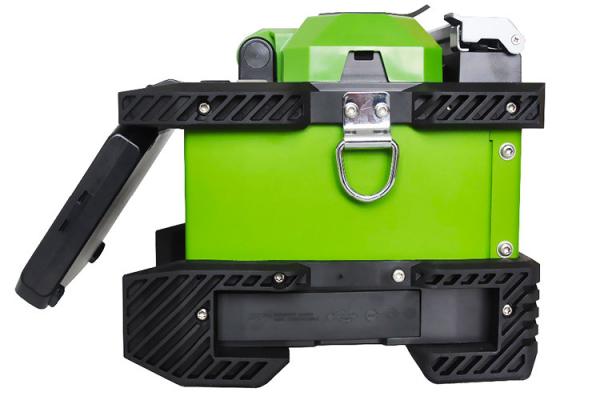

Splicing Machine Fiber Optic Fusion Splicer JW4106S Fiber Optic Tool Kit

Product Overview of Fusion Splicer:

JW4106S(AV6481) Optical Fiber Fusion Splicer mainly used for the permanent splice of optical fibers, it is widely applied in fiber communication projects and production test of passive optical devices. The splicer can splice diverse quartz optical fibers with the cladding diameter of 80µm~150µm, for instance, single-mode, multimode, non-zero dispersion, dispersion shifted and bending-loss insensitive fibers. As an instrument integrating optic, mechanical and electrical property, the splicer should be kept clean, and avoid severe vibration or shocks.

Features of Fusion Splicer:

• Touch Screen with 4.3-inch LCD display
• Small and light, easy to carry
• USB and SD card interfaces, U-disk automatic software upgrade
• Built-in modular lithium battery, supports 280 times of splicing and heating cycles.
• Precise fiber core alignment, ultra-low fiber fusion splicing consumption
• 7s fast fusion splicing, 18s highly efficient heating.
• 320 times image magnification, 5mm fusion splicing for fibers of ultra-short cutting length
• 300 groups of fusion splicing modes, 100 groups of heating modes
• 10000 groups of fusion records, 64 images storage
• Ceramic presser foot, precise V-block, 3 in 1 fixture for bare optical fiber, tail optical fiber, jumper wire, covered wire
• Automatic splicing, intelligent pyrocondensation
• Water-resistant, dust-resistant and shock-resistant in design

Advantages:

Small in size and light in weight, the splicer is easy to carry and can be lift by one hand. Dust-resistant, water-resistant meeting IP52 requirements, shock-resistant. Compared with AV6471, our star product, JW4106S lowers the size by 38%, the weight by 52%, the power consumption by 57%, but improves the speed by 60%, the environment adaptability by 80% and the reliability (MTBF) by 200%.

Technology Specifications of Fusion Splicer:

Standard configuration:

Details of Fusion Splicer:

FAQ:

Q1. Could you offer samples?
Yes, samples are accepted.You need place sample order to us, and we will reduce from bulk order.

Q2. What's the delivery time for sample order?
Normally about 3days after confirmation.

Q3. What's the delivery time for bulk order?
Normally 5-10 days depends on products and order quantities.

Q4. Could you do design for us?
Yes, we provide customized service and can do artworks including printing, logo etc. for you.

Q5. What's the payment terms?
TT, WesternUnion, Escrow(secure payment), Trade assurance, Cash, etc.

Q6. Can I use my own LOGO and design on products?
YES, OEM is welcomed.

Q7. How to send the goods?
Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Q8. Certificates:
ISO9001:2015, CE, China Radio and television equipment network access certification

Q9. Small order available? Order MOQ?
Yes sure, Normally10kms per one specification. For support new customers, we know business always comes from small order.

Q10. Design:
OEM/ODM service available. Cable design and package design also available.
You can share us your requirement.
