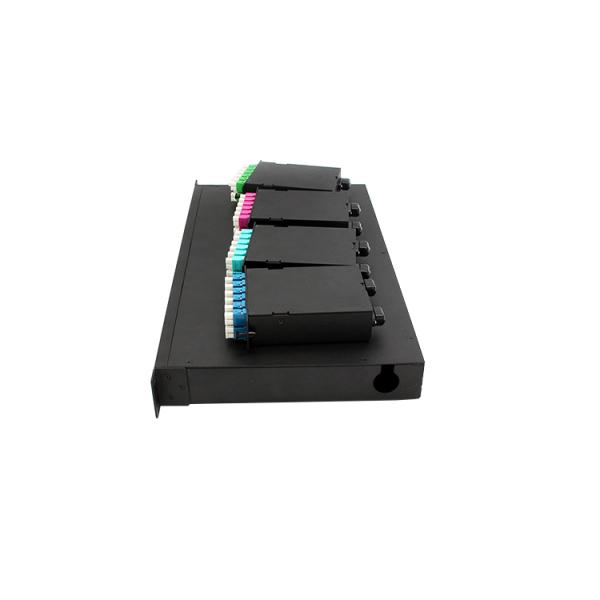

1U 96F MPO MTP Patch Panels
1U 96F MPO MTP Patch Panels
1U 96F MPO MTP Patch Panels
1U 96F MPO MTP Patch Panels
1U 96F MPO MTP Patch Panels
1U 96F MPO MTP Patch Panels
Specifications
Brand Name :
OEM or ODM
Model Number :
Rack Mount MPO MTP Patch Panels To LC Connectors Optic Patch Panel
Certification :
CE/RoHS/ISO9001
Place of Origin :
Shenzhen, China
MOQ :
We are the factory. No MOQ, 1piece is ok.
Price :
Negotiable
Payment Terms :
Western Union, D/A, D/P, MoneyGram, L/C, T/T, PayPal,
Supply Ability :
60000 Piece/Pieces per Week
Delivery Time :
Samples within 3 days, bulk orders within 15 working days
Packaging Details :
1 PCS Carton box
Product name :
Rack Mount MPO MTP Patch Panels
Color :
Black
Standard Size :
1U
Size :
19 rack mounted
Body Material :
Cold Rolled Steel
Connector :
SC,LC/SC/FC/ST/MPO,LC,FC,MPO/ MTP
Aapter optional :
MPO MTP LC
Use :
FTTH Data center CCTV network system
Description

1U 96F Rack Mount MPO MTP Patch Panels To LC Connectors Optic Patch Panel


Product Description of MPO MTP Patch Panels:

MPO/MTP Rack Mounted Fiber Optic Patch Panel or MPO/MTP ODF can be applied in the storage of indoor optical cable, distribution and terminal connection of various optical fiber system, Available for the rack installation of adaptors for FC,SC,ST,LC and so on. The case body is made of cold rolled steel sheet, available for adaptors installation such as FC, SC, ST, LC etc.

High Density (HD) Series patch panels offer an extra slot that accepts up to four adapter panels or MPO cassettes in the 1RU footprint. This design has been accomplished by staggering the mounting ears. The HD patch panels are ideal for high fiber count applications and will fit into any standard 19” or 23” rack by rotating the panel’s mounting ears.

Features of MPO MTP Patch Panels:

  1. MTP/MPO standard compliant multifibre connector
  2. LC (SFF data center standard), SC discrete interface
  3. OS1/2, OM3, OM4 fibre grades (OM1 and OM2 available)
  4. 12 and 24 fibre versions - 12 LC (Duplex) / SC (Simplex) optical parts
  5. Polarity A (standard), B or C
  6. Factory terminated and tested
  7. High performance zirconia sleeve adaptors
  8. Fixed type, with PC material front transparent cover, convenient for observation and maintenance
  9. Its cover is easy to open and close by using button

Applications of MPO MTP Patch Panels:

  1. MPO/MTP Trunk Cable
  2. MPO/MTP Harnesses Cables
  3. MPO/MTP Fan out 0.9mm Patch Cords
  4. IP-Series MPO/MTP Assembly
  5. High Density Patch Cords
  6. MT Patch Cords
  7. MPO/MTP Fiber Optic Patch Panel
  8. Data centers,pre-terminated installations
  9. Telecommunication networks
  10. Available in SM, OM1, OM2, OM3 and OM4 fiber grades
  11. Flat Front Panel for Optimal Cable Routing
  12. Removable Top for Easier Fiber Cable Management
  13. Easily Accessible MPO/MTP Ports for Connection to Trunk Cable
  14. 24 Fibre ferrule MPO/MTP® interface
  15. Premium LC Low Loss terminations
  16. Fiber Channel
  17. Emerging 40 and 100Gbps protocols compatible

1U 96F MPO MTP Patch Panels

Technical Parameter of MPO MTP Patch Panels:

1.

Product name FHD 1U MPO&MTP-LC Rack mount patch panel Fiber Count Max.96 Fibers
Enclosure Type Rack Mountable Material CRS Cold rolled steel
Installation Standard EIA 19" Rack Dimensions (HxWxD) 44.5*483mm*250mm
Compliant TIA/EIA-568-C.3 Advantage High Density Patching System

2.

Type Size(cm) Max capacity Outer carton diameter(cm) Outer carton diameter
UF-JJ-CL-1U 48.2*30*1U 24 48.5*42*35/5pcs 27.5
UF-JJ-CL-2U 48.2*30*2U 72 49.5*34*54.5/4pcs 26.4
UF-JJ-CL-3U 48.2*30*3U 96 50*35*54/3pcs 23.1
UF-JJ-CL-4U 48.2*30*4U 144 50*35*54/2pcs 18.9


Detil of MPO MTP Patch Panels:

1U 96F MPO MTP Patch Panels

FAQ:

Q: Are you trading company or manufacturer ?
A: We are factory

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantit

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Q: Do you accept OEM or ODM?
A: Yes,we're factory. any your customized requirements we can do our best to help you realize.
