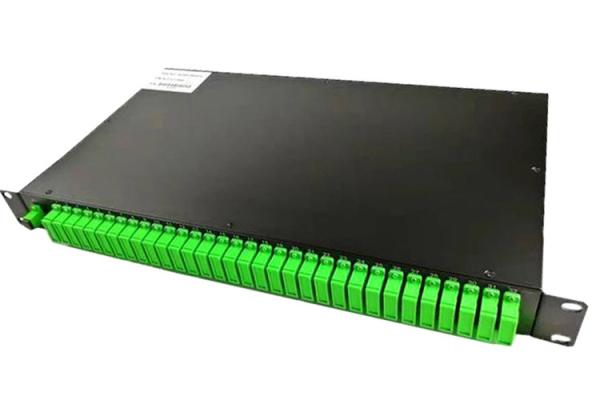

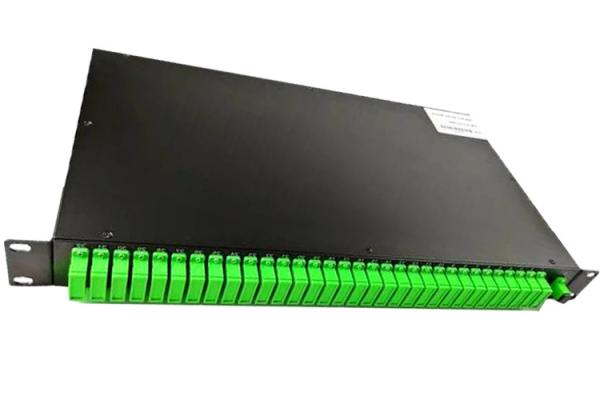

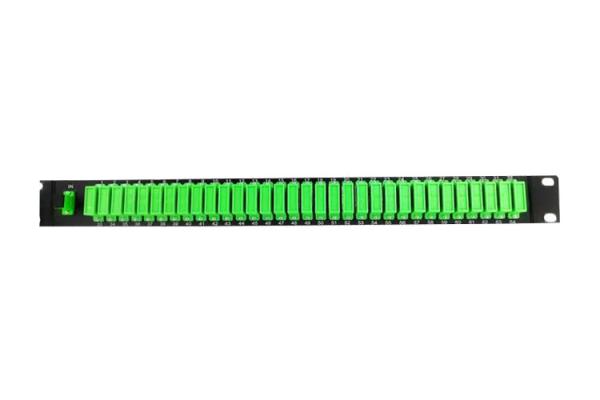

Green Black 1X32 Rack Mounted Fiber Optic Plc Splitter With SC APC Fiber Adapters

Specifications

Brand Name :

Begate

Model Number :

1X32 Racks Mount SC APC PLC Fiber Optic Splitter

Certification :

CE/RoHS/ISO9001

Place of Origin :

Shenzhen, China

MOQ :

We are the factory. No MOQ, 1piece is ok.

Price :

Negotiable

Payment Terms :

T/T, Western Union, L/C, D/A, D/P, MoneyGram

Supply Ability :

80000 Piece/Pieces per Month

Delivery Time :

Samples within 3 days, bulk orders within 15 working days

Packaging Details :

1.10-20pcs in one inner carton or 1pcs in a plastic box 2.200pcs PLC splitter in one outer carton.

Fiber type :

G657A,Single Mode,G652D or client requirments,0.9mm or 250um bare,0.9mm/2.0mm

Application :

FTTH FTTB FTTX Network,Splitter,LAN,Fiber to home,PON & Optical CATV

Material :

ABS and PC,PVC option,fiber,ABS+PC,connector

Operating temperature :

-40℃ to 85℃,-10 ~ +70 ℃,-40℃ ~ 85 ℃

Item :

Fiber Optic Splitter,rack mount plc splitter 1X32

Storage temperature :

-40 ~ +85 ℃,- 45~+85℃

Insertion loss :

7.0dB,≤0.1dB

Return loss :

≥55dB,≥ 45dB

Description

Fiber Optic Plc Splitter 1X32 Rack Mounted With SC APC Fiber Adapters Green Black

Products description of Fiber Optic PLC Splitter:

The PLC Splitters is branching devices that is used to distribute optical signals to multiple locations for processing.In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal.PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology.They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications.

Technical Specifications of Fiber Optic PLC Splitter:

Parameters	1X2	1X4	1X8	1X16	1X32	1X64	1X128
Operating Wavelength (nm)	1260~1650
Fiber Type	G657A1 or customer specified
Insertion Loss (dB) (P/SGrade )	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Return Loss (dB) ( P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50	55/50
Directivity (dB)	55	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Stability	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Operating Temperature (℃)	-40~85
Storage Temperature ((℃))	-40~85
Device	40x4x4	40x4x4	40x4x4	50x4x4	50x7x4	60x12x4	N/A
Dimension (mm)	40x4x4	40x4x4	40x4x4	50x4x4	50x7x4	60x12x4	N/A
Module Dimension (mm)	100x80x10	100x80x10	100x80x10	120x80x18	140x115x18	140x115x18	140x115x18
Mini-Module Dimension (mm)	50x7x4	50x7x4	50x7x4	60x12x4	80x20x6	100x40x6	N/A

Features of Fiber Optic PLC Splitter:

Good uniformity and low insertion loss
Low Polarization Dependent Loss
Excellent Environmental Stability
Excellent Mechanical
Stability Telecordia GR-1221 and GR-1209
Components through TLC-Certified,Conform to YD1117-2001

Applications of Fiber Optic PLC Splitter:

Fiber to the point (FTTX)
Fiber to the home (FTTH)
Passive optical networks(PON)
Local area networks (LAN)
Cable television (CATV)
Test equipment
