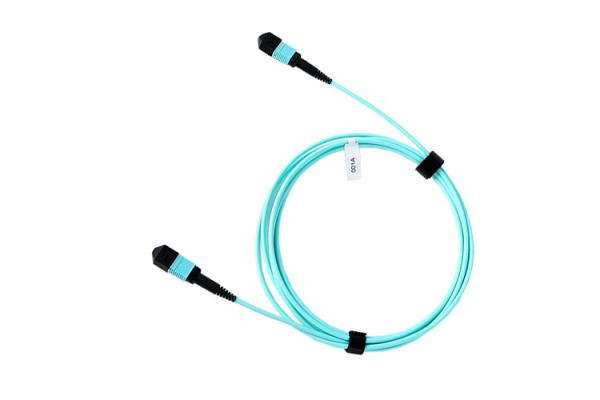

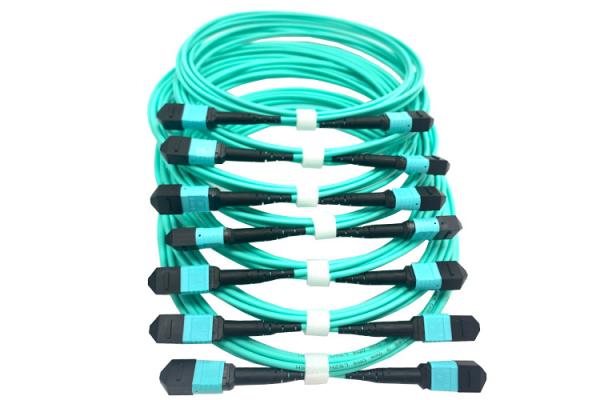

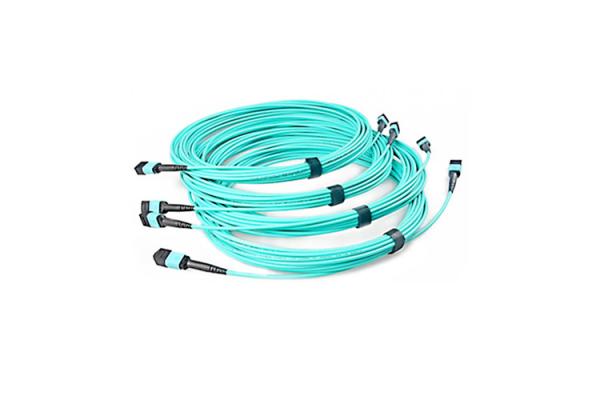

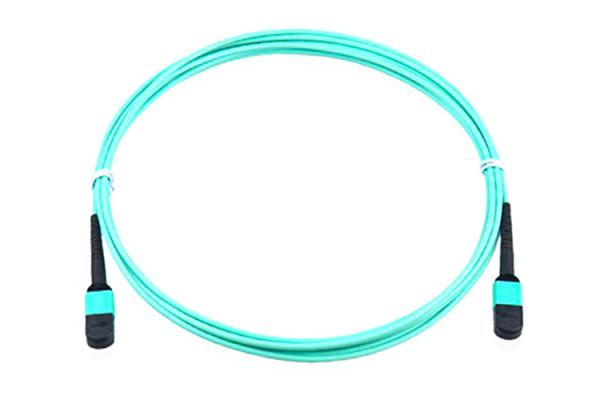

Female To Male Fiber Patch Cord OM3 3M MPO MTP Trunk Cables Aqua Blue
Female To Male Fiber Patch Cord OM3 3M MPO MTP Trunk Cables Aqua Blue
Female To Male Fiber Patch Cord OM3 3M MPO MTP Trunk Cables Aqua Blue
Female To Male Fiber Patch Cord OM3 3M MPO MTP Trunk Cables Aqua Blue
Female To Male Fiber Patch Cord OM3 3M MPO MTP Trunk Cables Aqua Blue
Female To Male Fiber Patch Cord OM3 3M MPO MTP Trunk Cables Aqua Blue
Female To Male Fiber Patch Cord OM3 3M MPO MTP Trunk Cables Aqua Blue
Female To Male Fiber Patch Cord OM3 3M MPO MTP Trunk Cables Aqua Blue
Specifications
Brand Name :
Begate，or Custom
Model Number :
MPO MTP Cable SM Fiber Patch Cord
Certification :
CE,ROHS,ISO9001,IEC and TIA
Place of Origin :
Shenzhen, China
MOQ :
We are the professional manufacturer , NO MOQ
Price :
To be Negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A, D/P, Paypal , Cash
Supply Ability :
3000 pieces / day
Delivery Time :
Samples within 3 days, bulk orders within 12 working days
Packaging Details :
1.Electrostaticsproof packaging 2. Outer Carton 3. Customized Request
Product name :
OM3 MPO MTP Fiber Optic Patch Cord
Connector Type :
MPO / MTP , OM3
Application :
Telecom Comunication
Insertion Loss :
Elite: ≤0.35dB (0.15dB Typ.)
Warranty :
10 years
 Environment :
Operating: -20°C to 70°C
Fiber Mode :
Single Mode
Length :
Customized Lengths(1m/2m/3m+1,1M,5M or customized,3M,1~100 M
Description

MTO Patch Cord Female To Male Fiber OM3 3M APC UPC MPO MTP Trunk Cables Aqua Blue

Product Introduction of MPO MTP Cable:

MTP fiber patch connectors make use of precision molded MT ferrules with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. MTP fiber cable can be mass terminated in combinations of 4, 8, 12, 24 and 48 fiber ribbon cables and are typically used in high-density backplane and Printed Circuit Board (PCB) applications within data and telecommunications systems.

MPO connector is a multi-core multi-channel plug-in connector, which is composed of a pair of MT sleeves, two guide pins, two shells and an adapter. Its standard feature is to use a guide hole and a guide pin with a standard diameter of 6.4 mm x 2.5 mm on the end face of a rectangular plug core for positioning and alignment.

Application of MPO MTP Cable:

  1. Data Centre Infrastructures
  2. Wiring of local area network between different enterprise buildings
  3. Connection of optical links in optical active devices
  4. Wiring in communication base station and distribution case
  5. Production and testing of optical devices
  6. Telecomunication Infrastructures
  7. LANs and WANs
  8. FTTx
  9. Optical fiber communication system, CATV and telecommunication network

Features of MPO MTP Cable:

  1. Backbone installation
  2. Compliance with Telcordia GR-1435-Core Compliant
  3. US Conec MTP/Senko MTP/OPTICO MPO connectors are available
  4. High quality ferrule and accurate alignment by PIN and PIN hole
  5. Low insertion loss and high return loss
  6. High interchangeability and durability
  7. MPO fiber optic patch cord comes in many types and design blueprint can be provided quickly.
  8. Compliant with Telcordia GR-326-CORE, IEC and RoHS standards
  9. MTP is optional.
  10. 100% 3D tested/End surface tested/Loss tested/Polarization before delivery

Female To Male Fiber Patch Cord OM3 3M MPO MTP Trunk Cables Aqua Blue

Technical Specificaitons of MPO MTP Cable:

Item Adventum Mini-cores
Type OS1 OM1 OM2 OM3 OS1 OM1 OM2 OM3
Singlemode (9/ 125um) Multimode (62.5/ 125um) Multimode (50/ 125um) Multimode Singlemode (9/ 125um) Multimode (62.5/ 125um) Multimode (50/ 125um) Multimode
(50/ 125um (50/ 125um
10Gig) 10Gig)
Wavelength (nm) 1310/ 1550 850/ 1300 850/ 1300 850/ 1300 1310/ 1550 850/ 1550 850/ 1550 850/ 1550
Attenuation (dB/KM) 0.5/0.4 3.5/ 1.0 3.0/ 1.0 3.0/ 1.0 0.4/0.3 3.5/ 1.5 3.5/ 1.5 3.5/ 1.5
Bandwidth N/A 200/500 950/500 2000/500 n/a ≥300 / ≥300 ≥200 / ≥300 ≥ 1500 / ≥500
(MHz*km)
*OM3 10Gig Transmission distance at 850/ 1300 is 300 meters*

Production Process of MPO MTP Cable:

Female To Male Fiber Patch Cord OM3 3M MPO MTP Trunk Cables Aqua Blue

Packaging:

Female To Male Fiber Patch Cord OM3 3M MPO MTP Trunk Cables Aqua Blue

Why choose Begate?

  1. We can reduce your costs(Factory-sale)
  2. Reliable quality(2years warranty)
  3. Fast delivery(within 7days)
  4. Customization(Print your logo).
  5. No MOQ (1piece okay)
  6. Credit supports.
  7. Free sample
  8. High efficient and professional sales and aftersales services.
  9. One-stop services.

Female To Male Fiber Patch Cord OM3 3M MPO MTP Trunk Cables Aqua Blue

Thank you very much for browsing our website and welcome your inquiry at any time. We will serve you wholeheartedly.
