Waterproof ODVA-MPO SM MM 8F 12F 24F MTP MPO fiber cable assemblies

Overview of ODVA to MPO fiber cable assemblies

ODVA-MPO assemblies provide an environmental seal and mechanical protection for muti fibers MPO style connections. The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and bayonet-style mechanical latch.

ODVA-MPO provides quick installation solutions and has good performance on mating with ODVA receptacle. Cable can be amored or non-amored. The industrial multi fiber MPO assembly has been ratified as a ‘Standard Interface’ in the ODVA*(Open DeviceNet Vendors Association) as a next-generation industrial interconnect.

The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection. The new industrial integrated flange-mount adapters are designed for tight, side-by-side applications.

Features of ODVA to MPO fiber cable assemblies

• Provides moisture and dust protection for use in harsh industrial environments.
• IP67 protection, salt-mist proof, humidity proof, dust proof.
• Sealed panel feed-through design for easy installation into enclosures.
• 100% optically tested to ensure quality performance assemblies.
• Available in single mode and multimode styles to work with any common fiber type
• Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal
• Broad temperature range (-40 to+85°C) is ideal for indoor or outdoor applications

Application of ODVA to MPO fiber cable assemblies

• FTTA,FTTH Application.
• 3G,4G,5G Base Station.
• Horizontal and Vertical Cabling.
• BBU,RRU,RRH,LTE

Technical specification of ODVA to MPO fiber cable assemblies

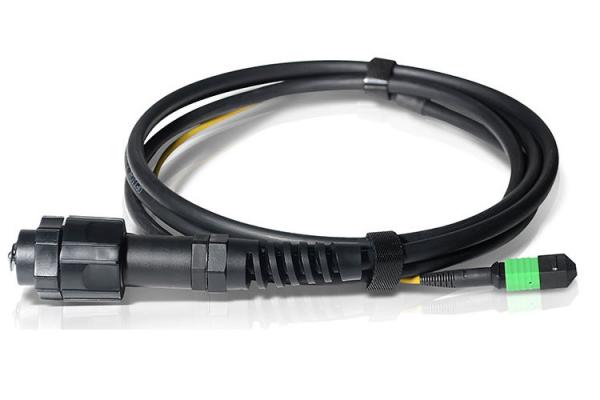

Structure photo of ODVA to MPO fiber cable assemblies

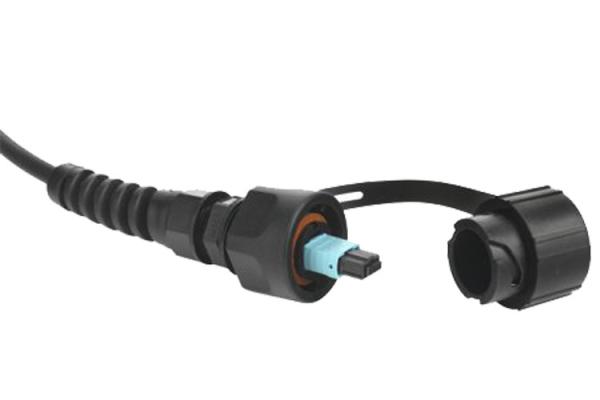

Detailed photos shows of ODVA to MPO fiber cable assemblies

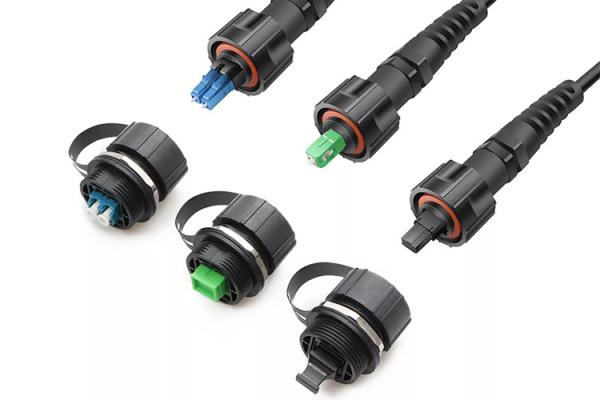

ODVA and ODC series Optional outdoor assembly connectors
