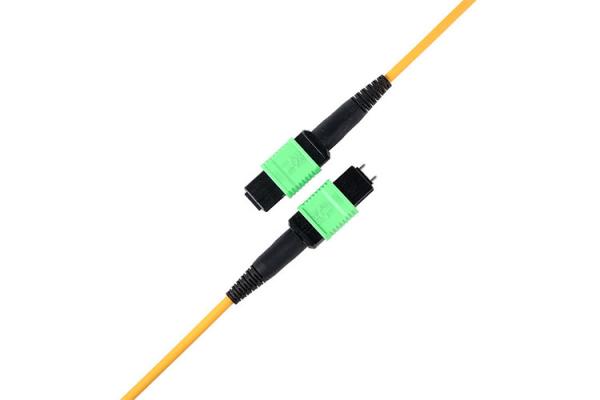

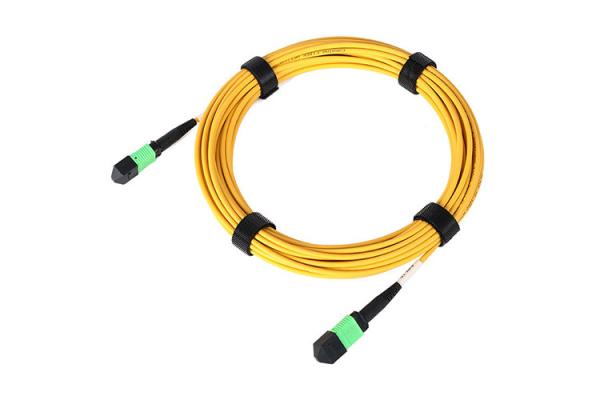

9-125um MPO MTP Cable SM 24 Fiber Trunk Cable Single Mode Patch Cord For Metro
9-125um MPO MTP Cable SM 24 Fiber Trunk Cable Single Mode Patch Cord For Metro
9-125um MPO MTP Cable SM 24 Fiber Trunk Cable Single Mode Patch Cord For Metro
9-125um MPO MTP Cable SM 24 Fiber Trunk Cable Single Mode Patch Cord For Metro
9-125um MPO MTP Cable SM 24 Fiber Trunk Cable Single Mode Patch Cord For Metro
9-125um MPO MTP Cable SM 24 Fiber Trunk Cable Single Mode Patch Cord For Metro
Specifications
Brand Name :
Begate, OEM and ODM
Model Number :
MPO to MPO
Certification :
CE,ROHS,ISO9001,IEC and TIA
Place of Origin :
Made in China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
5000 pieces / day
Delivery Time :
Samples within 3 days, bulk orders within 5-7working days
Packaging Details :
100 Pieces/ Polybag 100 Bgas/ Carton
Fiber type :
OM4,SM/MM/OM3
Connector :
MPO,MTP
Product name :
MPO to MPO Trunk Cable
Length :
Customized Lengths(1m/2m/3m+1
Color :
yellow,red or customized
Connector type :
MPO/MTP/LC/SC/ST/FC fiber patch cord
Cable length :
customized
Operating temperature :
-40 to 75℃
Description
Description of MPO MTP Trunk Cable:
Begate fiber optic patch cord is suitable for enterprise network, telecom carrier, server farms, cloud storage networks, and any place fiber jumper cables are needed. It meets RoHS compliant, and cable is optically tested for insertion loss to ensure high quality. The Optial cabe can be OFNR and OFNP option, UL listed.

Feature of MPO MTP Trunk Cable:

1. The connectors are comply with IEC standards;
2. Different size & color boot option;
3. Low insertion loss; High return loss;
4. 100% interferometer measurement;
5. Various fiber cable option; G652D, G657A, G657B3, OM1, OM2, OM3, OM4 option;
6. SC, FC, LC, ST, E-2000, MTRJ, MU, MTP, MPO, DIN, SMA-905/906, D4 available.
Application

1. Metro；
2. Active device termination；
3. Test equipment；
4. Telecommunication networks；
5. Local Area Networks (LANs)；
6. Data processing networks;
7. Premise installations；
8. Wide Area Networks (WANs)；
9. CATV.

Product Paramenters

Cable Type 12 Fiber 24 Fiber 48 Fiber 72 Fiber 144 Fiber
1 Group 2 Groups 4 Groups 6 Groups 12 Groups
12 Fibers per Group
Connector A 12 MPO Connector (Male or Female)
Connector A Count 1 2 4 6 12
MPO/UPC or MPO/APC Connector
Connector A Breakout Length Various Lengths
Connector B 12 Fiber MPO Connector (Male or Female)
Connector B Count 1 2 4 6 12
MPO/UPC or MPO/APC Connector
Connector B Breakout Length Various Lengths
Cable Jacket Type Plenum (OFNP)
Total Cable Length Various Lengths
Pin Out Configuration Method A, B or C
Fiber Mode Single Mode Multimode
9-125um OM1-62.5/125um
OM2/OM3/OM4-50/125um
Insertion Loss 0.35dB Max (0.15dB Typ.) 0.35dB Max (0.15dB Typ.)
Return Loss ≥60dB ≥20dB
Cable Jacket Color Yellow Orange/Aqua/Magenta

Begate MPO fiber assembly line

9-125um MPO MTP Cable SM 24 Fiber Trunk Cable Single Mode Patch Cord For Metro
100% factory tested with traceable test data

9-125um MPO MTP Cable SM 24 Fiber Trunk Cable Single Mode Patch Cord For Metro

FAQ

Q1: Are you a manufacturer?
A: Yes, we are a manufacturer who has 3 factories and welcome to visit!
Q2: What is your MOQ?
A: We are the factory. No MOQ, One piece is available.
Q3:Can you provide the OEM service?
A: Sure, we have the complete production line, we could do the production as your request.
Q4. Can I have a sample order for this product?
A: Yes, for patchcord, FREE SAMPLE is avaible to test and check quality. Mixed samples are acceptable.
Q5: How long is your delivery time?
A: Generally it is 2-5days if the goods are in stock. or it is 7-15 days if the goods are out of stock. The lead time mainly depends on quantity.
Q6: Can I negotiate the prices?
A:Yes, special discounts are available. The more quantities, the cheaper prices.
Q7: How much will the shipping charges be?
A:It depends on the size of your shipment and the method of shipping. We will offer the charge to you as per you requested.

9-125um MPO MTP Cable SM 24 Fiber Trunk Cable Single Mode Patch Cord For Metro
