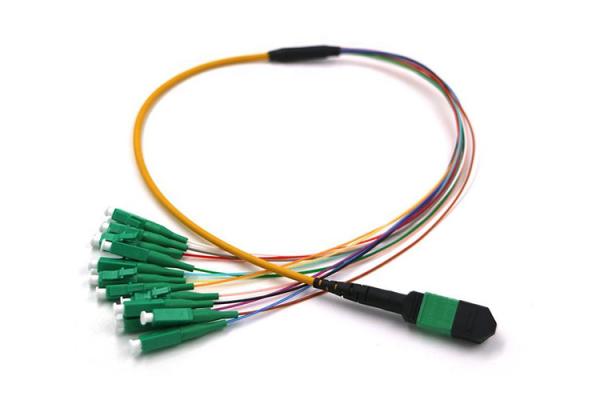

LSZH G657A OM3 OM4 MPO Fiber Optic Patch Cord FTTH Trunk Cable
LSZH G657A OM3 OM4 MPO Fiber Optic Patch Cord FTTH Trunk Cable
LSZH G657A OM3 OM4 MPO Fiber Optic Patch Cord FTTH Trunk Cable
LSZH G657A OM3 OM4 MPO Fiber Optic Patch Cord FTTH Trunk Cable
LSZH G657A OM3 OM4 MPO Fiber Optic Patch Cord FTTH Trunk Cable
LSZH G657A OM3 OM4 MPO Fiber Optic Patch Cord FTTH Trunk Cable
Specifications
Brand Name :
Begate, OEM and ODM
Model Number :
MPO/MTP Data Center Patch Cord
Certification :
CE,ROHS,ISO9001,IEC and TIA
Place of Origin :
Made in China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
8000pieces/Day
Delivery Time :
Samples within 3 days, bulk orders within 12 working days
Packaging Details :
Carton Box or Customized packaging
Application :
FTTH FTTB FTTX Network
Connector type :
SC-SC LC-LC FC-FC ST-ST or Hybrid
Length :
1m 2m 3m or Customized
Insertion loss :
≤0.3dB
Connector :
SC LC FC ST MU
Material :
PVC/LSZH
Product name :
Fiber Optic Patch Cord
Quality control :
100% test before shipping
Description

LSZH G657A OM3 OM4 MPO Fiber Optic Patch Cord FTTH Trunk Cable

Description of Fiber Optic Patch Cord

MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.

MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow.
These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.

Features of Fiber Optic Patch Cord

* Low insertion loss and back reflection loss
* Ferrule end surface pre-domed
* Excellent mechanical endurance
* Good in repeatability
* Good in exchange
* Green production, CE, RoHS standard

Applications of Fiber Optic Patch Cord

* Telecommunications
* CATV, LAN, MAN, WAN, test and measurement
* Military industry
* Medical

Specification of Fiber Optic Patch Cord

Model

SM

MM

Connector A:MPO/MTP

Connector Fiber Count

8,12,24,48 Core

Polish

PC,APC

PC

Insertion Loss

Standard

≤0.70dB

≤0.50dB

Elite Low Loss

≤0.35dB

≤0.30dB

Return Loss

PC≥50dB,APC≥60dB

≥30dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

Connector B:LC,LC Uniboot,SC,FC,ST

Polish

PC,APC

PC

Insertion Loss

≤0.2dB

≤0.2dB

Return Loss

PC≥50dB,APC≥60dB

≥35dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

Other Types

LSZH G657A OM3 OM4 MPO Fiber Optic Patch Cord FTTH Trunk Cable

According the fiber type, we can provide all series of Patch Cord.

SM (G652D G657A1 G657A2 G657B3 G655) MM (OM1 OM2 OM3 OM4 OM5)

Company information

Shenzhen begate Co., Ltd is located in longhua, Shenzhen. The factory covers an area of 20,000 square meters, and has a complete set of automated production and testing equipments. Begate is specialized in manufacturing of network cables, optical fiber quick connector, fiber optical cables, fiber optic adaptor, fiber optic attenuator, fiber optic splitter, professional plc splitter cassette, fiber optic patch cord, fiber optic splice closure, FTTH series and other products of network cabling system. Our products also covers the fiber media converter, Fiber optic cross connect cabinet and Fiber optic splice closure, etc.
In order to meet more high end market’s needs, we imported REELEX machine from US and got the National High-Tech Enterprise Certification in the same year.
We have passed ISO9001-2008 and ISO14001 certification with excellent management systems.

LSZH G657A OM3 OM4 MPO Fiber Optic Patch Cord FTTH Trunk Cable

FAQ:

Q1. Could you do design for us?
Yes, we provide customized service and can do artworks including printing, logo etc. for you.

Q2. What's the payment terms?
TT, WesternUnion, Escrow(secure payment), Trade assurance, Cash, etc.

Q3. Can I use my own LOGO and design on products?
YES, OEM is welcomed.

Q4. Could you offer samples?
Yes, samples are accepted.You need place sample order to us, and we will reduce from bulk order.

Q5. What's the delivery time for sample order?
Normally about 3days after confirmation.

Q6. What's the delivery time for bulk order?
Normally 5-10 days depends on products and order quantities.

Q7. How to send the goods?
Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

LSZH G657A OM3 OM4 MPO Fiber Optic Patch Cord FTTH Trunk Cable
