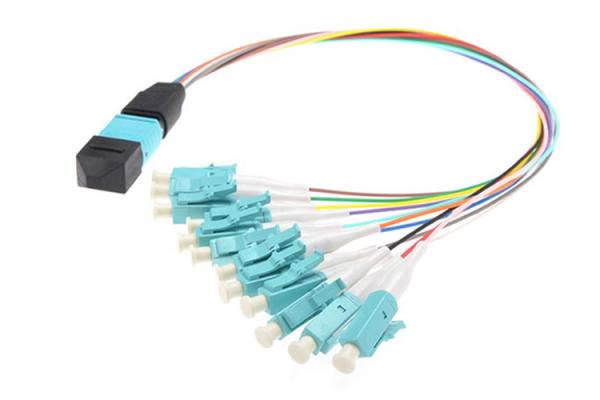

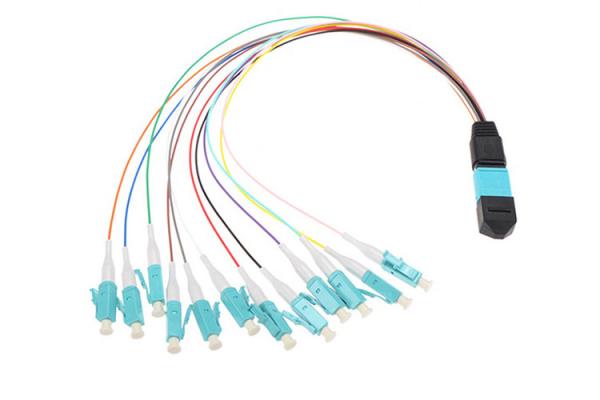

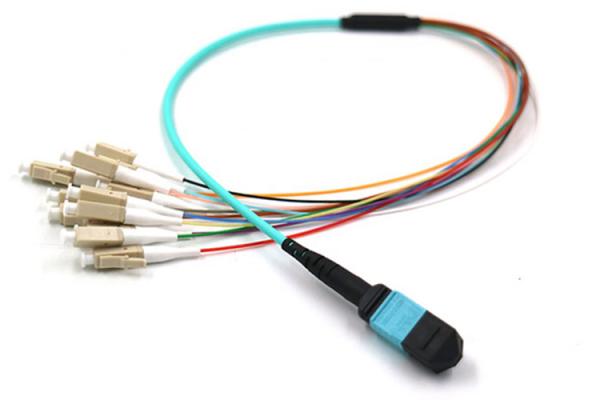

High Capacity 0.9mm Branch MPO MTP Cable Hydra Cable For Data Center
High Capacity 0.9mm Branch MPO MTP Cable Hydra Cable For Data Center
High Capacity 0.9mm Branch MPO MTP Cable Hydra Cable For Data Center
High Capacity 0.9mm Branch MPO MTP Cable Hydra Cable For Data Center
High Capacity 0.9mm Branch MPO MTP Cable Hydra Cable For Data Center
High Capacity 0.9mm Branch MPO MTP Cable Hydra Cable For Data Center
Specifications
Brand Name :
OEM and ODM
Model Number :
MPO to LC UPC 0.9mm branch cable
Certification :
CE,ROHS,ISO9001,IEC and TIA
Place of Origin :
Made in China
MOQ :
NO MOQ, 1 piece is ok.
Price :
USD 9.99 / piece ~ USD 299.99 / piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal , Cash
Supply Ability :
3000 pieces / day
Delivery Time :
Samples within 3 days, bulk orders within 15 working days
Packaging Details :
1 piece / PE bag; 100 pieces / carton
Fiber Count :
8~24 Fibers
Fiber Mode :
Single mode: OS2/G657 9/125um ; Multimode: OM4 50/125um, OM3 50/125um
Fiber Brand :
SMF-28 Ultra optical fiber ; Corning ClearCurve multimode fiber
Cable Jacket Ratings :
PVC, LSZH, OFNR , OFNP
Cable Jacket Color :
Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple, Pink, Aqua
Polarity :
A / B / C or Customized
Single-fiber connector :
LC, SC, FC, etc.
MPO connector brand :
US Conec MTP, Senko MPO, Nissin MPO, Sanwa MPO, FURUKAWA MPO
Description

High Capacity 0.9mm Branch MPO MTP Cable Hydra Cable For Data Center

High Capacity MPO To LC UPC 0.9mm Branch MM Hydra Cable For Data Center

Features of MPO To LC UPC 0.9mm Branch MM Hydra Cable For Data Center

  • New miniature Breakout Module – saving space within patching management area the same time providing robust and safe transition between cable and tails
  • Female MTP/MPO connectors for direct connection into QSFP+ transceiver
  • OM3, OM4, OS1, OS2, fibre versions
  • 3mm OD Patch/ 4.5mm OD Trunk MicroCable Versions
  • LSZH, OFNP, OFNR cable jacket types selection
  • Factory 100% terminated and tested
  • Optimized performance - Low loss MPO/MTP Elite and discrete LC Premium connectors and OM4 fibre assures low insertion losses and power penalties in tight power budget high speed network environment
  • Rapid deployment Factory terminated modular system saves installation and reconfiguration time during moves, ads and changes

Application of MPO To LC UPC 0.9mm Branch MM Hydra Cable For Data Center

  • Data Center Infrastructure
  • Parallel Optics
  • Storage Area Networks (SAN)
  • 40GBASE-SR4 to 4x10GBASE-SR links
  • Optical switching inter frame connections;
  • High fiber density card edge access;
  • Array trunk cables;

Specification of MPO To LC UPC 0.9mm Branch MM Hydra Cable For Data Center

Construction Description
Fiber Count 8~24 Fibers
Fiber Mode Single mode: OS2/G657 9/125um
Multimode: OM4 50/125um, OM3 50/125um
Fiber Brand SMF-28 Ultra optical fiber
Corning ClearCurve multimode fiber
Cable Jacket Ratings PVC, LSZH, Hytrel
Cable Jacket Color Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple, Pink, Aqua
Polarity A/B/C or Customized
MTP/MPO Ferrule 12F/16F/ 24F
Ferrule Brand US Conec, HANKUSAN, Nissin
Connector Type MTP Female, Male; MPO Female, Male
Connector Brand US Conec MTP, Senko MPO, Nissin MPO, Sanwa MPO, FURUKAWA MPO
Connector Color Ferrule SM(APC) SM(PC) OM3 OM4 or
Low loss Yellow Yellow Aqua Magenta Customized
Standard Green Blue Aqua Magenta
Boot Color Green/Black/ or Customized
Single-fiber connector LC, SC, FC, etc.
Operating Temperature -20 ℃ to 70 ℃
Storage Temperature -40 ℃ to 85 ℃

MPO / MTP Termination
Optical Properties Single mode Multimode
Insertion Loss (dB) Low loss Standard Low loss Standard
≤0.35(Typical:≤0.25) ≤0.75(Typical:≤0.4) ≤0.35(Typical:≤0.2) ≤0.5(Typical:≤0.35)
Return Loss (dB) PC≥50; APC≥60 PC≥20
Wavelength (nm) 1310/1550 850/1300
Durability ≤0.3 (dB)typical change, 50 matings

Generic Connector Termination
Optical Properties Single mode Multimode
Insertion Loss (dB) ≤0.2 ≤0.2
Return Loss (dB) PC≥55; APC≥60 PC≥25
Wavelength (nm) 1310/1550 850/1300
Durability ≤0.2(dB)typical change, 500 matings


How to customize your own MPO To LC UPC 0.9mm Branch MM Hydra Cable?

High Capacity 0.9mm Branch MPO MTP Cable Hydra Cable For Data Center

1 Connector type 1# MPO-Female, MPO-Male, MTP-Female , MTP-Male
2 Polarity Type A, Type B, Type C
3 End face 1# PC , APC
4 Fiber count 2F, 4F, 8F, 12F , 24F
5 Connector type 2# MPO/Female, MPO-male , FC, SC , ST, MU, LC , E2000
6 End face 2# PC,UPC, APC
7 Fiber Mode SM (OS1, OS2), MM (OM1, OM2, OM3, OM4)
8 Cable Diameter (mm) 2.0mm, 3.0mm, 4.0mm
9 Cable Length (m) L= 1m, 2m, 3m, 4m ......customize
10 Pigtail Legnth (m) L1= 0.5, 0.6, 1.0......customize
12 Cable Type (Fan-out Section) Coated fiber (250um)
0.9mm loose tube cable
2.0mm PVC cable
3.0mm PVC cable
LSZH cable 2.0mm
LSZH cable 3.0mm
No Fanout
Others, please specify

Why choose Begate MPO To LC UPC 0.9mm Branch MM Hydra Cable?

"Quality is our culture!" 100% factory tested with traceable test data.

High Capacity 0.9mm Branch MPO MTP Cable Hydra Cable For Data Center

Begate has passed ISO9001 quality system verification, and our products are approved by CE, RoHS. Compliant with IEC and TIA requirement. We established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

Packaging and delivery

High Capacity 0.9mm Branch MPO MTP Cable Hydra Cable For Data Center

Every cooperation is a kind of trust, Begates cares about the issues that our customers care about.

While ensuring product quality, we provide customers with safe packaging, so that the goods can be delivered to customers in good condition.

Question: How long is shipping take typically?

Reply: The delivery time depends on the goods quantities. If light weight, by express (DHL, FEDEX, TNT, UPS, Special line) will take about 10-15days, if large quantities with big volume, and goods are not in urgently needed, by ocean transportation will be more cost effective, it will take around 30-60days.

MPO MTP data center solution series products

  • MPO/MTP Trunk Cable
  • MPO/MTP Harnesses Cables
  • MPO/MTP Fan out 0.9mm Patch Cords
  • IP-Series MPO/MTP Assembly
  • High Density Patch Cords
  • MPO/MTP Loopback
  • MT Patch Cords
  • MPO/MTP Cassettes
  • MPO/MTP Fiber Optic Patch Panel
