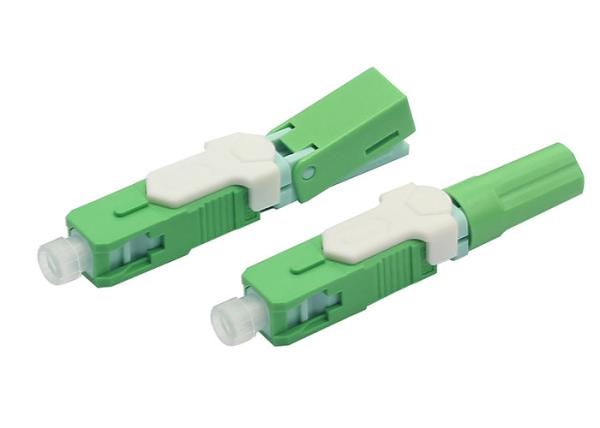

50mm 55mm 60mm Fiber Optic Quick Connector SC APC UPC For FTTH
50mm 55mm 60mm Fiber Optic Quick Connector SC APC UPC For FTTH
50mm 55mm 60mm Fiber Optic Quick Connector SC APC UPC For FTTH
50mm 55mm 60mm Fiber Optic Quick Connector SC APC UPC For FTTH
50mm 55mm 60mm Fiber Optic Quick Connector SC APC UPC For FTTH
50mm 55mm 60mm Fiber Optic Quick Connector SC APC UPC For FTTH
50mm 55mm 60mm Fiber Optic Quick Connector SC APC UPC For FTTH
50mm 55mm 60mm Fiber Optic Quick Connector SC APC UPC For FTTH
Specifications
Brand Name :
OEM&ODM
Model Number :
SC APC SC UPC
Certification :
CE,ROHS,ISO9001,IEC and TIA
Place of Origin :
Made in China
MOQ :
We are the factory. No MOQ, 1piece is ok.
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30000pieces/day
Delivery Time :
Samples within 3 days, bulk orders within 12 working days
Packaging Details :
10pcs/blister box;1000pcs/carton
Connector type :
SC UPC ;SC APC
Connector Dimension :
50mm; 55mm; 60mm
Insertion Loss :
Max≤0.5dB
Return Loss :
≥50dB
Application cable size :
Dia2.0x3.0mm butterfly optical cable
Operating temp. :
-40℃~+70℃
Storage temp. :
-40℃~+80℃
Ferrule :
Ceramic(Zirconia)
Color :

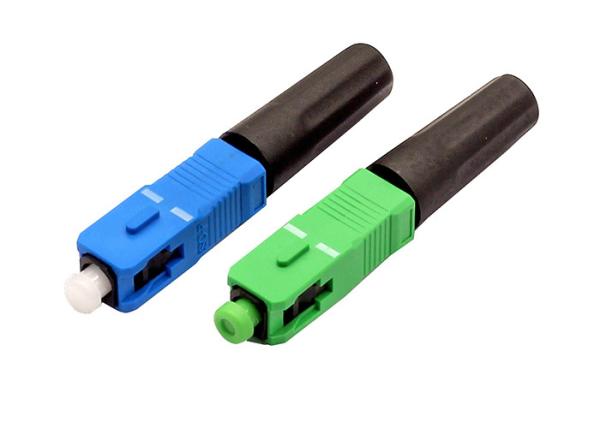

Single Mode UPC type, blue color; Single Mode APC type, green color
Are you the factory? :
Yes, we are. Welcome to visit our factory.
Do you support sample? :
Yes, we do. FREE SAMPLES are available
Description

Quick assembly fiber optic fast connector SC APC UPC for ftth

Overview of fiber optic fast connector

Quick Assembly SC connector can provide quick and easy terminations of fibers in the field. It allows the installer to terminate and makeconnection in minutes at equipment and fiber patch panels. This connector systemwith features of high installation quality, high success rate and high reliability.

Application of fiber optic fast connector

1. Distribution Frames & Patch Panels
2. Fiber Optic Patch Cord & Pigtail
3. Telecommunication Networks
4. Data Processing Networks
5. FTTH (Fiber To The Home)
6. Local Area Network (LAN)
7. Test Equipment.
8. CATV & CCTV

Features of fiber optic fast connector

1. No special tools needed when installed
2. Without any gluing and polishing process
3. Can be made on-site without splicing connectors
4. Only 30 seconds needed to learn the process of installation
5. Good high temperature performance and good sealing
6. Easy installation, quick and fast in the assembly field
7. High return loss and low insertion loss

Technical Specification of fiber optic fast connector

Item Technical Parameters Item Technical Parameters
Application scope
3.0 x 2.0 mm butterfly optical cable
 Assembly time 10
Fiber diameter
125μm ( 657A & 657B )
Bare fiber tightening force
 1.5N
Tight cladding diameter
250μm & 900μm
Tight cladding clamp force
 8N
Application model Single mode Tensile strength 50N
Operation time About 15s(exclude fiber cut) Operating temperature
- 40～+85℃
Insertion
Maximum≤0.5DB, Mean≤0.3DB
Online stretching resistance test (30 N)
△IL ≤ 0.3dB
Return Loss
UPC≥50DB, APC≥55DB
Mechanical permanence (500 times)
△IL ≤ 0.3dB
Success rate 98%
Drop test(4m high concrete floor/each direction
one time, total three times)
△ IL ≤ 0.3dB

Assembly line of fast optic connector

Begate provides 100% tested fast connectors for you to choose from.
Welcome to your inquiry and we surely provide you good prices, reliable quality and great services!

50mm 55mm 60mm Fiber Optic Quick Connector SC APC UPC For FTTH

Packaging and shipping of fast optic connector

50mm 55mm 60mm Fiber Optic Quick Connector SC APC UPC For FTTH

Every cooperation is a kind of trust, Begates cares about the issues that our customers care about.

While ensuring product quality, we provide customers with safe packaging, so that the goods can be delivered to customers in good condition.

Question: How long is shipping take typically?

Reply: The delivery time depends on the goods quantities. If light weight, by express (DHL, FEDEX, TNT, UPS, Special line) will take about 10-15days, if large quantities with big volume, and goods are not in urgently needed, by ocean transportation will be more cost effective, it will take around 30-60days.

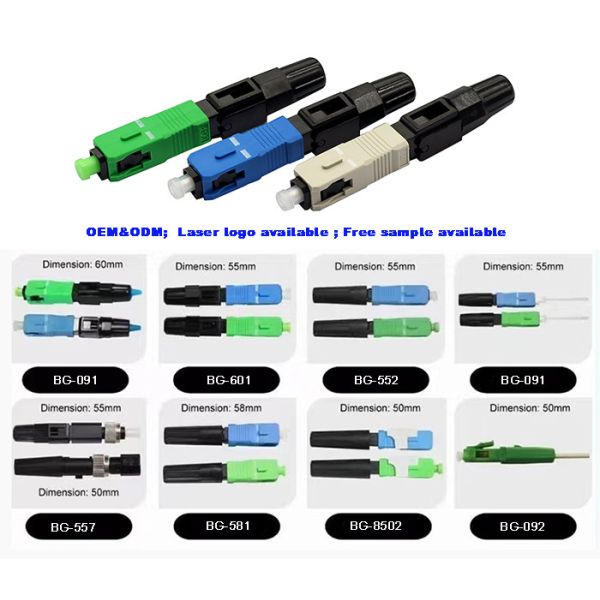

Optional fiber optic fast connector

50mm 55mm 60mm Fiber Optic Quick Connector SC APC UPC For FTTH

Customers feedback

50mm 55mm 60mm Fiber Optic Quick Connector SC APC UPC For FTTH

FAQ

Q1: Are you a manufacturer?
A: Yes, we are a manufacturer who has 3 factories and welcome to visit!
Q2: What is your MOQ?
A: We are the factory. No MOQ, One piece is available.
Q3:Can you provide the OEM service?
A: Sure, we have the complete production line, we could do the production as your request.
Q4. Can I have a sample order for this product?
A: Yes, for patchcord, FREE SAMPLE is avaible to test and check quality. Mixed samples are acceptable.
Q5: How long is your delivery time?
A: Generally it is 2-5days if the goods are in stock. or it is 7-15 days if the goods are out of stock. The lead time mainly depends on quantity.
Q6: Can I negotiate the prices?
A:Yes, special discounts are available. The more quantities, the cheaper prices.
Q7: How much will the shipping charges be?
A:It depends on the size of your shipment and the method of shipping. We will offer the charge to you as per you requested.

Any more questions upon our products, and our company? please feel free to contact us at any time.

Contact information of the fiber optic connector sales representative

50mm 55mm 60mm Fiber Optic Quick Connector SC APC UPC For FTTH

Thank you very much for browsing our website and welcome your inquiry. Any more questions? please feel free to contact us now.

We will serve you wholeheartedly. Welcome you back again!
