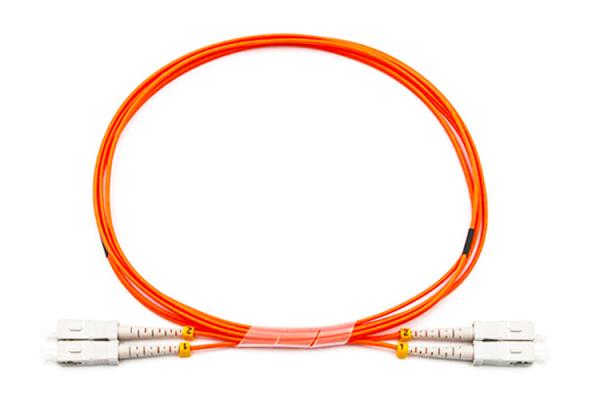

Duplex Multimode FTTH Fiber Optical Patch Cord SC UPC 50 125 850nm Wavelength
Duplex Multimode FTTH Fiber Optical Patch Cord SC UPC 50 125 850nm Wavelength
Duplex Multimode FTTH Fiber Optical Patch Cord SC UPC 50 125 850nm Wavelength
Duplex Multimode FTTH Fiber Optical Patch Cord SC UPC 50 125 850nm Wavelength
Specifications
Brand Name :
Begate, OEM
Model Number :
Duplex Multimode FTTH Fiber Optical Patch Cords SC UPC
Certification :
CE/RoHS/ISO9001
Place of Origin :
Shenzhen, China
MOQ :
NO MOQ, 1 piece is ok.
Price :
To be negotiated
Payment Terms :
L/C, D/A, D/P, MoneyGram, Paypal , Cash, T/T, Western Union
Supply Ability :
8000 pieces / day
Delivery Time :
Samples within 3 days, bulk orders within 15 working days
Packaging Details :
1. 1 piece /PE bag 2.Carton Box
Product Name :
Duplex Multimode SC UPC Connector Patch Cord
Color :
Orange
Wavelength :
850nm
Connector type :
SC UPC to SC UPC
Jacket material :
LSZH
Fiber Type :
Multi Mode
Cable length :
1m, 2m , 3m, 10m , 50m , 100m ....can customize
Application :
FTTH System
Description

Duplex Multimode FTTH Fiber Optical Patch Cord SC UPC 50 125 With Orange Color

Product Description of Fiber Optic Patch Cords:

Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration .Extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC ,FC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.

Fiber optic patch cord are used to make patch cord from the device to the fiber cabling link. There is a thick protective layer, generally used in the optical terminal and the connection between the terminal box, used in optical fiber communication systems, optical access network, optical data transmission and LAN and other fields.

Featurs of Fiber Optic patch Cords:

  1. Ferrule end surface pre-domed
  2. Excellent mechanical endurance
  3. Low insertion loss,high return loss
  4. Good durability
  5. Good exchangeability
  6. High temperature stability
  7. Low insertion loss and back reflection loss
  8. Superior Quality Standard PC/UPC/APC Polishing
  9. The optical signal transmission is uniform
  10. the environment is stable
  11. requirements of different wavelengths
  12. and it can meet the transmission

Applications of Fiber Optic patch Cords:

  1. Telecommunications
  2. CATV, LAN, MAN, WAN, Test &Measurement
  3. Optical Fiber Sensor
  4. Long haul trunk,metro and access system
  5. Outdoor harsh environment
  6. Optical Fiber Test Equipment
  7. Optical Fiber Communication System
  8. Communication system
  9. Military industry
  10. Medical

Technical specification of Fiber Optic patch Cords:

1.

Item Value
Model Number SC/UPC-SC/UPC MM DX 50/125 1M
Type Fiber optic patch cord
Place of Origin China
Use FTTH NETWORK
Warranty Time 1 years
Product name Fiber optic patchcord
Type SC/UPC-SC/UPC
Connector Type SC FC ST LC UPC
Color ORANGE
Wavelength 850nm
Fiber Type Multi Mode
Material PVC LSZH
Application FTTH System
Operating temperature 40~+85
Certification SGS

2.

Item Unit LC/SC/FC/ST Fiber Patch Cord
SM MM
Fiber Diameter um 9/125 65.5/125 50/125
Polishing PC UPC APC PC PC
Insertion Loss dB ≤0.2 ≤0.15 ≤0.2 ≤0.1 ≤0.1
Return Loss dB ≥45 ≥50 ≥60 - -
Insert-pull Test dB ≤0.2 ≤0.2 ≤0.3 ≤0.15 ≤0.15
Interchangeability dB ≤0.1 ≤0.1 ≤0.15 ≤0.1 ≤0.1
Temperature Range ℃ -40~+80
Durability(1/Matings) ≥500
Tensile Strength (N) ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber 9/125um, 50/125um,62.5/125um,ect
Diameter 0.9mm 2.0mm, 3.0mm etc
Cores Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc


Details of Fiber Optic Patch Cords:

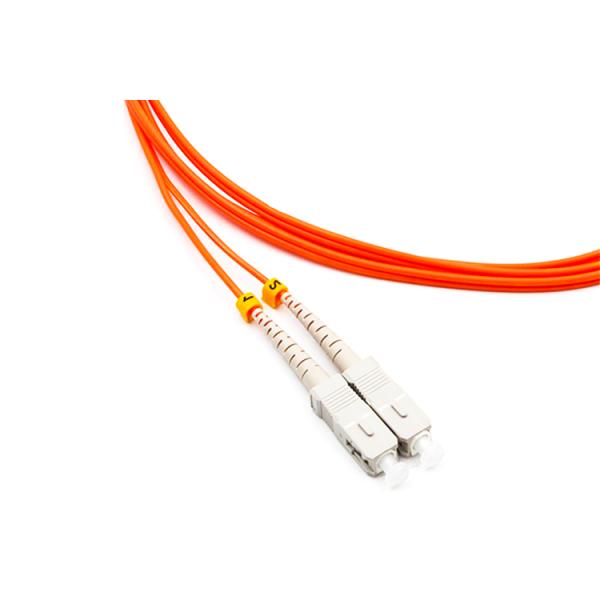

Duplex Multimode FTTH Fiber Optical Patch Cord SC UPC 50 125 850nm Wavelength

Duplex Multimode FTTH Fiber Optical Patch Cord SC UPC 50 125 850nm Wavelength

Different Fiber Optic Patch Cords:

According the fiber type, we can provide all series of Patch Cord. SM (G652D G657A1 G657A2 G657B3 G655) MM (OM1 OM2 OM3 OM4 OM5)

Duplex Multimode FTTH Fiber Optical Patch Cord SC UPC 50 125 850nm Wavelength

Factory Workshop:

Duplex Multimode FTTH Fiber Optical Patch Cord SC UPC 50 125 850nm Wavelength

Why choose Begate?

1. We can reduce your costs(Factory-sale)
2. Reliable quality(2years warranty)
3. fast delivery(within 7days)
4. No MOQ (1piece okay)
5. Credit supports.
6. Customization(Print your logo).
7. Free sample
8. High efficient and professional sales and aftersales services.
9. One-stop services.

Thank you very much for browsing our website and welcome your inquiry at any time. We will serve you wholeheartedly.
Welcome back again!
