Multifunction Digital Hardness Tester Portable High Accuracy
Multifunction Digital Hardness Tester Portable High Accuracy
Multifunction Digital Hardness Tester Portable High Accuracy
Multifunction Digital Hardness Tester Portable High Accuracy
Specifications
Brand Name :
JINHAIHU
Model Number :
Uee916
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram, Western Union
Delivery Time :
7 -15 days
Packaging Details :
Standard wooden case
Product name :
Portable Hardness Tester, With Customized Material Function
Measuring range :
(170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV,(30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB
Hardness parameter :
HL, HRC, HRB, HRA, HRV, HS, HB, HV
Accuracy :
±6HLD/ ±1.5HRC
Memory :
600 groups
PC Connection :
Available
Overall Dimension (mm) :
230×86×46mm
Net weight :
450g
Description

Portable Hardness Tester, With Customized Material Function

Functions

● Multi-function, New system, high precision, easy operation

● Customized materials function: able to measure special metal

● With LCD color screen, built-in thermal printer

● Able to calibrate on HL, HRC, HB blocks

● Freely switch to 7 different hardness scales

● Automatically identify 7 types of Impact devices

● Conversion to tensile strength (U.T.S)

● PC Software for data transmission, analysis, and report printing

● 3 years warranty and life-long services

Measuring Materials

● 10 types of metals: steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys, copper and tin alloy, copper, forged steel

● Customized materials: able to test metal materials that are not included above

Technical Parameters

Model Uee916

Measuring Range

 (170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV,(30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB
Hardness parameter HL, HRC,HRB, HRA,HRV,HS,HB,HV
Accuracy ±6HLD/ ±1.5HRC
Memory 600 groups
PC Connection Available
Printer Build-in High-speed Thermal Printer, Width for printer paper:44.5±0.5mm
Battery Rechargeable Li-ion battery
Operating Temperature -20℃~+60℃
Dimensions 230×86×46mm
Weight 450g

Standard Configuration

 Main unit, Impact Device type D, Calibration block, Power adapter, Small supporting ring, USB cable, Software, Backup accessories(Impact ball*1, Cable*1, Spanner *1), paper of Printer, Cleaning brush, Operation manual, Certificate.

Optional Accessories

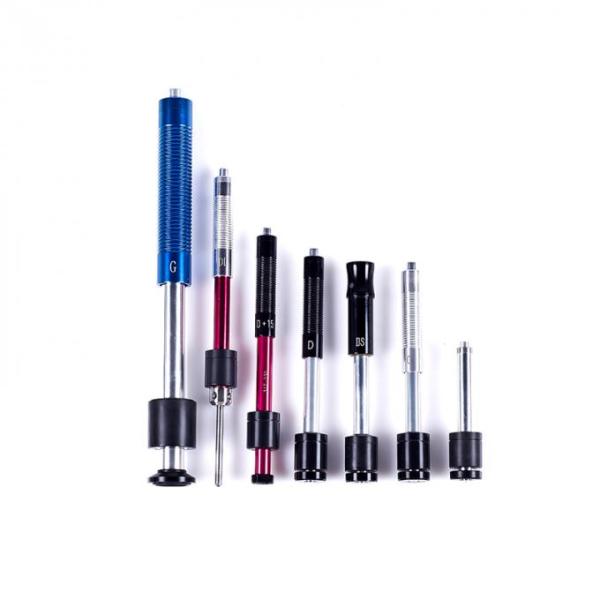

 Optional Impact Devices(D,DC,DL,D+15,G,C,E), Shaped support rings, Testing blocks,Paper for Printer
