TUP A B C Hammer Diameter Drop Weights Testing Equipment
TUP A B C Hammer Diameter Drop Weights Testing Equipment
TUP A B C Hammer Diameter Drop Weights Testing Equipment
TUP A B C Hammer Diameter Drop Weights Testing Equipment
Specifications
Brand Name :
JHH
Model Number :
XJL-630D
Certification :
ISO9001, CE
Place of Origin :
Beijing, China
MOQ :
1 set
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
7 -15 days
Packaging Details :
Wooden case
Product name :
TUP A B C Hammer Diameter Drop weights Testing Equipment with Technical Support and Services
Hammer diameter :
TUP A, TUP B, TUP C
Test Range :
0-400J
Drop hammer quality :
2.7kg, 5.4kg, 9.1kg, 13.6kg
Supporting :
120° V-type or Iron plate
Max. Height :
3000mm
Conform with standards :
ASTM D2444, ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256 , ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, etc.
Power Supply :
AC220V/50Hz
Description

TUP A B C Hammer Diameter Drop weights Testing Equipment with Technical Support and Services

Application:

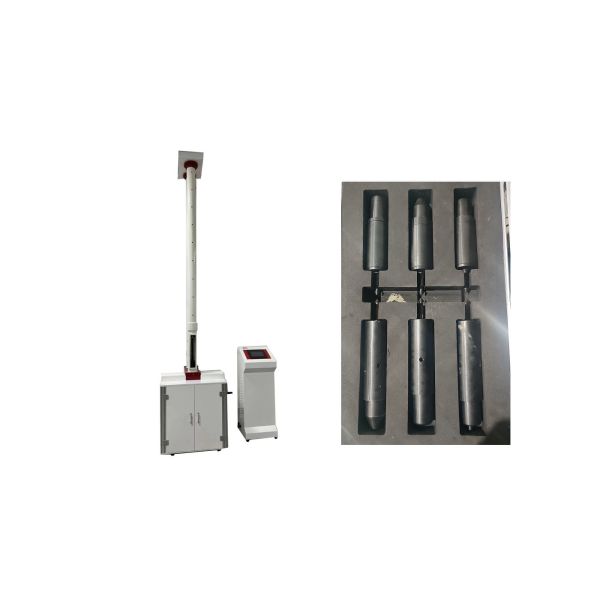

The Drop Hammer Test Equipment is designed to conform with various international standards such as ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, and more. This means that the equipment can be used to perform tests that comply with the industry standards for impact testing.

The equipment is equipped with personal safety automatic protection devices such as sample door protection and electric shock protection to ensure the safety of the user during testing. It is also designed to have a minimum height of 10mm, allowing for accurate and precise testing of materials with low impact resistance.

The Drop Hammer Test Equipment is a reliable and durable product that can be used for a variety of applications. Its versatility, safety features, and compliance with international standards make it an ideal choice for research and development, quality control, and material testing in various industries such as aerospace, automotive, construction, and more.


TUP A B C Hammer Diameter Drop Weights Testing Equipment

Conform with standards:

ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256 , ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, etc.

Technical parameter:

XJL-630
Ambient temperature 10℃-35℃
Hammer(a total of 12 sets) Hammerhead A 2.75kg, 5.4kg, 9.1kg, 13.6kg
Hammerhead B 2.7kg, 5.4kg, 9.1kg, 13.6kg
Hammerhead C 2.7kg, 5.4kg, 9.1kg, 13.6kg
Height of the fall 0mm-3000mm,error≤±2mm
Diameter of the sample Φ630mm
Deviation of impact center from fixture center ≤2mm
V-type supporting 120°
source 220VAC±10%
Outline dimension 720㎜×600㎜× 4850㎜
Net weight 600kg

Support and Services:

We offer comprehensive technical support and service for our Drop Hammer Test Equipment. Our team of engineers and technicians can provide expert assistance with installation, maintenance, troubleshooting, calibration, and more. We can also provide custom solutions to meet your specific needs.

We are committed to providing the highest level of customer service and support. Our team is available 24/7 for any questions or concerns.

For more information, please contact us at your convenience.

Packing and Shipping:

The Drop Hammer Test Equipment will be securely packaged in a wooden crate for shipping. The box will contain the equipment, instructions, and any additional parts or accessories. Additionally, the box will be labeled with the equipment name, model, and serial number.

The shipping process will include all necessary paperwork such as an invoice, packing list, and any other documents required for international shipping. The shipping cost will be determined based on the destination and type of shipment.

FAQ:

Q: What is Drop Hammer Test Equipment?
A: Drop Hammer Test Equipment is a testing equipment manufactured by JHH in Beijing, China, which is used to measure the impact resistance of objects.
Q: What is the purpose of Drop Hammer Test Equipment?
A: The purpose of the Drop Hammer Test Equipment is to measure the impact resistance of objects in order to ensure product quality.
Q: What products can Drop Hammer Test Equipment be used for?
A: Drop Hammer Test Equipment can be used for all kinds of pipe (PVC-U water supply pipe, sewage pipe, sewage pipe, low pressure water supply pipe, low pressure transmission pipe, core layer foam pipe, double wall corrugated pipe, PE water supply pipe), and also suitable for hard plastic plate.
Q: What is the accuracy of Drop Hammer Test Equipment?
A: Drop Hammer Test Equipment has an accuracy of up to 0.5%.
Q: What is the maximum testing force of Drop Hammer Test Equipment?
A: The maximum testing energy of Drop Hammer Test Equipment is 300J.TUP A B C Hammer Diameter Drop Weights Testing EquipmentTUP A B C Hammer Diameter Drop Weights Testing EquipmentTUP A B C Hammer Diameter Drop Weights Testing Equipment
