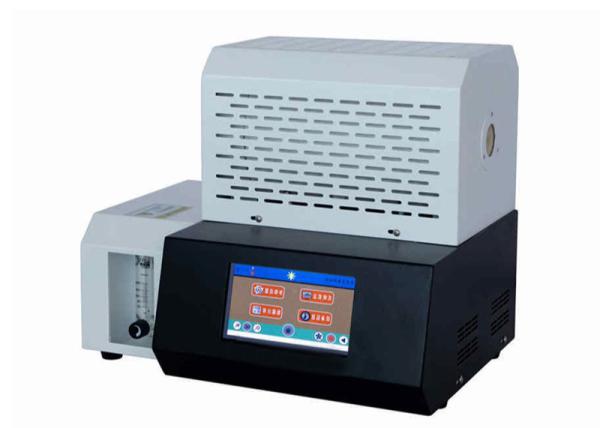

Professional Plastic Analyzer for Carbon Black Content Measurement in Polyethylene Polypropylene and Polybutene Plastics
Professional Plastic Analyzer for Carbon Black Content Measurement in Polyethylene Polypropylene and Polybutene Plastics
Professional Plastic Analyzer for Carbon Black Content Measurement in Polyethylene Polypropylene and Polybutene Plastics
Professional Plastic Analyzer for Carbon Black Content Measurement in Polyethylene Polypropylene and Polybutene Plastics
Specifications
Brand Name :
JINHAIHU
Model Number :
DZ-3500A
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability :
10 sets per month
Delivery Time :
10 work days
Packaging Details :
Standard export wooden case
Product name :
Professional Plastic Analyzer for Carbon Black Content Measurement in Polyethylene Polypropylene and Polybutene Plastics
Model :
DZ-3500A
Temperature :
Room temperature to 1050 ℃
Furnace size :
φ30×250 ±5mm
Flow meter range :
3L/h (scale 0.1L/h)
Quartz tube size :
φ30×400 ±5mm
Display mode :
7 inches wide touch screen
Temperature control :
PID
Power supply :
AC220V/50HZ/60HZ
Standard :
GB/T 2951.8, GB/T 13021, JTG E50 T1165, IEC 60811-4-1, ISO 6964
Description

Professional Plastic Analyzer for Carbon Black Content Measurement in Polyethylene Polypropylene and Polybutene Plastics

Application:

suitable for the determination of carbon black in polyethylene, polypropylene and polybutene plastics.

Technical features:

1. The instrument has a beautiful appearance and is easy to operate;

2. The integrated design of the heating furnace body and control system facilitates user management of instruments.

3. High degree of automation, simply set the temperature value and heating time, and the instrument will automatically heat up to the set value;

4. High temperature control accuracy, wide temperature range, and high uniformity of furnace temperature;

5.7-inch LCD touch screen display, extremely user-friendly interface, can be started with one click operation.

6. Has excellent temperature control function, can set temperature control time, and high temperature control accuracy;

7. The instrument can set any set of different heating time periods, with different heating temperatures, heating rates, and constant temperature times;

8. Comprehensive parameter display, showing the set number of groups, theoretical temperature, actual temperature, heating time (or constant temperature time); During the operation of the instrument, the set parameters and temperature rise or constant temperature time can be viewed.

9. The software comes with built-in calculation function, one click calculation; Automatically calculate carbon black content and ash content.

Technical parameters:

Display mode 7-inch capacitive touch screen
Quartz tube size φ30×400 ±5mm
Furnace size φ30×250 ±5mm
Heating element High temperature alloy wire
Heating zone length 200mm
Working temperature Room temperature~1050 ℃
Working power supply AC220V/50HZ/60HZ
Sensor sensitivity 0.1 ℃
Air path control Two channels, automatic program switching
Standards

GB/T 2951.8, GB/T 13021, JTG E50 T1165, IEC 60811-4-1, ISO 6964.

Configuration List:

Serial Number Content Qty
1 Instrument host 1 unit
2 combustion boat 5 pieces
3 power line 1 piece
4 10A fuse 5 pieces
5 Hanger 1 piece
6 Tweezers 1 piece
7 Rubber tube 1 each
8 Sealing plug with glass tube 1 set
9 Certificate of conformity 1
10 Warranty card 1
