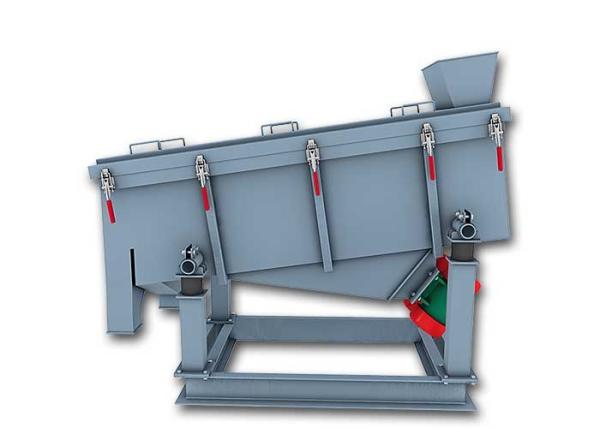

Stainless Steel Wire Horizontal Vibrating Screen Durable With Dust Cover
Stainless Steel Wire Horizontal Vibrating Screen Durable With Dust Cover
Stainless Steel Wire Horizontal Vibrating Screen Durable With Dust Cover
Stainless Steel Wire Horizontal Vibrating Screen Durable With Dust Cover
Specifications
Brand Name :
JINRUI
Model Number :
JRZS
Certification :
ISO/CE
Place of Origin :
CHIHA
MOQ :
1 SET
Price :
Bargaining
Payment Terms :
L/C, T/T
Supply Ability :
20 SET PER MONTH
Delivery Time :
10-12 Working days
Packaging Details :
Seaworthy Packing
Dimension(l*w*h) :
As per order
Application :
Ore, Food Processing, Chemicals, Industry, sand
Layer :
1-5
Cleaning system :
Bonucing Ball
Frequecy :
50-60hz
Color :
Customrized
Description

Stainless Steel Wire Horizontal Vibrating Screen Durable With Dust Cover

1. Applications
1. Metallurgy industry
In metal processing industry, this linear vibrating screen can sift alluminium powder, lead powder, copper powder, alloy metal powder, electrode powder, manganese dioxide powder, electrolytic copper powder, abrasive powder, High temperature resistant material, kaolin, limestone, dolomite, alumina, calcium carbonate, quartz sand and so on.
2. Pollution abatement
Our linear vibrating screen is also suitable for treating waste oil, age, accessory ingredient, activated carbon.
2. Brief Introduction
Our linear vibrating screen is a kind of small and medium size multi-layer screening machinery. Its performance has reached the international advanced level. Any dry material with a diameter of 0.074mm-20 mm could be handled. The maximum granule diameter should be less than 30 mm. As a multi-layer screen, this machine could come with seven layers of screen at most.
3. Characteristics
Feature
1. The screening precision is great, while the blocking rate of screen is less than 10% in average.
2. The screen frame is usually made of wood, or steel or stainless steel. If the mesh diameter is large than 2 mm, and the production capacity is high, the stainless steel frame will be better.
3. Enclosed structure is adopted for the linear vibrating screen to avoid particulate matter pollution to the air.
4. The low energy consumption and low noise(73-80 dB) make the machine quite eco-friendly.
5. The screen is woven by stainless steel wire, so its service life is quite long and the maintenance is simple. It can be used in single layer for multi-layer(7 layers at most).
6. The motor could be mounted eighter at the bottom or on the side of the vibrating body.
4.Matters needing attention
1. Once the machine on operation, the vibration part shall not be connected or contact with any object.
2. When feeding materials, pay attention to ensure the uniform feeding.
3. When the material through down, keeping no big impact to damage the screen.
4. Before operation and power off, there should no be any material on screen surface.
5. If there is any abnormal sound in the operation, the machine should be shutdown immediately and to check.
6. Ensure vibration motor maintenance regularly.
5. Driving Device Classification
-Dual Vibration motor driving
-Vibration exciter driving(for large model screen)
Tech Data
Model Screen Surface Size Screen Cloth Aperture Capacity Vibration Frequency Power Screen Surface Inclination
(mm) (mesh) (t/h) (r/min) (kw) (degree)
ZS-520 500*2000 2-325 mesh ≤ 5 1460/960 0.4*2 0-10°
ZS-525 500*2500 ≤ 8 0.55*2
ZS-1020 1000*2000 ≤ 12 1.1*2
ZS-1025 1000*2500 ≤ 16 1.1*2
ZS-1030 1000*3000 ≤ 20 1.5*2
ZS-1224 1200*2400 ≤ 23 1.5*2
ZS-1525 1500*2500 ≤ 28 2.2*2
ZS-1530 1500*3000 ≤ 32 2.2*2

How to get one set of linear vibrating screen separator? Only by telling us the following information for selection:

1. Material’s name, bulk density, and water content
2. Capacity you required___kg/h
3. What’s the purpose for our machine? Filtering, removing impurities or classification?
4. How many layers do you need?
5. The mesh size for each layer
6. Voltage and frequency

Service:
1. Special design offered.
2. Buyer label paste offered.
3. Sample testing support.
4. View our Factory
5. One year warranty.
6. Three years extended warranty.
7. 24 hours inquiry and consulting support.
8. Training how to instal and use the machine
