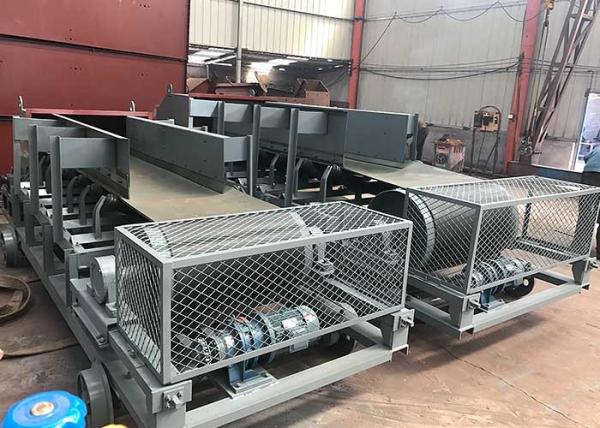

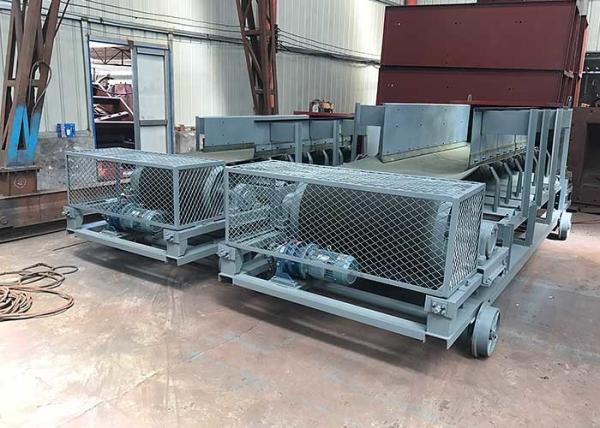

Carbon Steel Reversible Belt Conveyor 500MM 650MM 800MM Width Simple
Carbon Steel Reversible Belt Conveyor 500MM 650MM 800MM Width Simple
Carbon Steel Reversible Belt Conveyor 500MM 650MM 800MM Width Simple
Carbon Steel Reversible Belt Conveyor 500MM 650MM 800MM Width Simple
Specifications
Brand Name :
JINRUI
Model Number :
KN
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 Set Per Month
Delivery Time :
10-15 working days
Packaging Details :
Seaworthy packing
Usage :
Industrial Canvas
Voltage :
220v/380v
Belt wideth :
B500MM/650MM/800MM/1000MM
Structure :
Belt Conveyor
Frame materials :
Carbon steel
Condition :
JNew
Description

Driving Roller Flat Carrier Roller Reversible Belt Conveyor With Rubber Belt Materials

The components of the reversible bin distribution mobile belt conveyor are basically the same as the belt conveyor. The structure is as follows: conveyor belt, idler, frame, roller, cleaning device, etc. at present, the reversible bin distribution belt conveyor is developing towards the direction of long distance, high speed and low friction, among which the air cushion mobile conveyor appeared in recent years is one. In the design, manufacture and application of reversible bin distribution belt conveyor, at present, China is equivalent to the advanced level of foreign countries.
The reversible bin distribution belt conveyor is characterized by simple equipment and reliable operation. The layout axis of the incoming belt conveyor can be coaxial with the bin row or vertical to the bin row. When distributing materials, the reversible bin distribution belt conveyor moves longitudinally along the track on the top of the bin, which is suitable for bin arrangement with large capacity and straight line. Because the belt conveyor can run in the reverse direction, the length of the conveyor is relatively short. Generally, the length of the conveyor is about half of the distribution length required by the storage bin, and then 2-3m longer. The equipment investment is small, and the process layout is simple and flexible, so it is widely used.

Use and characteristics

The use effect of reversible bin distribution belt conveyor is the same as that of unloading trolley machine, which is under the belt conveyor

The bin is used for cloth. The walking device of reversible bin distribution belt conveyor and the belt conveyor itself are two uniqueSystem. When using, pay attention to the selection of traveling device speed. Usually, the belt speed depends on the amount of cloth Size to choose, as for the components of reversible bin, basically the same as the belt conveyor.
Working principle
The walking device and the belt conveyor are two independent systems. shuttle drive motor wheel is driven by the motor through the chain drive to make the wheel rotate forward and backward on the predetermined track, so as to achieve the "reversible" purpose of the conveyor line, which means that the bin under the conveyor line can be repeatedly distributed. And the transfer of the conveyor belt is completed by the electric roller. The continuous rotation of the electric roller drives the continuous rotation of the conveyor belt.
Advantage

Reversing shuttle belt conveyor is essentially a belt conveyor mounted onto a rail system, and offers numerous advantages to a material handling system, including:
1.A stationary inlet: the stationary feed chute allows for processed material to be directed to one central location.
Reversible belt direction: there is no restriction as to which end of the conveyor the material can discharge from, thus this style is ideal for filling multiple hoppers or storage bins.
2.Remote/automation: Reversing shuttle conveyors can be controlled from a remote control room, or automatically through an preset program

Why Choose Us!
Q: Are you trading company or manufacturer ?
A: We are manufacture factory to produce Reversing shuttle conveyor.
Q: supply professional service
A: 24hours online service by Trademanager,Skype, Whatsapp and Wechat.
Pre-sale service: Professional sales team will contact with you, supply quotation and drawings.
On-purchase service: Our sellers will supply the progress of the production via pictures and videos.
After-sale service: We can support over-sea installation, guide the installation via video or according to client's require.
Tech Data
Bmm Dmm Hmm Smm Amm Emm Cmm Pmm Rmm emm
500 500 900 900 700 776 1300 1565 1700 1400
650 1060 850 926
800 1000 1440 1140 1126 1565
1000 630 1640 1360 1360 1400 1718 1400
1200 1100 1850 1600 1610 1520 1800 1970
1400 800 1150 2050 1800 1810 1400 1697 2200 1520

Carbon Steel Reversible Belt Conveyor 500MM 650MM 800MM Width SimpleCarbon Steel Reversible Belt Conveyor 500MM 650MM 800MM Width Simple
