315mm Length Carbon Steel Material Conveyor Carrying Idler Roller
315mm Length Carbon Steel Material Conveyor Carrying Idler Roller
315mm Length Carbon Steel Material Conveyor Carrying Idler Roller
315mm Length Carbon Steel Material Conveyor Carrying Idler Roller
315mm Length Carbon Steel Material Conveyor Carrying Idler Roller
315mm Length Carbon Steel Material Conveyor Carrying Idler Roller
Specifications
Brand Name :
JINRUI
Model Number :
89mm
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
20 SET
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
30 set per month
Delivery Time :
10-15 working days
Packaging Details :
seaworthy packing
Material :
Carbon steel
Usuage :
belt conveyor
Product name :
Conveyor Carrying Idler Roller
After-sales service provided :
Online support
Dimension(l*w*h) :
Customized Size
Working life :
30000h
Description

315mm Length Carbon Steel Material Conveyor Carrying Idler Roller

1. Use environment and working conditions

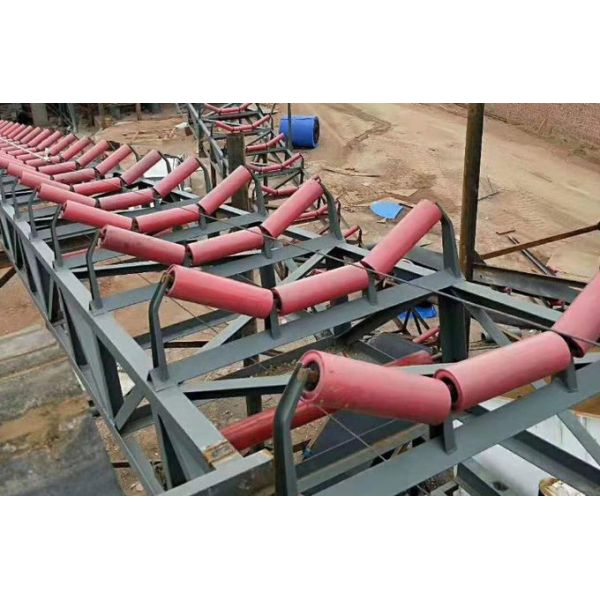

Conveyor Carrying Idler Rollers are widely used in open-air dusty and corrosive environment, such as mines, power plants, steel plants, stone plants, cement plants, coal washing plants, salt plants, alkali plants, chemical fertilizer plants, docks and other transportation places often use grooved rollers.

315mm Length Carbon Steel Material Conveyor Carrying Idler Roller

2. Product characteristics

2.1. Carrying Roller Idler have corrosion resistance: acid, alkali and salt are difficult to corrode.
2.2,Strong hardness of Carrying Roller Idler: strong abrasion resistance.
2.3. Good sealing: the Carrying Roller Idler are fully sealed and equipped with plastic labyrinth seals at both ends, so that the oil and grease will not leak, which can make the rolling shaft run for a long time; the slotted rollers are in a fully sealed state.

2.4. Ceramic surface of Carrying Roller Idler: forming oxide film, smooth surface, not adhering to materials, small friction coefficient in contact with conveyor belt, reducing the winch driving force.
2.5. Long service life of Carrying Roller Idler: slotted rollers last 2-5 times longer than steel rollers, and can reduce belt wear and tear, the belt does not run edge, prolonging belt service life.
2.6,Low operating cost: Carrying Roller Idler can reduce the comprehensive cost of belt conveyor and reduce the maintenance time.

3. More attention:
3.1. During the installation, pay attention to the assembly dimensions of all parts of the fuselage and keep the straightness of the whole machine.
3.2. Tighten bolts when installing bolt fasteners.
3.3. The center line of the belt at both ends shall be aligned when making the belt joint to prevent the belt from running off.
3.4 When installing the protection part of the electric appliance, be careful to prevent damage.

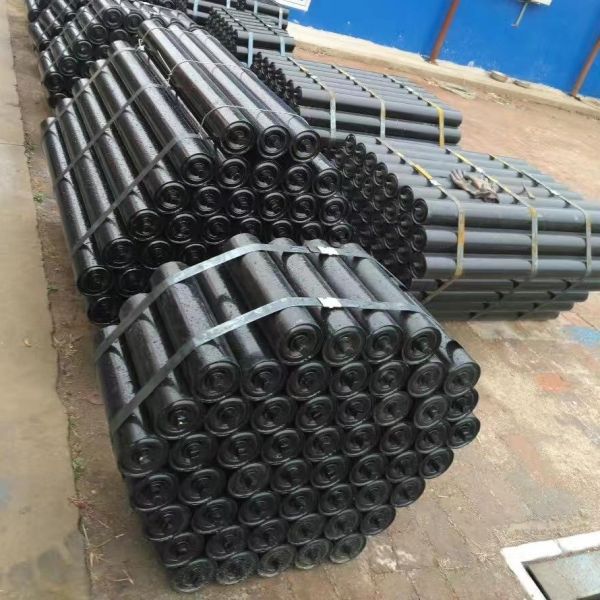

4. Packing Details:
4.1, Outer packing is plywood case, which is up to the international standards.
4.2, Inner packing is Moisture-proof and water-proof membrane.

4.3, All of package are wrapped by 0.5mm steel belt to further strengthen.

315mm Length Carbon Steel Material Conveyor Carrying Idler Roller315mm Length Carbon Steel Material Conveyor Carrying Idler Roller

5. Maintenance and repair
5.1 under normal conditions, the conveyor is required to start without load and avoid short-time starting.
5.2 it is necessary to check whether there is oil leakage in the reducer regularly, and whether the regular oil filling volume is in conformity with the construction in time
Correct and supplement.
5.3 if there is squeal at the driving drum, it means that the belt is slipping. Check whether the belt is tensioned.
5.4 the belt joint shall be inspected frequently, and the damaged parts shall be cut and redone in time, and the damaged parts shall be protected during redoing
6. Tech data
Belt width(mm) Roller Bearing NO.
800 D L
1000 89 315 204,205
1200 108 380 204,205,305
1400 133 465 205,305,206,306
1600 133 530 205,305,206,306
1800 159 600 205,306,307,308,309
2000 159 670 207,309,308
2200 194 800 207,307,308,309
2400 194 900 206,307,308,309
315mm Length Carbon Steel Material Conveyor Carrying Idler Roller
