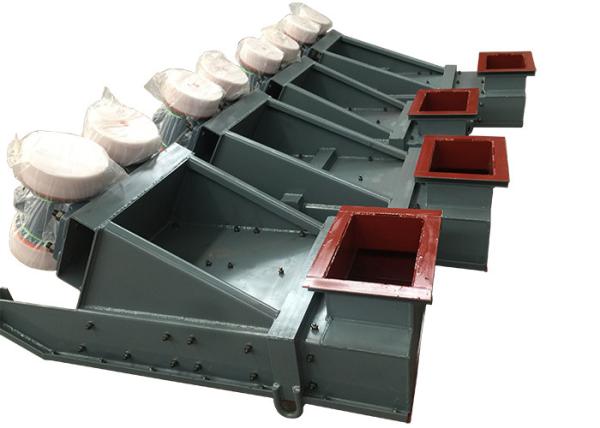

Soil Vibratory Feeder Low Power Consumption 600Χ 1200Χ 250mm Trough Size
Soil Vibratory Feeder Low Power Consumption 600Χ 1200Χ 250mm Trough Size
Soil Vibratory Feeder Low Power Consumption 600Χ 1200Χ 250mm Trough Size
Soil Vibratory Feeder Low Power Consumption 600Χ 1200Χ 250mm Trough Size
Specifications
Brand Name :
JINRUI
Model Number :
ZG
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1SET
Payment Terms :
L/C, T/T
Supply Ability :
10 SETS PER WEEK
Delivery Time :
5-7 WORK DAYS
Packaging Details :
Outer packing is plywood case
Application :
granule, coal, Feading, Ore, Mining Industry
Product Name :
Vibrating Force Adjustable And Easy To operation Vibratory Feeder For Soil
Function :
Evenly Feeding
Voltage :
220V/380V/415V
Color :
Customer required
Power type :
Electric, Electromagnetic, vibrating
Description

Vibrating Force Adjustable And Easy To operation Vibratory Feeder For Soil

1 Features
1. Smoothly vibrating and long service life
2. Vibrating force adjustable, easy to operation.
3. Low noise and power consumption
4. Simple structure, easy to maintenance.
6. Simple structure
2. General Description
benefit the system with high and stable yields and safe operation. The vibratory feeder facilitates materials classification, improves the system efficiency, and saves land space and power energy, which is widely used in artificial sand making system, mining, building, material making, chemical industry, metallurgy, water conservancy and other industries.
3. Working Principle
There are two eccentric shafts rotating at high speed at the same time from opposite directions, thus the strong centrifugal force is formed. The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line. When materials are fed into the feeder, they may be thrown up and move like PARA curve, then fall down. The materials will move forward on the slope surface of the feeder
Model Vibrating Motor
Productivity Feeding Tough Size Granularity
≤ T/h B Χ L Χ H (mm) ≤ mm Model Power (kw)
ZG60-4 85 600Χ 1200Χ 250 50 16-4 0.75Χ 2
ZG70-4 100 700Χ 1300Χ 280 50 16-4 0.75Χ 2
ZG80-4 200 800Χ 1600Χ 300 50 16-4 0.75Χ 2
ZG90-4 220 900Χ 1600Χ 350 50 20-4 1.1Χ 2
ZG100-4 240 1000Χ 1600Χ 350 50 32-4 1.5Χ 2
ZG110-4 400 1100Χ 1800Χ 400 50 32-4 1.5Χ 2
ZG120-4 440 1200Χ 2000Χ 400 50 32-4 1.5Χ 2
ZG80-6 160 800Χ 1600Χ 350 50 30-6 2.2Χ 2
ZG110-6 320 1000Χ 1600Χ 350 50 50-6 3.7Χ 2
ZG150-4 500 1500Χ 2200Χ 400 50 50-6 3.7Χ 2
Applications:
1. ZGseries vibrating feeders can be used in many industries, including metallurgy, coal, chemicals, building materials, ceramics, abrasives, food and so on.
2. The vibrating feeder can feed materials of block, powder and compound shapes from stock bin to the processing equipment uniformly, quantificationally and continuously, quite suitable for automatic proportioning, quantitative packaging and automatic control
Packing Details:
1, Outer packing is plywood case, which is up to the international standards.
2, Inner packing is Moisture-proof and water-proof membrane.
3, All of package are wrapped by 0.5mm steel belt to further strengthen.
DeliveryDetail:
3-5 working days after receiving deposits.
