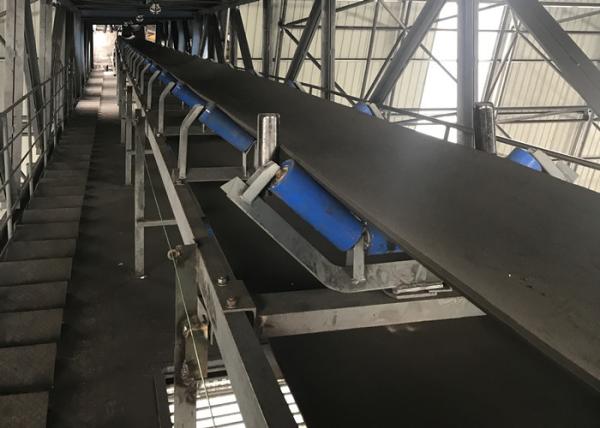

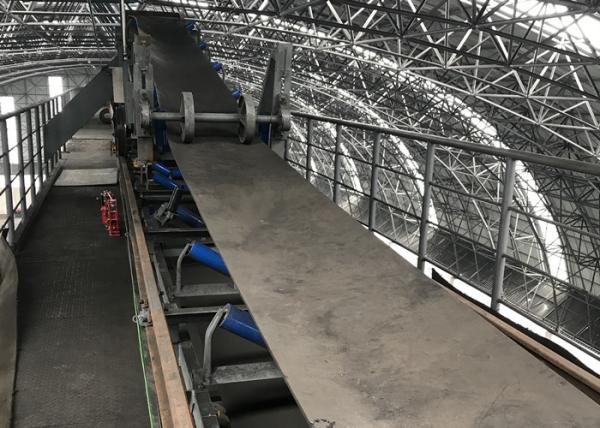

Motorized Pulley Driven Inclined Rubber Belt Conveyor Simple Structure

Inclined rubber belt conveyors are a general-purpose belt conveyor, used in metallurgy, coal, mining and other departments. Various bulk and granular materials with a specific gravity of 0.5 to 2.5t / m3 can be conveyed, which can be used to convey articles. The applicable working environment temperature is between -15 ° C and 40 ° C; Inclined rubber belt conveyors can also be used for horizontal chemical material transportation. Determine the angle of inclination according to the nature of the material when conveying obliquely upward.Inclined rubber belt conveyors are mainly composed of several major components, such as a driving device, a transmission roller, a redirecting roller, a conveyor belt, a roller component, a tensioning device, a supporting member, and a safety protection device.

Application

Inclined rubber belt conveyors are the logistics and transportation machinery widely needed in many industrial sectors. Due to the variety and wide specifications of belt conveyors, Inclined belt conveyorscan be applied to the logistics and transportation requirements of chemical, light industry, food, food, building materials, post and telecommunications, and many other departments; it can also meet various operations such as docks, storage yards, warehouses, and workshops. Line transportation requirements. Belt conveyors use belts, steel belts, steel fiber belts, plastic belts, and chemical fiber belts as conveyors to transport materials and haul workpieces. Its characteristic is that the conveyor belt that carries the material is also a traction member that transmits power, which is significantly different from other conveyor machinery. Inclined belt conveyors is the most widely used type in continuous conveyors, and it is mainly belt.

Selection Conditions

• Material to be processed: _____

• Handling capacity:_____

• Bulk Density: _____t/m3

• Material temperature: _____℃

• Water content:____%

• Material is corrosive or not: ____

• Material is sticky or not: ____

• Working environment temperature: ______ ℃

• Working voltage:____V_____hz_____phase

Technical Parameters
