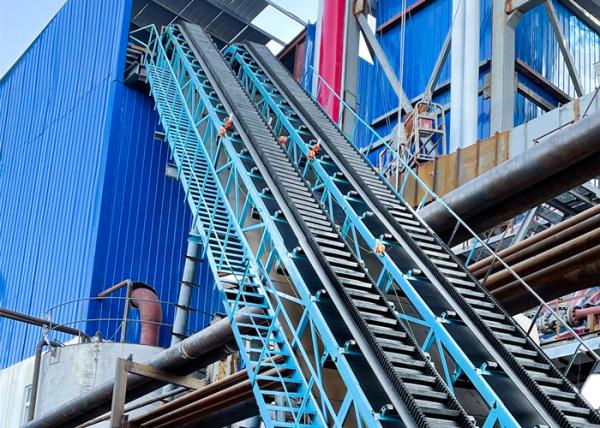

DJB650 0.8m/S Motorized Pulley Corrugated Sidewall Conveyor Belt Machine

Corrugated Sidewall Conveyor Belt Machine is suitable for bulk materials with small particle size, the bulk density of materials is between 0.5~2.5t/m ³, the conveying angle is 30 °90 °, and the ambient temperature range is-25 °40 ℃. It is widely used in coal, building materials, construction, metallurgy, electric power, chemical industry, environmental protection and other industries.

Working principle of Corrugated Sidewall Conveyor Belt Machine
The traction component and load-bearing component of the high-angle belt conveyor is a rubber conveyor belt with corrugated edge and diaphragm. The rubber belt is wound around the drive drum and redirection drum at both ends of the frame to form a closed circulation loop.
When the transmission device drives the transmission drum to rotate, the friction between the transmission drum and the rubber belt drives the rubber belt to run along a predetermined track; the conveyed material is added to the rubber belt by the guide trough, and the material is transported to the unloading device at the head with the movement of the rubber belt, and finally unloaded from the discharge port under the action of centrifugal force and gravity.

Advantages of Corrugated Sidewall Conveyor Belt Machine

1.Low energy consumption.

2.Convenient connection.

3.The conveyor belt with corrugated rib and diaphragm plate has a conveying angle of 90 °
4.The main parts can be used with the general conveyor belt, which is convenient for use and maintenance and The structure is simple.
5.Large conveying capacity. Because the conveyor belt has corrugated rib, its loading end face increases, and the conveying capacity is larger than that of general belt conveyor at the same inclination angle

Technical parameters for reference of Corrugated Sidewall Conveyor Belt Machine
