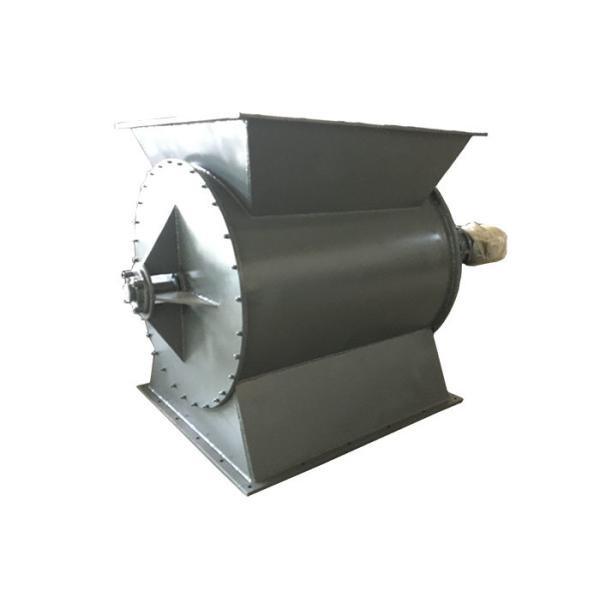

Handling Power Material Impeller Feeder Star Type Ash Unloading Valve Cast Iron

I. Overview.

The Star Type Ash Unloading Valve is generally made of cast or welded carbon steel plate. It is one of the main equipment for ash discharge of dust removal equipment and other equipment. The electric ash unloading valve is divided into normal temperature type and high temperature type, which is composed of motor, gear difference planetary reducer or needle fiber cycloid reducer and rotary discharger. It has two series and 60 specifications. The inlet and outlet flanges are type A and the circular ones are type B.

The Star Type Ash Unloading Valve is the main equipment for dust discharge, air supply and other equipment feeding, which is suitable for powdery materials and granular materials, and is widely used in environmental protection, metallurgy, chemical industry, grain, food and other industrial sectors.

Characteristics are below:

a. The Star Type Ash Unloading Valve has high processing precision and air locking function. It can be used as the quantitative feeder of powder in crushing and classification systems, and as the unloader of separation, dust collection and other systems.
b. Smooth operation and low noise.
c. Because the bearing and the tooth shell are at a distance from the box, the high temperature lubrication has been greatly improved.
d. Cast iron, cast steel, stainless steel, titanium steel and other materials can be used, and the flange can be square or circular and other structural forms to meet the different needs of users.

II. Working principle and structural characteristics

The star type ash unloading valve is rotated in the cylindrical casing by the rotor with several blades. The materials falling from the upper hopper are filled in the space between the blades and discharged with the rotation of the blades. The valve can be made of cast iron, cast steel, stainless steel, titanium steel and other materials. The flange port can be square or circular and other structural forms to meet the different needs of users.

III. Technical Datas

YJD A Model Star Type Ash Unloading Valve Parameter

IV. Instructions for use

1. Check whether the motor wiring is correct and reliable before use, and whether to install overload protection.

2. This product has been added No. 00 lithium grease before leaving the factory.

3. This product is suitable for powder dry materials and fine particle dry materials, such as high humidity and high viscosity materials, high temperature materials need to be customized separately.

4. The safety should be paid attention to when starting, and the hand should not be extended to the rotor part.
