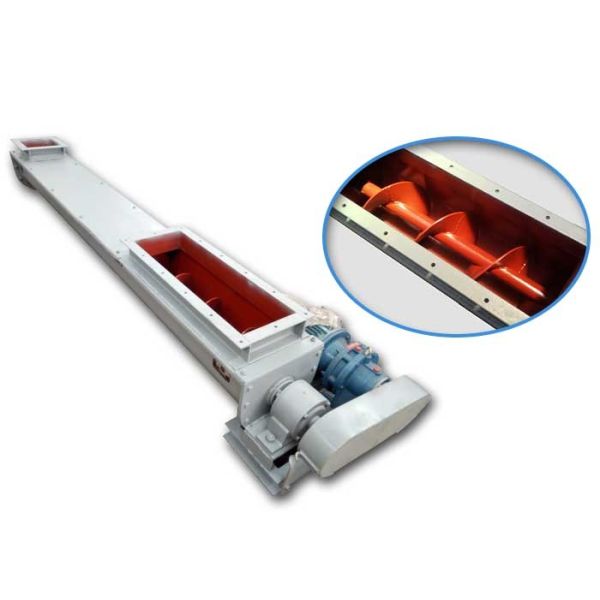

Easy Maintenance 45ton Capacity Wood Chip Trough Auger Conveyor

Features of Trough Auger Conveyor

(1)The spiral shaft and shaft connection are all embedded tongue type, which makes the installation, disassembly and maintenance very convenient, and the failure rate is less.

(2)The conveyor is of variable diameter structure, the hanging bearing can not contact with the material, so it has a long life.

(3)It is not easy to jam or block the material when conveying, and the head and tail bearing seat are outside the shell, so the bearing is well sealed and can be used for a long time.

(4)The structure is simple and the size is small, so the occupied area and space is not very big.

(5)It can have more than one inlet and outlet, and can be arranged flexibly.

(6)Its conveying direction is reversible, so it can convey materials to two directions at the same time.

(7) It is safe and reliable in operation, and can complete the process of conveying, mixing, stirring, loosening, heating and cooling.

Application scope of Trough Auger Conveyor

U Model Screw Conveyer is widely used in building materials, metallurgy, chemical industry, machinery, light industry, grain and food industry. U Model Screw Conveyer is suitable for conveying powder Shaped, granular, small bulk materials, such as cement, fly ash, grain, chemical fertilizer, mineral powder, sand, soda and so on. U-shaped screw conveyor is not suitable for transporting materials that are easy to deteriorate, sticky and easy to caking. The working environment temperature of the conveyor is usually-20 °40 °, the temperature of the conveying material is generally 20 °80 °℃, the U-shaped screw conveyor is suitable for horizontal and small inclination arrangement, and the inclination angle is not more than 15 degrees. If the tilt angle is too large, the tubular screw conveyor should be selected.

Technical parameter of Trough Auger Conveyor

Selection Conditions of Trough Auger Conveyor

FAQ:

1. What’s the information should I provide when inquiry?
More details or drawings, more better.
A: which materials that conveying
B: handing caoacity
C: lift height
D: conveying length ?
Or other specials you give us will be more appreciated.

2. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons.
B: remote control with push buttons

3. How long is your warranty?
Our warranty is 15 months after received the goods.
