Lightweight PU Belt Jointing Machine
Lightweight PU Belt Jointing Machine
Lightweight PU Belt Jointing Machine
Lightweight PU Belt Jointing Machine
Lightweight PU Belt Jointing Machine
Lightweight PU Belt Jointing Machine
Lightweight PU Belt Jointing Machine
Lightweight PU Belt Jointing Machine
Specifications
Brand Name :
RUNNING
Model Number :
PA1500
Certification :
CE
Place of Origin :
QINGDAO CHINA
MOQ :
1 set
Price :
$5,000~$6,000 / set
Payment Terms :
T/T, L/C
Supply Ability :
50sets/month
Delivery Time :
In stock
Packaging Details :
Plywood case (Fumigation-free)
Usage :
PU belts jointing process
Applied belt width :
1500mm or customized
Heating type :
Electrical
Cooling type :
Air fast cooling
Machine weight :
127kg
Overall size :
2030*470*410mm
Description

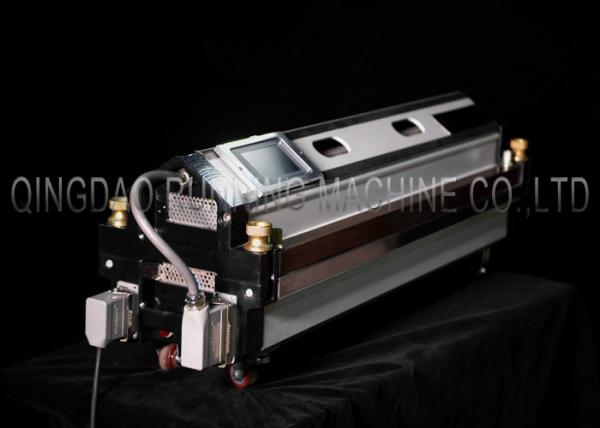

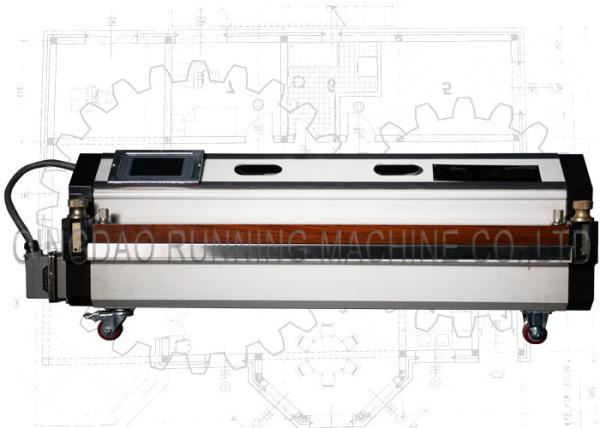

Lightweight Aluminum Structure 1500mm PU Conveyor Belt Jointing Machine

Application & Brife introduction:

The PU conveyor belt jointing machine is an all-in-one solution for splicing thermoplastic conveyor belts (e.g. PVC polyurethane)

No external control box, air pump, or water cooling tank are required.

The presses are provided with electric heating and built in air cooling. The splice process runs fully automated.

• Splice pressure is applied by an internal compressor, max. 2 bar (28 psi)

• Heats up to a splice temperature of max. 200°C (392°F)

• Keeps it at the splice temperature (adjustable dwell time)

• Cools down to the cooling temperature (safe temperature to take the belt out)

• For thicker belts a preheat temperature and preheat dwell time can be applied

• The bottom heating can be set lower or higher than the top heating

• The splice surface is 130 mm ; the heated zone is 110 mm.

Lightweight PU Belt Jointing Machine

Machine specification of PU conveyor belt jointing machine:

Model 300 600 900 1200 1500
Effective length 305mm / 12″ 610mm / 24″ 914mm / 36″ 1219 mm / 48″ 1524 mm / 60″
Effective width 120mm / 4.7″ 120mm / 4.7″ 120mm / 4.7″ 120 mm / 4.7″ 120 mm / 4.7″
Weight lower part 11.5 kg 18kg 23kg 28.5 kg 32 kg
Weight upper part 12kg 13kg 18kg 25.5 kg 30 kg
Total weight 21kg 30kg 38kg 54 kg 62 kg
Overall height 220mm 225mm 225mm 225mm 225mm
Max. pressure 2 Bar / 28 PSI 2 Bar / 28 PSI 2 Bar / 28 PSI 2 Bar / 28 PSI 2 Bar / 28 PSI
Max. temperature 200 ℃/390 ℉ 200 ℃/ 390 ℉ 200 ℃/ 390 ℉ 200 ℃/ 390 ℉ 200 ℃/ 390 ℉
Packaging list(L x W x H) 790x430x420mm 1090x430x420mm 1390x430x420mm 1720*450*430mm 2030*470*410mm
Gross weight 50 kg 72 kg 85kg 104 kg 127 kg

Functions of PU conveyor belt jointing machine:

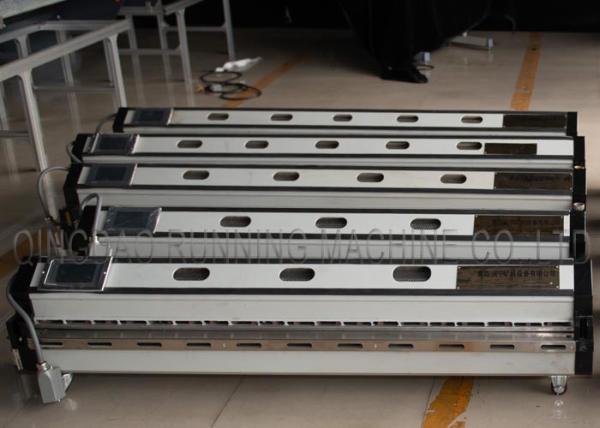

The PA series air cooled jointing machine, have different models for width from 24″ (300 mm) to 84″ (2100 mm)

1. It takes 5 minutes to heat up to 172℃,and takes 3 minutes to cool down to 60℃.temperature error below 2℃,

completely meets the requirement of the belt joint.

2. Balloon adding pressure:0-3.0kg adjustable.

3. Intelligent digital display control: automatic heating, automatic temperature control, automatically cut off power supply.

4. Pump water pump, use conveniently;

5. Two machined stainless platen, the beams are firm, durable and no distortion.

Lightweight PU Belt Jointing Machine

Introduction of PU conveyor belt jointing machine:

Lightweight PU Belt Jointing Machine

Shipping package of PU conveyor belt jointing machine:

Lightweight PU Belt Jointing Machine

Other related machines / tools for your choice:

Lightweight PU Belt Jointing Machine
