1600Mm Fabrics Enhance Conveyor Belt Vulcanizing Machine Sectional Belt Vulcanizer
1600Mm Fabrics Enhance Conveyor Belt Vulcanizing Machine Sectional Belt Vulcanizer
1600Mm Fabrics Enhance Conveyor Belt Vulcanizing Machine Sectional Belt Vulcanizer
1600Mm Fabrics Enhance Conveyor Belt Vulcanizing Machine Sectional Belt Vulcanizer
1600Mm Fabrics Enhance Conveyor Belt Vulcanizing Machine Sectional Belt Vulcanizer
1600Mm Fabrics Enhance Conveyor Belt Vulcanizing Machine Sectional Belt Vulcanizer
1600Mm Fabrics Enhance Conveyor Belt Vulcanizing Machine Sectional Belt Vulcanizer
1600Mm Fabrics Enhance Conveyor Belt Vulcanizing Machine Sectional Belt Vulcanizer
1600Mm Fabrics Enhance Conveyor Belt Vulcanizing Machine Sectional Belt Vulcanizer
1600Mm Fabrics Enhance Conveyor Belt Vulcanizing Machine Sectional Belt Vulcanizer
Specifications
Brand Name :
RUNNING
Model Number :
RVP-1000
Certification :
ISO CE SGS
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD 7999 / SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 SETS/M
Delivery Time :
7DAYS
Packaging Details :
Wooden Package
Warranty :
2 Years
After-sales service provided :
commissioning and training
Power(w) :
20 HP
Voltage :
380V/50HZ,customized
Application :
Joint Rubber Conveyor Belt
Material :
Aluminum alloy
Control method :
Automatic
Description

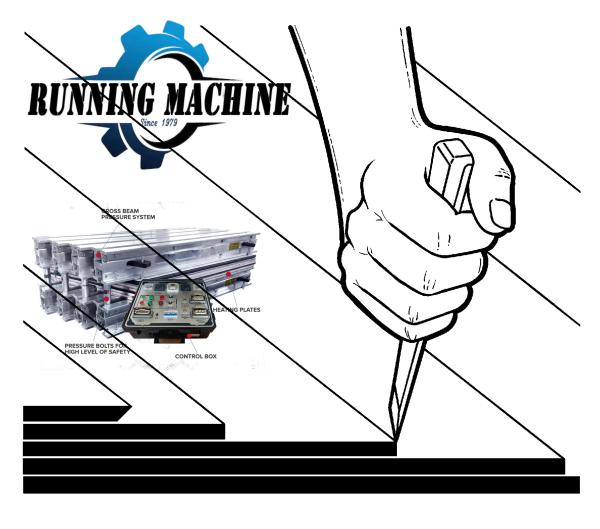

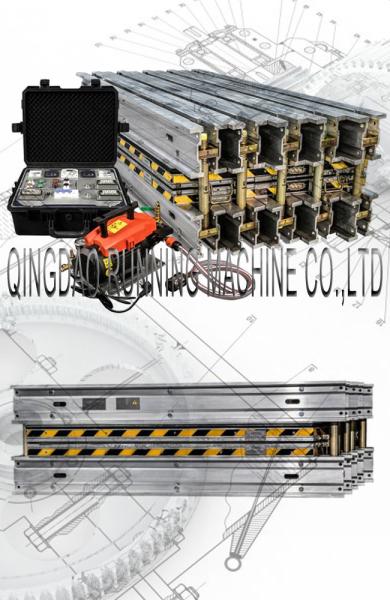

Heavyweight Sectional Conveyor Belt Vulcanizing Machine With E Type Cross Beam

Easy to set-up and operate.


This modular design can be set up quickly and efficiently.

Our vulcanizers are designed to provide effective repairs to all kinds of belting,

including spot and puncture repair, belt edge repair and longitudinal tears.

1600Mm Fabrics Enhance Conveyor Belt Vulcanizing Machine Sectional Belt Vulcanizer

Design Features
  • Water pressure bag (also can use air pressure) Press for 100PSI, 200PSI etc. surface pressure for textile and steel cord belts, Up to 1.8Mpa/2.0Mpa.
  • 100 p.s.i. (7 kg/cm sq.) units mostly suitable for splicing fabric ply belting
  • 200 p.s.i. (14 kg/cm sq.) units usually used to do steel cord conveyor belting
  • Max Belt width: from 650mm to 3000mm

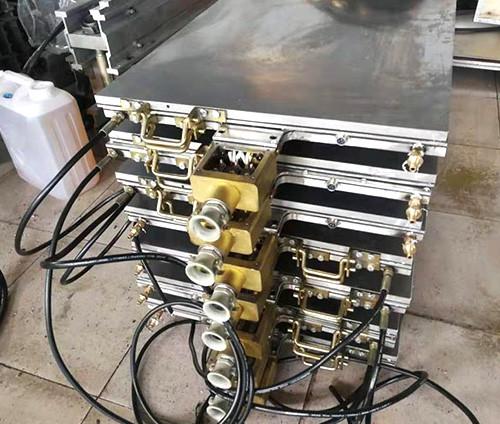

  • Different heating platen size and combination.
  • Degree of the heating platen: 22 degree bias angle or 16 degree, 20 degree, rectangle and other degree is optional.
  • Power Voltage: 380V. 660V. 525V480V. 440V. 415V. 400V or 220V
  • Vulcanizing temperature:145℃ (adjustable 0~200℃)
  • Temperature-rising time (from normal temperature to vulcanizing temperature): no more than 25 min, accords to different conditions, actually, normal conditions, is around 20 mins.
  • Improved cooling system, when use pressure pump for cooling, cooling time only 5mins (cooling from 145 to 75 degrees)
  • 1600Mm Fabrics Enhance Conveyor Belt Vulcanizing Machine Sectional Belt Vulcanizer
Parameters

Specifications of RVP series Belt Joint Vulcanizing Machine

100 PSI(7kg/cm sq.) units suitable for splicing steelcord conveyor belting

Model

Number

 Max Belt Width(in) Platen Dimensions Max Splice Length Spanner Bars Qty Bolt/Nut Assy. Main Component Weights
A(mm) B(mm) C(mm) QTY Type Length Platen Bar

Bolt/

Nut

Assy.

Total

Weight
in mm in mm in mm in mm in mm in mm kg kg kg kg
RVP 1930 24 610 19 480 30 760 28 705 13 330 2 sets EA 42 1065 4 25 24 8 225
RVP 1937 30 760 19 480 37 940 34 870 13 330 2 sets EA 49 1245 4 31 28 8 255
RVP 1943 36 915 19 480 43 1090 40 1015 13 330 2 sets EA 55 1395 4 36 31 8 281
RVP 2643 36 915 26 660 43 1090 40 1015 20 510 3 sets EA 55 1397 6 49 31 8 405
RVP 2843 36 915 28 710 43 1090 40 1015 22 560 3 sets EA 55 1397 6 53 31 8 416
RVP 3343 36 915 33 840 43 1090 40 1015 27 685 4 sets EA 55 1397 8 62 31 8 522
RVP 3743 36 915 37 940 43 1090 40 1015 31 785 4 sets EA 55 1397 8 70 31 8 544
RVP 1950 42 1065 19 480 50 1270 46 1175 13 330 2 sets EA 62 1574 4 42 35 8 311
RVP 2850 42 1065 28 710 50 1270 46 1180 22 560 3 sets EA 62 1574 6 61 35 8 461
RVP 3350 42 1065 33 840 50 1270 46 1180 27 685 4 sets EA 62 1574 8 72 35 8 579
RVP 4250 42 1065 42 1065 50 1270 46 1180 36 915 5 sets EA 62 1574 10 92 35 8 722
RVP 2856 48 1220 28 710 56 1420 52 1320 13 330 2 sets EA 68 1727 4 47 38 8 336
RVP 3756 48 1220 37 940 56 1420 52 1320 22 560 3 sets EA 68 1727 6 69 38 8 499
RVP 4256 48 1220 42 1065 56 1420 52 1320 31 785 4sets EA 68 1727 8 91 38 8 655
RVP 2656 48 1220 26 660 56 1420 52 1320 36 915 5 sets EA 68 1727 10 103 38 8 783
RVP 3358 48 1220 33 840 58 1475 54 1370 20 510 3 sets EA 70 1778 6 66 39 8 498
RVP 3758 48 1220 37 940 58 1475 54 1370 27 686 4 sets EA 70 1778 8 84 39 8 643
RVP 4558 48 1220 45 1140 58 1475 54 1370 31 785 4 sets EA 70 1778 8 94 39 8 672
RVP 2858 48 1220 28 710 58 1475 54 1370 39 990 5 sets EA 70 1778 10 114 39 8 824
RVP 2862 54 1370 28 840 62 1575 57 1460 22 560 3 sets EA 74 1879 6 76 42 8 538
RVP 3365 54 1370 33 915 65 1650 60 1530 27 685 4 sets EA 77 1955 8 94 43 8 700
RVP 3665 54 1370 36 1015 65 1650 60 1530 30 760 4 sets EA 77 1955 8 103 43 8 723
RVP 4068 55 1395 40 480 68 1725 63 1600 34 865 4 sets EAX 80 2032 8 119 55 9 870
RVP 1969 60 1525 19 610 69 1755 64 1625 13 330 2 sets EA 81 2057 4 57 46 8 392
RVP 2469 60 1525 24 710 69 1750 64 1625 18 455 3 sets EA 81 2057 6 73 46 8 549
RVP 2871 60 1525 28 840 71 1800 66 1675 22 560 3 sets EAX 83 2108 6 87 57 9 664
RVP 3371 60 1525 33 915 71 1800 66 1675 27 685 4 sets EA 83 2108 8 103 47 8 748
RVP 3671 60 1525 36 1115 71 1800 66 1675 30 760 4 sets EAX 83 2108 8 112 57 9 866
RVP 4471 60 1525 44 1065 71 1800 66 1675 38 965 5 sets EA 83 2108 10 137 47 8 952
RVP 4273 60 1525 42 1065 73 1850 68 1720 36 915 5 sets EAX 85 2159 10 134 59 9 1073
RVP 1984 72 1830 19 480 84 2135 78 1975 13 330 2 sets EAX 96 2438 4 70 66 9 509
RVP 2886 72 1830 28 710 86 2185 80 2030 22 560 3 sets EAX 98 2489 6 106 68 9 772
RVP 3386 72 1830 33 840 86 2185 80 2030 27 685 4 sets EAX 98 2489 8 124 68 9 976
RVP 3786 72 1830 37 940 86 2185 80 2030 31 785 4 sets EAX 98 2489 8 139 68 9 1017
RVP 2897 84 2135 28 710 97 2465 90 2285 22 560 3 sets EAX 109 2768 6 119 75 9 850
