Specifications
Brand Name :
RUNNING
Model Number :
ZLJ-800×830
Certification :
ISO CE SGS
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD 5800 / SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 SETS / M
Delivery Time :
7 DAYS
Packaging Details :
WOODEN PACKAGE
Warranty :
2 Years
After-sales service provided :
Engineers available to service machinery overseas
Voltage :
380 420
Type :
portable conveyor belt vulcanizing machine
Application :
conveyor belt hot vulcanizing joint
Material :
Aluminum alloy
Control method :
automatic,full-automatic,PLC
Description

ZLJ-1000×830 High Quality Lightweight Conveyor Belt Vulcanizing Machine

THE SPLICING OF THE CONVEYOR BELT IS AS IMPORTANT AS THE CONVEYOR BELT ITSELF.

1. Why is it necessary to splice a conveyor belt?

All conveyor belts, regardless of type,are made as rolls with an open end. For the installation in the conveyor system and finally, for the
transport of goods, the conveyor belt should be connected in an endless loop.
PLC Control Conveyor Belt Vulcanising Machine Conveyor Belt Jointing Machine SGS
2. What are the most common splicing methods?
  • hot splicing
  • cold splicing

PLC Control Conveyor Belt Vulcanising Machine Conveyor Belt Jointing Machine SGS

3.How do I choose the right splicing machine?

  • Need to know belt width
  • Belt material (rubber , pvc ,pu )
  • Type of belt (Fabric Ply OR Steelcord )

PLC Control Conveyor Belt Vulcanising Machine Conveyor Belt Jointing Machine SGS

GOOD JOINTING MACHINES NEED TO BE SUPPLIED BY A PROFESSIONAL FACTORY

Once you have understood the above information, you can contact us - Qingdao Running Machinery Co. We not only provide conveyor belt jointing machines, but also provide conveyor belt jointing services.

1.Design Features

  • Lightweight compact design for easy transport
  • Thick copper pipe, can be water rapid cooling, save joint time.
  • All electrical systems are CE, CSA and UL approved
  • Durable for use in harshest of environments
  • Pressure bolts pass through the cross beam profile for a high level of safety
  • Exact temperature regulation via an electronic control box
  • Even pressure distribution across the splice area.
  • Vulcanizing temperature is uniform and accurate.
  • Automatic features for setting the temperature and curing time
  • Standard sizes are available (custom size upon request)

PLC Control Conveyor Belt Vulcanising Machine Conveyor Belt Jointing Machine SGS

2.Spare Parts for Vulcanizing Presses

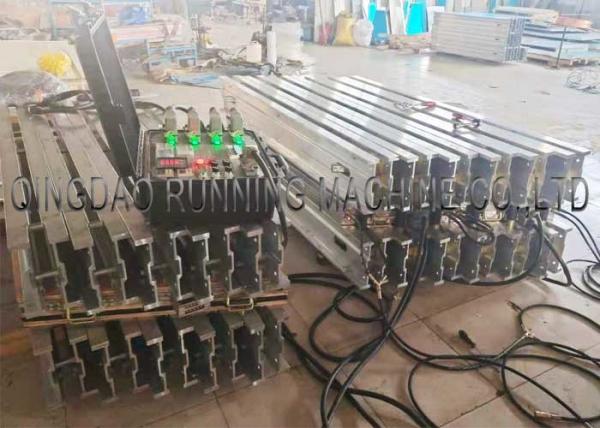

  • Control Box – The VUL-CON Switchgear Box is the most advanced control system in the world. Incorporating controls for 2 platens. Splice data can be stored and recalled through the built-in data logger.
  • Heating Element – Silicone Rubber heaters with wire-wound elements provide excellent physical strength capable of withstanding repeated flexing without compromising the life and performance of the heater.
  • Robust Rubber Pressure Bag – with aramid reinforcement distributes uniform pressure and is available in 22° bias and can be custom made upon request.

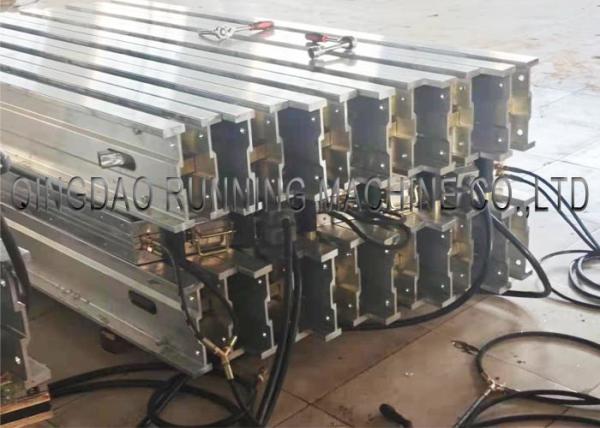

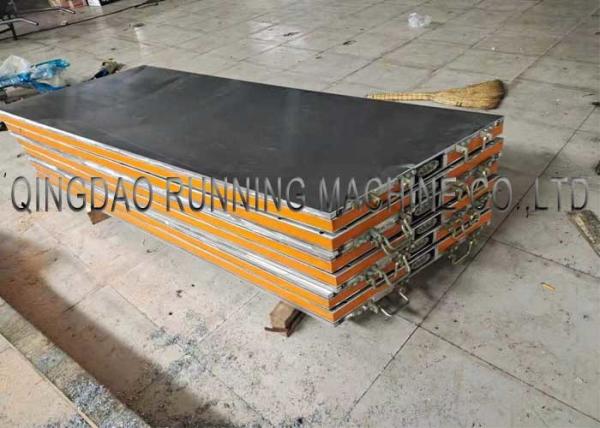

  • Platen--Each sectional press is constructed with aluminum flexible platens that contour to the conveyor belt surface during splicing
    Platens are individually designed and include extruded plank,silicone heating elements (up to 163 °C/325 °F), and durable

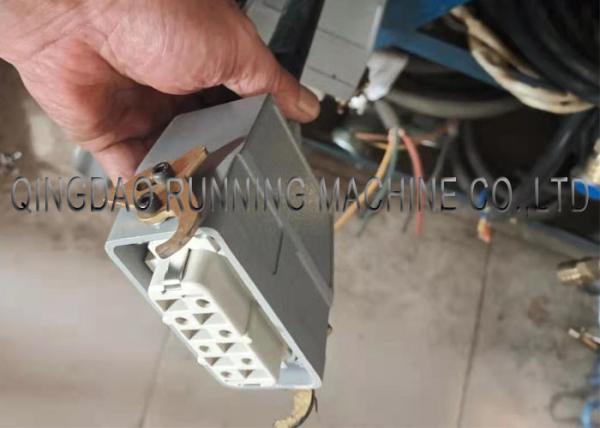

    composite insulating packaging Sturdy electrical connectors and moisture-proof latch enhance press durability
  • Platen Cables – Connects to the temperature controller and vulcanizing platens.

PLC Control Conveyor Belt Vulcanising Machine Conveyor Belt Jointing Machine SGS

Parameters
Model PA300 PA600 PA900 PA1200 PA1500 PA1500H PA1800 PA2100
Effective length 300mm / 12″ 600mm / 24″ 900mm / 36″ 1200 mm / 48″ 1500 mm / 60″ 1500 mm 1800 mm 2100 mm
Effective width 130mm / 5.1″ 130mm / 5.1″ 130mm / 5.1″ 130mm / 5.1″ 130mm / 5.1″ 130mm 130mm 130mm
Weight lower part 10 kg 16 kg 20 kg 28.5 kg 30 kg 45KG 64kg 71 kg
Weight upper part 11 kg 13 kg 18 kg 25.5 kg 30 kg 53kg 48kg 54kg
Total weight 21 kg 30 kg 38 kg 54 kg 62 kg 100 kg 121 kg 136kg
Overall height 220 mm 225 mm 225 mm 225 mm 225 mm 255 mm 255 mm 255 mm
Overall width 250mm 250mm 250mm 250mm 250mm 250mm 250mm 250mm
Overall length 505 mm 805 mm 1105 mm 1405 mm 1705 mm 1700 mm 2005 mm 2300 mm
Max pressure 2 Bar / 28 PSI 2 Bar / 28 PSI 2 Bar / 28 PSI 2 Bar / 28 PSI 2 Bar / 28 PSI 2 Bar / 28 PSI 1.5 Bar / 22 PSI 1.5 Bar / 22 PSI
Max. temperature 200 ˚C / 390 ˚F 200 ˚C / 390 ˚F 200 ˚C / 390 ˚F 200 ˚C / 390 ˚F 200 ˚C / 390 ˚F 200 ˚C / 390 ˚F 200 ˚C / 390 ˚F 200 ˚C / 390 ˚F
Power 1.2 kW 3.2 kW 4.5 kW 5.8 kW 7 kW 7.5KW 9KW 9.6KW
Weight (machine and case) 35KG 50kg 65kg 78kg 86kg 132KG 158kg 184kg
Packing Weight 50kg 72kg 89kg 104kg 115kg 153KG 169KG 246KG
Packaging list(L x W x H) 790*430*420 1090*430*420 1390*430*420 1720*450*430 1990*430*420 1990*430*520 2130*450*520 2500*450*520
