Water Cooling Conveyor Belt Vulcanising Press Hot Splicing Machine

NO.1 INTRODUCTION OF CONVEYOR BELT VULCANIZER

Conveyor belt vulcanizer, also called conveyor belt vulcanizing press or belt vulcanizing press machine. It's vulcanize equipment and tools for repairing & splicing of conveyor belt. It suits for various conveyor belt, such as EP, Rubber, Nylon, Canvas and Steel cord belt, etc.
The belt vulcanizer is dependable, lightweight and portable machine, which is widely used in the field of metallurgy, mining, power plants, ports, building materials, cement, coal mine, chemical industry, etc. Heating plates are available for rhombic, rectangular and modular type (two or more sets of heating plates together).

NO.2 TECHNICAL PARAMETERS

1. Vulcanization pressure 1.0-2.0 MPa;
2. Vulcanization temperature 145°C;
3. Difference in surface temperature of vulcanized plate ± 2°C;
4. Heating up time ( at normal temperature to 145°C )<20 minutes;
5. Voltage 220V/ 380V/415V/440V/480V/550V/660V, 50/60HZ, 3PHASES;
6. Temperature adjustment range 0 to 199°C;
7. Timer adjustment range 0 to 99 minutes;

Machine specification of Conveyor Belt Splicing Tools

Our Advantages:

• Control Box – The VUL-CON Switchgear Box is the most advanced control system in the world. Incorporating controls for 2 platens. Splice data can be stored and recalled through the built-in data logger.
• Heating Element – Silicone Rubber heaters with wire-wound elements provide excellent physical strength capable of withstanding repeated flexing without compromising the life and performance of the heater.
• Robust Rubber Pressure Bag – with aramid reinforcement distributes uniform pressure and is available in 22° bias and can be custom made upon request.

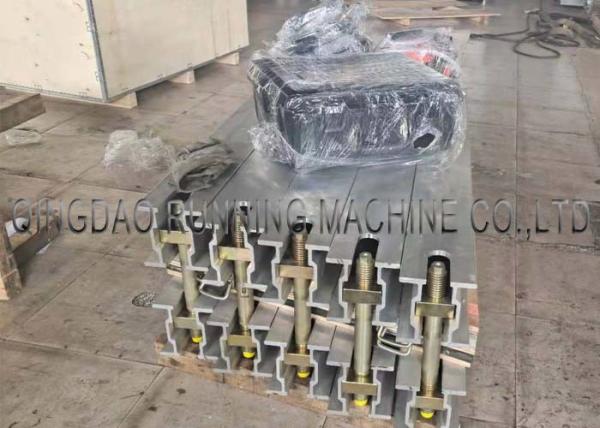

• Platen--Each sectional press is constructed with aluminum flexible platens that contour to the conveyor belt surface during splicing
  Platens are individually designed and include extruded plank,silicone heating elements (up to 163 °C/325 °F), and durable composite insulating packaging Sturdy electrical connectors and moisture-proof latch enhance press durability
• Platen Cables – Connects to the temperature controller and vulcanizing platens.

Package of Conveyor Belt Splicing Tools:

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tiger,we will use pe film for packing or pack it according to customers special request.
