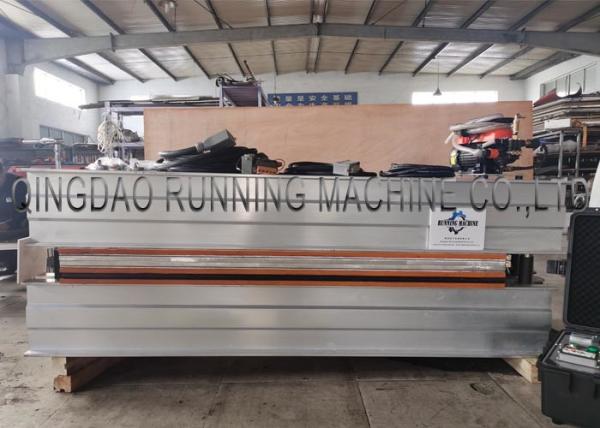

Lightweight Rubber Conveyor Belt Hot Vulcanizing Machine 1400mm Conveyor Belt Splicer
Lightweight Rubber Conveyor Belt Hot Vulcanizing Machine 1400mm Conveyor Belt Splicer
Lightweight Rubber Conveyor Belt Hot Vulcanizing Machine 1400mm Conveyor Belt Splicer
Lightweight Rubber Conveyor Belt Hot Vulcanizing Machine 1400mm Conveyor Belt Splicer
Lightweight Rubber Conveyor Belt Hot Vulcanizing Machine 1400mm Conveyor Belt Splicer
Lightweight Rubber Conveyor Belt Hot Vulcanizing Machine 1400mm Conveyor Belt Splicer
Lightweight Rubber Conveyor Belt Hot Vulcanizing Machine 1400mm Conveyor Belt Splicer
Lightweight Rubber Conveyor Belt Hot Vulcanizing Machine 1400mm Conveyor Belt Splicer
Specifications
Brand Name :
RUNNING
Model Number :
ZLJ-1400*830
Certification :
CE
Place of Origin :
QINGDAO CHINA
MOQ :
1 set
Price :
$8,000 ~ $10,000 / set
Payment Terms :
T/T, L/C
Supply Ability :
50 sets/month
Delivery Time :
7 work days
Packaging Details :
Plywood case (Fumigation free)
Usage :
conveyor belt splicing
Splicing width :
1400mm or customized
Heating plate size :
1620*830mm
Heating power :
18.6kw
Overall size :
1930*830*760mm
Weight :
1100kg
Description

Lightweight Rubber Conveyor Belt Hot Vulcanization Splicing Machine 1400mm Width

Usage:

The conveyor belt splicing machine is mainly used for splicing conveyor belt. It is the process of joining together two pieces of conveyor belt. Usually, this is done to either elongate the original conveyor belt or to repair a torn or damaged conveyor belt.

Lightweight Rubber Conveyor Belt Hot Vulcanizing Machine 1400mm Conveyor Belt Splicer

The hot vulcanization splicing is equivalent to 60%-80% of the strength of the conveyor belt itself. ( Jointing with cold viscose is equivalent to 40%-55% of the strength of the conveyor belt itself; The buckle (mechanical joint) connection is only 28%-45%).

Machine specification of rubber conveyor belt splicing machine:

Model

Belt Width

(mm)

 Power(kw)

Dimensions

(L*W*H mm)

 Weight(kg) Single Piece Weight(kg)
ZLJ-650*830 650 9.5 1370*830*630 430 45
ZLJ-650*1000 10.8 1370*1000*630 500 66
ZLJ-800*830 800 11.2 1520*830*630 535 70
ZLJ-800*1000 13.5 1520*1000*630 575 79
ZLJ-1000*830 1000 14.1 1720*830*630 595 82
ZLJ-1000*1000 15.7 1720*1000*630 620 95
ZLJ-1200*830 1200 16.5 1920*830*710 800 96
ZLJ-1200*1000 17.2 1920*1000*710 870 113
ZLJ-1400*830 1400 18.6 1930*830*760 930 107
ZLJ-1400*1000 20.7 2120*1000*760 1180 132
ZLJ-1600*830 1600 21.5 2320*830*800 1270 120
ZLJ-1600*1000 22.3 2320*1000*800 1460 146
ZLJ-1800*830 1800 23.3 2520*830*850 1380 137
ZLJ-1800*1000 25.6 2520*1000*850 1650 164
ZLJ-2000*830 2000 27.2 2720*830*950 1760 154
ZLJ-2000*1000 30 2720*1000*950 1860 182
ZLJ-2200*830 2200 29.2 2920*830*950 1860 165
ZLJ-2200*1000 34.1 2920*1000*950 1970 198

Lightweight Rubber Conveyor Belt Hot Vulcanizing Machine 1400mm Conveyor Belt Splicer

The heating element of conveyor belt jointing machine is made of rubber coated resistance heating wire. Compare with ordinary heater, it's more stable and faster heating speed.

Lightweight Rubber Conveyor Belt Hot Vulcanizing Machine 1400mm Conveyor Belt Splicer

The pressurizing element - Water pressure bladder is made of rubber, compared with ordinary metal pressure board, it has more balanced pressure, no rusting risk, lower leakage rish and longer service life.

Lightweight Rubber Conveyor Belt Hot Vulcanizing Machine 1400mm Conveyor Belt Splicer

Shipping package of conveyor belt jointing machine:

Lightweight Rubber Conveyor Belt Hot Vulcanizing Machine 1400mm Conveyor Belt Splicer

There is a lot of other machines for your choice, please feel free to contact us if you need more machine details.

Lightweight Rubber Conveyor Belt Hot Vulcanizing Machine 1400mm Conveyor Belt Splicer
