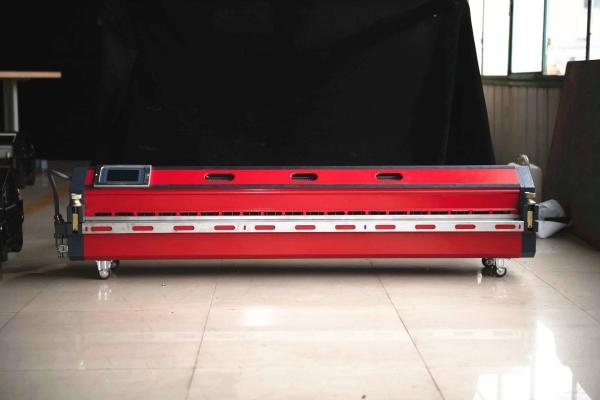

Portable All In One Automatic Air Cooling PVC Belt Splice Press Machine

Specification:

FRAME

Extruded aluminum alloy body, make the total machine lightweight, even 2100 press, only 112kgs. Both end caps machined by CNC machine. Outside high quality painting (red color is our standard color, we also can offer other color, like blue by your request), hand polishing the whole body, make sure is safe for your workers.

HEATING PLATEN

Include upper and lower heating platens, both use silicone Element heating system and work with titanium heating plate, can offer fast and even heating when jointing. Heating elements are completed sealed, covered by silicone rubber. Make sure is far from air, longer life time and moisture-proof, more safe. The inside heating elements distribution under control of computer, produced by automatic machine, not manually wired.

COOLING SYSTEM

Several high-performance fans on the upper frame ensure can cooling down from 180C to 65C only take 4m30s to 5m30s.

CONTROL PANEL

Built in the frame of the press and easy to operate. Temperature control (setting heating temperature and cooling temperature) and time control (dwell time setting) in one meter. Pressure control is independent, special supply from SMC pneumatic Japan, with pressure limitation, make sure the workers can’t set pressure higher than 2 bars, more safe.

PRESSURE SYSTEM

PA press has a maximum operating pressure of 2.0kg/cm (2 bars), that is applied with air pressure bag inside the bottom frame. Each air bag, we will test pressure and air tightness detection before install to the machine. The build in air compressor can make the pressure to 1 bar in 15~20S.

Parameters:

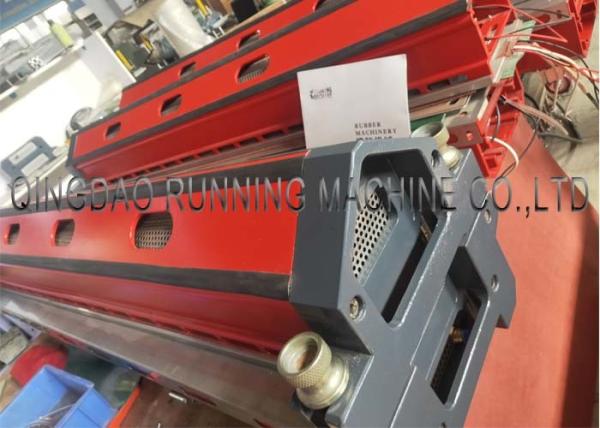

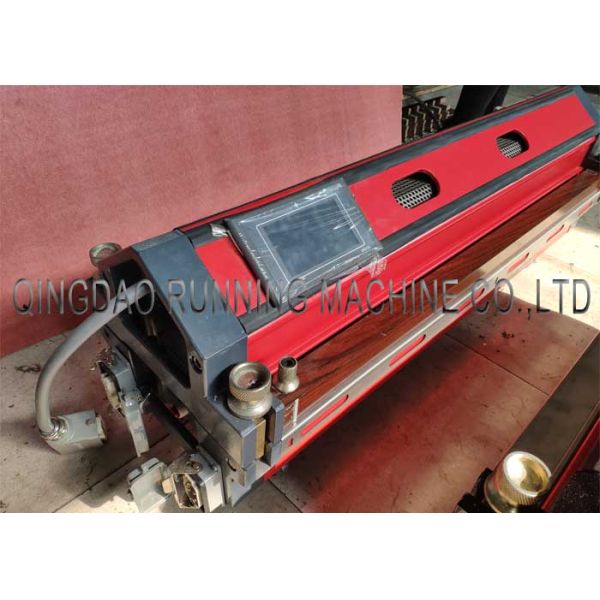

Detailed Images:

All In One Automatic Air Cooling PVC Belt Splice Press Machine is an all-in-one solution for splicing thermoplastic conveyor belts (e.g. PVC polyurethane). No external control box, air pump, or water cooling tank are required.

The presses are provided with electric heating and built in air cooling. The jointing process runs fully automated.

All In One Automatic Air Cooling PVC Belt Splice Press Machine also called conveyor belt vulcanizing press or belt vulcanizing press machine. It's vulcanize equipment and tools for repairing & splicing of conveyor belt. It suits for various conveyor belt, such as EP, Rubber, Nylon, Canvas and Steel cord belt, etc.
The belt vulcanizer is dependable, lightweight and portable machine, which is widely used in the field of metallurgy, mining, power plants, ports, building materials, cement, coal mine, chemical industry, etc. Heating plates are available for rhombic, rectangular and modular type (two or more sets of heating plates together).

Package of All In One Automatic Air Cooling PVC Belt Splice Press Machine
We will use film to wrap the machine. then put into wooden box. The normal package is wooden box.(Fumigation treatment).
