24V 7.2W 660 LM SMD3030 LED Strip Light Kit For Sign Lighting , Rigid Led Strips
24V 7.2W 660 LM SMD3030 LED Strip Light Kit For Sign Lighting , Rigid Led Strips
24V 7.2W 660 LM SMD3030 LED Strip Light Kit For Sign Lighting , Rigid Led Strips
24V 7.2W 660 LM SMD3030 LED Strip Light Kit For Sign Lighting , Rigid Led Strips
Specifications
Brand Name :
MAGY VOLAT
Model Number :
MJ-BSL-02
Certification :
CE ROHS
Place of Origin :
China
MOQ :
50
Price :
Different quantity with different price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30000M/DAY
Delivery Time :
7-15DAYS
Packaging Details :
5M/ROLL
Item Type :
LED Modules kits
Lumen :
660-720lm
Material :
Epoxy Waterproof&Alumunim PCB
Working Temperature :
-20 ~ 50
Voltage :
24V
Description

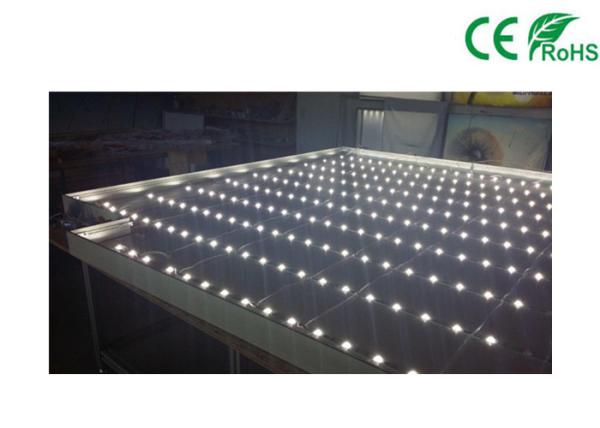

24V 7.2W 660LM SMD3030 LED Modules strips for Sign Lighting, rigid led strips for single box sign

Product feature

1. Powered by original Nichia/ Osram 1.0Watt LED.

2. Wide viewing angle with even light output: 175 degrees

3. Backlighting to light boxes whose depth is 35~100mm.
4. Energy saving on lightbox illumination owing to wide angle.
5. Cost effective concerning installation and wiring diagram.
6. Lower light decay and long life span up to 35000 hours.
7. Waterproof, IP65, ideal for outdoor use.
8. Color uniformity is good. All looks the same white/warm white.
9. Easy installation to make it cost effective.

Remark:

For internal illumination of channel letters or lightbox whose depth is 30mm to 100mm, cove lighting and edge lighting, long life span with lower power consumption, outdoor use. Rated operating current is 150mA and rated power consumption is 0.5Watt with light flux at 56 lumens. Total light output of the module is 120~135 lumens. Powered by Osram or NICHIA SMD3030 1WLED.

Electrical characteristics:

Emitting Color White
Led Number 6pcs SMD3030 1W LEDs
Shell Material Epoxy Waterproof &Aluminum PCB
Driven By constant voltage
Ip Grade IP 65
Positioning screw& 3M autoadhesive tape
Beam Angle 175degree(Customized Lens)
Luminous 660~720LM

Application

a. Widely Used in Household Lighting.
b. Backlighting for Advertisement ,Signboard and Billboard.
c. Backlighting for Lightingbox .
d. Signal Lamp for mini & slim Letter Channel.
e. Emergency / rescue signs
f. Edge lighting of transparent diffused materials

24V 7.2W 660 LM SMD3030 LED Strip Light Kit For Sign Lighting , Rigid Led Strips24V 7.2W 660 LM SMD3030 LED Strip Light Kit For Sign Lighting , Rigid Led Strips

FAQ

1) What are the best selling products in Magy Volat?

- LED Strip Light (3528 led strip light , led rigid bar, 5050 rgb led strip light ,customized led rigid bar for ceiling light )

-- Customized all kinds of strip

- LED flex neon light

- Aluminum LED Profiles

- Controllers&Remote

- Power Supply

- Connector

2) Can I have free samples?

We provide some free sample if customers have detail requirement , also we have promiton prodcuts for customers , 1- 5 Meters samples are available ,If need free sample,

please contact us freely .

3) Do you have warranty for products?

Yes, we have 2 years , 3 and 5 years warranty for different kinds of smd led light strip. During the period, if customers have the approval showing product quality issues and if certified by our engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.
