C17300 Beryllium Copper Rod Alloy 2mm - 8mm For Automotive DIN2.1248
C17300 Beryllium Copper Rod Alloy 2mm - 8mm For Automotive DIN2.1248
C17300 Beryllium Copper Rod Alloy 2mm - 8mm For Automotive DIN2.1248
C17300 Beryllium Copper Rod Alloy 2mm - 8mm For Automotive DIN2.1248
Specifications
Brand Name :
CUBERYLLIUM
Model Number :
C17300
Certification :
ISO ROHS
Place of Origin :
China
MOQ :
30kg
Price :
USD 30～50/KG
Payment Terms :
L/C, T/T, MoneyGram
Supply Ability :
50T/Month
Delivery Time :
10~15 working days
Packaging Details :
Packed with waterproof paper or woven bag, then put it into wooden box or pallets.
Name :
DIN2.1248 Beryllium Copper Alloy Rod C17300 2mm-8mm For Automotive Manufacturing
Grade :
C17300
Standard :
AMS 4650,4651,4533,4534
Machining Property :
Good
Diameter :
2mm~8mm
Typical Application :
Automotive Manufacturing
Shape For Available :
Round,Rectangle
Surface :
Bright,Polished
State :
A(TB00), H(TD04), AT(TF00)
Length :
3000mm
Density :
8.36g/cm3
Safe Handling :
No Special Health Risk.
Description

DIN2.1248 Beryllium Copper Alloy Rod C17300 2mm-8mm For Automotive Manufacturing

Product Specification:

Name

DIN2.1248 Beryllium Copper Alloy Rod C17300 2mm-8mm For Automotive Manufacturing

Standard

ASTM B194,B196

AMS 4650,4651,4533,4534

MILITARY MIL-C-21657

SAE J463,J461

Diameter

1mm~30mm

Length

1000mm-6000mm or as required

Export to

Indonesia,Ukraine,USA,Brazil,Thailand,VietNam,Korea,lndia,

Egypt.Dubai,Kuwait,Malaysia,Russia,Australia,etc

Package

Packed with waterproof paper or woven bag, then put it into wooden box or pallets.

MOQ

30Kg

Application

Copper bar can be made as all kindsof deeping drawing and bending str-ess components,Such as pin, rivetswashers, nuts, ducts, air gauge, screenmesh, radiator parts, etc.

Parts with medium strength and high conductivity, such as fuse links, springs, connectors, resistance spot welding heads, seam welding rollers, die casting machines, plastic molding molds, etc

Electrical Industry: Switch Parts, Relay parts, Electrical Connectors, Fuse Clips, Contact Bridges, Electrical Motor Components, Navigational Instruments, Electrical Switch and Relay Blades.

Advantages:

1. The surface of the product is smooth and flat without rust, scratch, delamination, pinhole and bubble.

2. We have professional production equipment and use vacuum Semi- Continuous Furnace for melting, which can obtain the Cast ingot without gas,smaller segregation, Grain Refinement.

3. Various Types of Specifications. Multiple specifications optional, support customized.

Detailed Specifications:

Bar/Rod Diameter:1.0-200mm Length:1000-6000mm
Sheet/Plate Thickness:0.2-100mm Width:100-1000mm Length:1000-2000mm
Strip/Tape Thickness:0.01-2.0mm Width:4-1000mm
Pipe/Tube Thickness:0.1-100mm OD:1-600mm

Lead Time:

Quantity(kilograms) 1 - 50 51 - 100 >100
Est. Time(days) 7 15 To be negotiated

Service:

1) Timely Delivery: All inventory products can be delivered in time.

2) Customer service replied in a timely manner, and problems were solved in time.

Mechanical and Electrical Properties:

Temper(*) Diameter Heat Treatment Tensile Strength ksi

Elogation Percent

(Min)

Electrical Conductivity Percent

IACS

 Hardness Rockwell B or C Scale
A(TB00) ALL SIZE / 400~600 30 15~19 B45~85

H(TD04)		 5~10 / 660~900 5 15~19
＞B88
＞10~25 / 620~860 5 15~19
＞25 / 590~830 5 15~19
AT(TF00) ALL SIZE 3 hr 320°C 1100~1380 2 22~28 C35~42
HT(TH04) 5~10 2 hr 320°C 1200~1550 1 22~28 C37~45
＞10~25 1150~1520 1 22~28 C36~44
＞25 1120~1480 1 22~28 C35~44

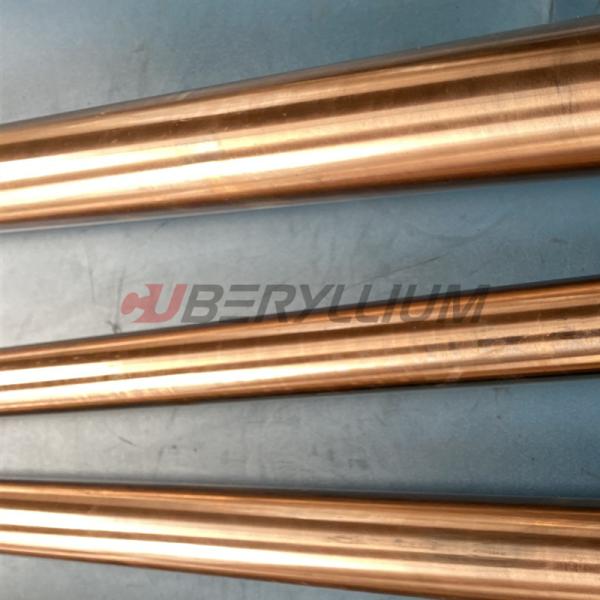

Product Photos:

C17300 Beryllium Copper Rod Alloy 2mm - 8mm For Automotive DIN2.1248

Alloy M25 can be supplied in the form of bar or wire based on different design needs. Also there are different supply states for customers to choose according to different needs. C17300 also has good welding performance, wear resistance and adhesion resistance. It can be forged into parts of various shapes. Beryllium copper c17300 has better strength and wear resistance than chromium zirconium copper alloy.

FAQ:

1. How can I contact with your company?

We are always ready to serve you via Email, Telephone, Fax, Whatsapp or Mobile telephone.
Mobile/Wechat/Whatsapp: +86-17376550856

Email:info@cuberyllium.com

2. What is the lead time?

Usually 7 days after payment has been confirmed.

3. What is your payment terms?

T/T,L/C,Western Union,MoneyGram,Paypal.

4. What’s your advantage?

1) Professional production equipment.

2)Smooth surface.

3) Complete specification.
