JIS C172 BeCu Beryllium Copper Wire TD01 TB00 For Springs,Automobile

Physical Properties:

Density (g/cm3): 8.36
Elastic Modulus (GPa): 131

Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17.5×10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980 °C

Typical Applications:

1)Relay Blades, Fuse Clips, Switch Parts, Relay parts

2)Connectors, Spring Connectors, Contact Bridges
3)Washers, Fasteners, Lock Washers, Retaining Rings, Roll Pins, Screws, Bolts
4)Pumps, Springs, Electrochemical, Shafts, Non Sparking Safety Tools

5)Flexible Metal Hose, Housings for Instruments, Bearings, Bushings, Valve Seats, Valve Stems, Diaphragms, Springs, Welding Equipment

6)Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Wear Plates on Heavy Equipment, Bellows

Chemical Composition:

Be: 1.85-2.10%
Co+Ni: 0.20% Min.
Co+Ni+Fe: 0.60% Max.
Cu: Balance
Note: Copper plus additions equal 99.5% minimum.

International Specification of C17200 Beryllium Copper Alloy:

Note:

ASTM: American Society for Testing and Materials

SAE: Society of Automotive Engineers

AMS: Aerospace Materials Specification(Published by SEA)

RWMA: Resistance Welder Manufacturers' Association

Note: Unless otherwise specified, material will be produced by ASTM.

Mechanical and Electrical Properties of C17200 Beryllium Copper Wire:

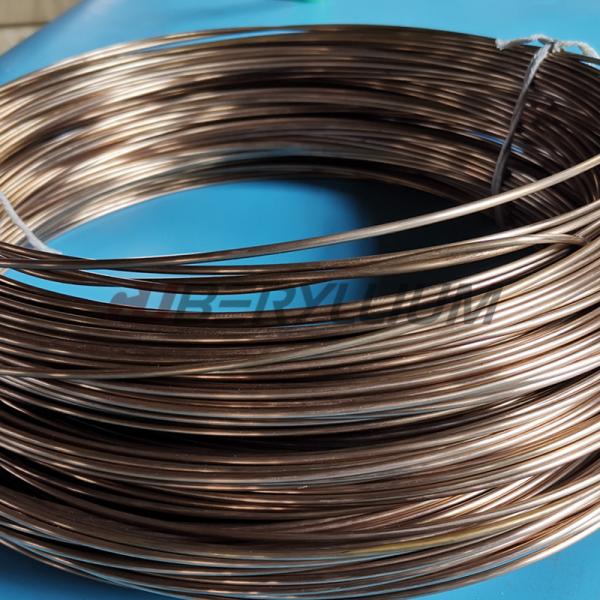

Product Photos:

CUBERYLLIUM®-172 is the most commonly specified copper beryllium ,In its age hardened condition, CUBERYLLIUM®-172 attains the highest strength and hardness of any commercial copper base alloy. The ultimate tensile strength can exceed 1360Mpa(200 ksi), while the hardness approaches Rockwell C45. Also, in the fully aged condition, the electrical conductivity is a minimum of 22% IACS (International Annealed Copper Standard). Alloy 172 also exhibits exceptional resistance to stress relaxation at elevated temperatures.

More Products:

More range of copper and copper alloys, in full series of shapes: Sheet, Bar, Tubes, Strips and Wire list as below:

C17000/170 (CuBe1.7, 2.1245, Alloy165)
C17200/172 (CuBe2, 2.1247, Alloy25)
C17300/173 (CuBe2Pb, 2.1248, AlloyM25)
C17500/175 (CuCo2Be, 2.1285, Alloy10)
C17510/1751 (CuNi2Be, 2.0850, Alloy3)

FAQ:

Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?

A1: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q2: Why you melting by Vacuum semi-Continuous Furnace?
A2:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement.

Q3:Could you produce Beryllium Copper strip by Mill Hardened process?
A3:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.
