UNS.C17300 Leaded Beryllium Copper Rods Used In Electrical Industry And Industrial

Product Description:

Name: Leaded beryllium copper rods

Grade: C17300

End Product Form: Rods/ Bars

Standard: ASTM B196, QQ-C-530

State of product: A(TB00),H(TD04),AT(TF00),HT(TH04)

Processing: Seamless / Welding

Feature: With high strength and high conductivity

Package: Pack in coil+waterproofing winding film+Drier+Wooden Case

Specification: Length: according customers' requirement

Beryllium copper has its reasonable share of common names. You will listen referred to as BeCu, Copper Beryllium, Beryllium Bronze, and Spring Copper. Anytime you hear those terms, they're in reference to Beryllium Copper. Beryllium round bars are accessible as high strength and high conductivity alloys.

Introduction of UNS.C17300 Leaded Beryllium Copper Alloys:

C17300 copper is a lightly alloyed grade of copper, formulated for primary forming into wrought products. CW102C is the EN numeric designation for this material. C17300 is the UNS number. Additionally, the EN chemical designation is CuBe2Pb.

It has a moderately low electrical conductivity among wrought coppers. In addition, it has a moderately low melting temperature and can have a moderately high tensile strength.

Chemical Composition of UNS.C17300 Leaded Beryllium Copper Alloys:

Note: Copper plus additions equal 99.5% minimum.

Typical Physical Properties of UNS.C17300 Leaded Beryllium Copper Alloys:

Density: 8.36g/cm3

Density before age hardening: 8.25g/cm3

Melting Range: 870~980℃

Elastic Modulus((kg/mm2 (103)): 13.4

Thermal Expansion Coefficient(20 °C to 200 °C m/m/°C): 17 x 10 -6

Thermal Conductivity(cal/(cm-s-°C)): 0.25

Mechanical and Electrical Properties of UNS.C17300 Leaded Beryllium Copper Rods:

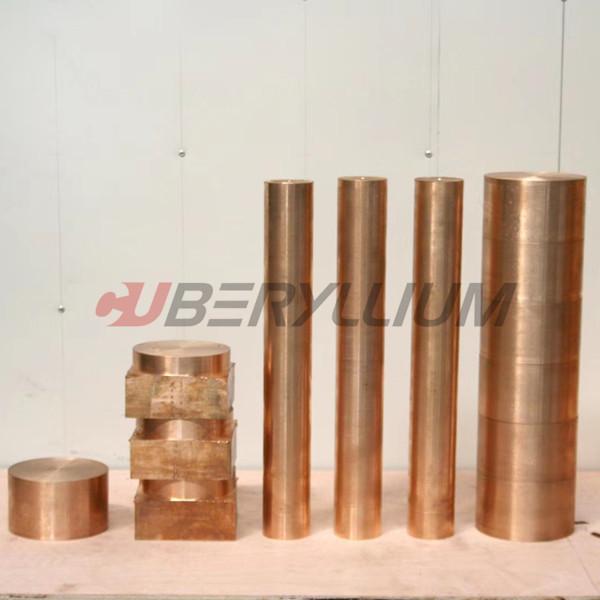

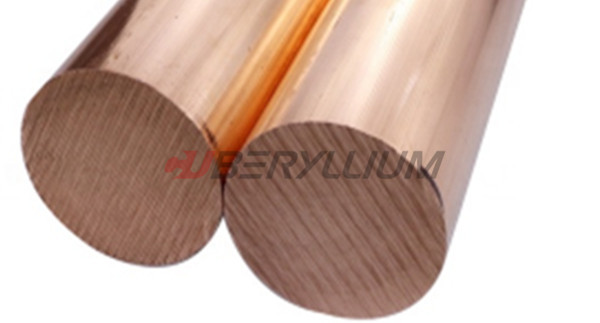

Product Photo:

UNS.C17300 Leaded Beryllium Copper Alloys International Specification:

Rods/Bars/Tubes: ASTM B196, QQ-C-530

Wires: ASTM B197, QQ-C-530

European Standards: CuBe2Pb, Alloy M25, UNS.C17300, DIN.2.1248, CW102C to EN

Note:

ASTM: American Society for Testing and Materials

SAE: Society of Automotive Engineers

AMS: Aerospace Materials Specification(Published by SEA)

RWMA: Resistance Welder Manufacturers' Association

Note: Unless otherwise specified, material will be produced by ASTM.

Typical Applications for UNS.C17300 Leaded Beryllium Copper Alloys:

Electrical Industry: Switch Parts, Relay parts, RF Coaxial Connector, Contact Bridges, Electrical Connectors, Fuse Clips, Electrical Motor Components, Navigational Instruments, Electrical Switch and Relay Blades.
Industrial: Bushings, Welding Equipment, Non-Sparking Safety Tools, Shafts, Springs, Rolling Mill Parts, Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Bellows, Electrochemical Springs, Flexible Metal Hos

Key Technology of Beryllium Copper(Heat treatment)

Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.

FAQ:

Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?

A1: 1: The Biggest Coil weight could be reach 1200kg/Coil.

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q2: How about your payment terms?
A2: Generally, 30% as deposit by T/T, then 70% should be paid before the delivery.

Q3: Why you melting by Vacuum semi-Continuous Furnace?
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
