Specifications
Brand Name :
Solaraonc
Model Number :
B10
Place of Origin :
Jiangsu China
Delivery Time :
30 working days
Payment Terms :
TT
Certification :
CE/TUV/UN38.3
Safety Features :
Overvoltage Protection, Overcurrent Protection, Overtemperature Protection, Short Circuit Protection
Capacity :
5kWh-100kWh
Weight :
100kg
Monitoring :
Remote Monitoring
Dimensions :
600mm X 600mm X 1200mm
Battery Type :
Lithium-ion
Efficiency :
Up To 98%
Warranty :
10 Years
Description

100kw Smart Energy Storage System Up 98% Efficiency for home and Commercial use

100kw Smart Energy Storage System Up 98% Efficiency for home and Commercial use

  • Product Name: All In One ESS
  • Operating Temperature: -10°C To 50°C
  • Capacity: 5kWh-100kWh
  • Dimensions: 600mm X 600mm X 1200mm
  • Warranty: 10 Years
  • Battery Type: Lithium-ion
  • With inverter
  • Solar energy system
  • With inverter charger
100kw Smart Energy Storage System Up 98% Efficiency for home and Commercial use

100kw Smart Energy Storage System Up 98% Efficiency for home and Commercial use

Product Introduction
Brand Name: Solaraonc

The Solaraonc All In One ESS (Energy Storage System) is a revolutionary product that combines the latest technology in solar energy systems and energy storage. Designed and manufactured in Jiangsu, China, our ESS is built with efficiency and sustainability in mind.

Model Number: B10

The B10 model is the newest addition to our ESS lineup, featuring advanced features and improved performance. With its compact size and powerful capabilities, the B10 is perfect for both residential and commercial use.

Place of Origin: Jiangsu, China

All Solaraonc ESS products are proudly made in Jiangsu, China. Our state-of-the-art facility and skilled team ensure that every product meets the highest quality standards.

Delivery Time: 30 Working Days

At Solaraonc, we understand the importance of timely delivery. That's why we guarantee a delivery time of 30 working days for all our ESS products. We strive to provide our customers with a seamless and hassle-free experience.

Payment Terms: TT

We accept payment through TT (Telegraphic Transfer) to ensure a secure and convenient transaction process for our customers.

Product Features
Remote Monitoring

Our ESS comes with a built-in remote monitoring system, allowing users to monitor their energy usage and system performance from anywhere in the world. With real-time data and notifications, you can stay informed and in control of your energy consumption.

Operating Temperature: -10°C to 50°C

The Solaraonc ESS is designed to withstand a wide range of temperatures, from -10°C to 50°C. This makes it suitable for use in various climates and ensures optimal performance even in extreme conditions.

Battery Type: Lithium-ion

Our ESS uses advanced lithium-ion batteries, known for their high energy density and long lifespan. This makes our ESS more efficient and reliable compared to traditional lead-acid batteries.

Dimensions: 600mm x 600mm x 1200mm

The compact size of our ESS makes it easy to install in any space, whether it's a residential rooftop or a commercial building. Its dimensions of 600mm x 600mm x 1200mm make it suitable for both indoor and outdoor use.

Efficiency: Up to 98%

With advanced technology and high-quality components, our ESS boasts an efficiency rate of up to 98%. This means you can save more on your electricity bill and reduce your carbon footprint, making it an environmentally-friendly choice.

Product Applications

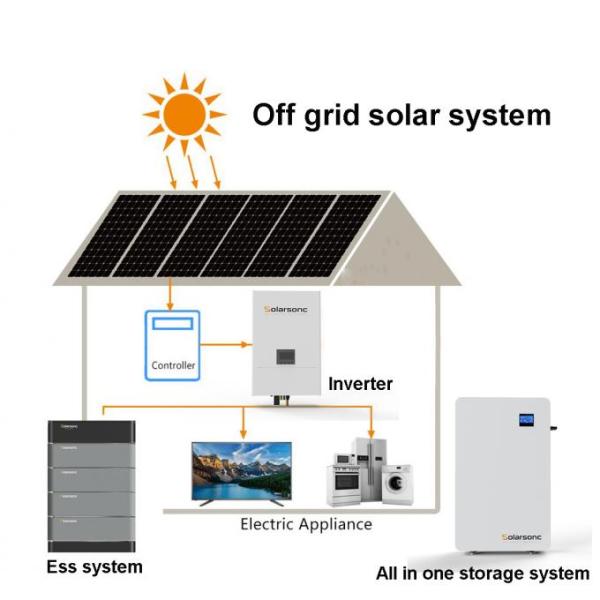

Rooftop Solar Energy System

The Solaraonc ESS is the perfect companion for rooftop solar energy systems. It stores excess energy generated by solar panels during the day, allowing you to use it at night. This not only helps you save on your electricity bill but also promotes the use of renewable energy.

Home Energy Storage

Our ESS is also ideal for home energy storage. With its compact size and easy installation, it can be easily integrated into your home's electrical system. You can store excess energy from the grid or from renewable sources and use it when needed, reducing your reliance on traditional energy sources.

Commercial Energy Storage

For commercial buildings and businesses, our ESS can help reduce energy costs and improve efficiency. It can be used in conjunction with solar panels or connected to the grid to store excess energy during off-peak hours. This can result in significant savings on electricity bills for businesses.

Conclusion

The Solaraonc All In One ESS offers a comprehensive solution for storing and managing energy. With its advanced features, compact size, and high efficiency, it is the perfect choice for those looking to save on their electricity bill and promote the use of renewable energy. With easy installation and remote monitoring, it is a convenient and sustainable option for both residential and commercial use.

100kw Smart Energy Storage System Up 98% Efficiency for home and Commercial use

odel Enerhi-B10
Battery type LFP Voltage Range 44.8V~57.6V
Configuration 2P16S Rated Charging Current 100A
Rated Voltage 51.2V Max. Charging Current 120A
Bated Capacity 200Ah Rated Discharging Current 100A
Bated Energy 10.24kWh Max. Discharging Current 120A
PV Parameters
Max. PV Generation Power 6500W Max. Short Circuit Current 13.8/13.8A
Max.DC Voltage 580V MPPT Voltage Range 125~550V
Rated DC Operating Voltage 360V MPPT Number 2
Max. PV Input Current 11/11A
On-Grid Parameters
On-Grid Rated Power 5000VA On-Grid Rated Current 21.7A
On-Grid Rated Voltage 230V Max. AC Current 24.5A
On-Grid Rated Frequency 50/60Hz Power Factor 0.8 lead~0.8 lag
Electrical Connection L/N/PE THD <3%
Parallel Operation NO
Off-Grid Parameters
Off-Grid Rated Power 4600VA
Off-Grid Rated Voltage 230V
Off-Grid Rated Frequency 50/60Hz
Electrical Connection LN/PE
Max. Protection Current 30A
Max. Short Circuit Current 43A(10s)
Peak Power 6900VA(3s)
UPS Switching Time <0.5S
Operating Conditions
Ambient Temperature Charge/Discharge:0~55℃
Humidity 5~95%, no condensing
Altitude ≤2000m
Mounting Floor standing
General Parameters
Weight 160kg
Dimensions (W*D*H) 700*212*1320mm
Protection Rating IP65
Cooling Natural cooling
Cycle Life ≥6000 cycles(@25±2℃,0.5C/0.5C,90%DOD,70%EOL)
Certifications IEC62619, UL1973, UL9540, UN38.3,CE
The above parameters are subject to change without further notice, and the actual product shall prevail.

100kw Smart Energy Storage System Up 98% Efficiency for home and Commercial use

All In One ESS Customized Service - Solaraonc

Brand Name: Solaraonc

Model Number: B10

Place of Origin: Jiangsu China

Delivery Time: 30 working days

Payment Terms: TT

Inverter Type: Grid-tied

Dimensions: 600mm X 600mm X 1200mm

Warranty: 10 Years

Charging Method: AC/DC

Capacity: 5kWh-100kWh

Introducing the All In One ESS by Solaraonc, the ultimate solar energy system that combines efficiency, convenience and sustainability. With our customized service, you can create a personalized system that meets your specific needs and requirements.

Our brand, Solaraonc, guarantees high-quality products that are manufactured in our factory in Jiangsu China. We understand the importance of prompt delivery, which is why we offer a delivery time of only 30 working days.

For payment, we accept TT to ensure a secure and hassle-free transaction. Our inverter type is grid-tied, providing you with a seamless connection to your local power grid.

The dimensions of our All In One ESS are 600mm X 600mm X 1200mm, making it compact and easy to install in any location. You can trust in the durability and longevity of our product as we offer a 10-year warranty.

With our All In One ESS, you can charge using both AC and DC methods, giving you the flexibility to choose the most convenient option for your energy needs. Our system also has a capacity of 5kWh-100kWh, providing you with enough energy to power your home or business.

Choose Solaraonc and experience the benefits of an all in one solar energy system with our customized service. Contact us now to start your journey towards sustainable and efficient energy solutions.

100kw Smart Energy Storage System Up 98% Efficiency for home and Commercial use

100kw Smart Energy Storage System Up 98% Efficiency for home and Commercial use

All In One ESS Technical Support and Services

Welcome to All In One ESS Technical Support and Services! Our goal is to provide you with the best technical support and services for our all-in-one energy storage solution. We are dedicated to ensuring that your experience with our product is smooth and hassle-free.

Technical Support

Our technical support team is available 24/7 to assist you with any technical issues or questions you may have. You can reach us through phone, email, or our online support portal. Our knowledgeable and experienced team will guide you through troubleshooting steps and provide solutions to any problems you encounter.

Installation and Setup Services

To ensure that your All In One ESS is installed and set up correctly, we offer professional installation and setup services. Our team of experts will handle the entire process, from site assessment to system configuration, to ensure that your ESS is up and running efficiently.

Training and Education

We believe that knowledge is key to maximizing the benefits of our product. That's why we offer training and education services for our customers. Our team will provide you with in-depth training on how to use and maintain your All In One ESS, as well as educate you on the latest updates and features.

Maintenance and Support

We offer ongoing maintenance and support services to keep your All In One ESS running smoothly. Our team will regularly monitor and maintain your system to ensure optimal performance. We also provide support for any issues or questions that may arise during the lifetime of your ESS.

Thank you for choosing All In One ESS. We are committed to providing you with top-notch technical support and services to help you make the most out of our product. Feel free to contact us for any assistance, and we will be happy to help.

.
